IMBA-H110

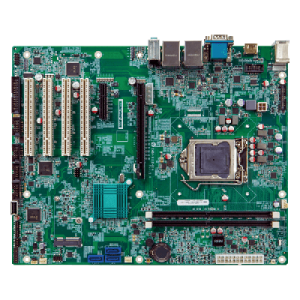

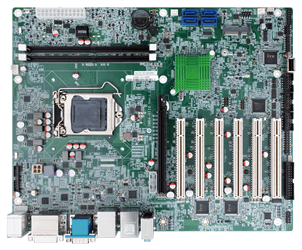

The IMBA-H110 is an ATX motherboard. It accepts a Socket LGA1151 Intel® Core™ i7/i5/i3, Pentium® or Celeron® processor and supports two 288-pin 2133 MHz dual-channel DDR4 DIMMs up to 64 GB.

  • LGA 1151 Intel® 6th/7th generation Core™ i7/i5/i3, Pentium® or Celeron® processor supported
  • Dual-channel DDR4 2133 MHz
  • Support dual displays with DVI-I/HDMI+DP/iDP
  • Support USB 3.0 and SATA 6Gb/s
  • IEI One Key Recovery solution allows you to create rapid OS backup and recovery

The IMBA-H110 provides two GbE interfaces through the Intel® I219LM and the Intel® I211 PCIe controllers. The integrated Intel® H110 chipset supports four SATA 6Gb/s drives. In addition, the IMBA-H110 includes HDMI, DVI-I and iDP interfaces for dual independent display.

Expansion and I/O include six PCI slots, one PCIe x16 slot, one PCIe Mini slot with mSATA support, four USB 3.2 Gen 1 (5Gb/s) and two USB 2.0 on the rear panel, two USB 2.0 by pin headers, one USB 2.0 by internal Type A connector, four RS-232 and one RS-232/422/485. High Definition Audio (HDA) support ensures HDA devices can be easily implemented on the IMBA-H110.

IMBA-H110-R10: ATX Motherboard supports 14nm LGA1151 6th Generation Intel® Core i7/i5/i3, Celeron® and Pemtium® processor , DDR4, Dual Independent Displays DVI-I/HDMI/iDP, Dual®Intel GbE LAN, USB 3.0, SATA 6Gb/s, HD Audio and RoHS
