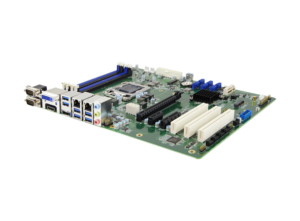

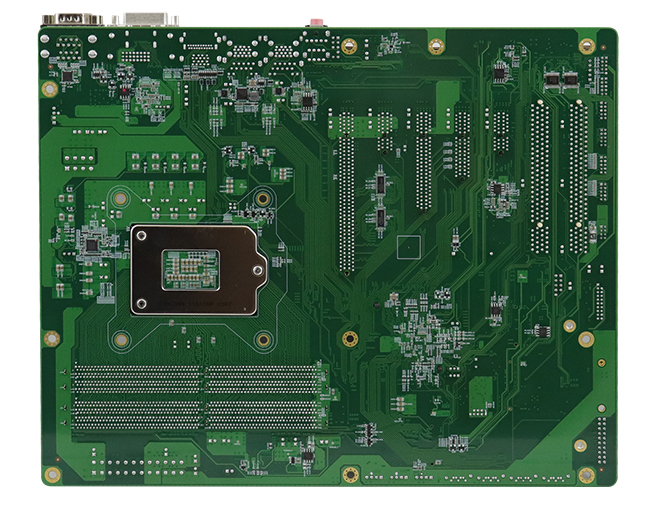

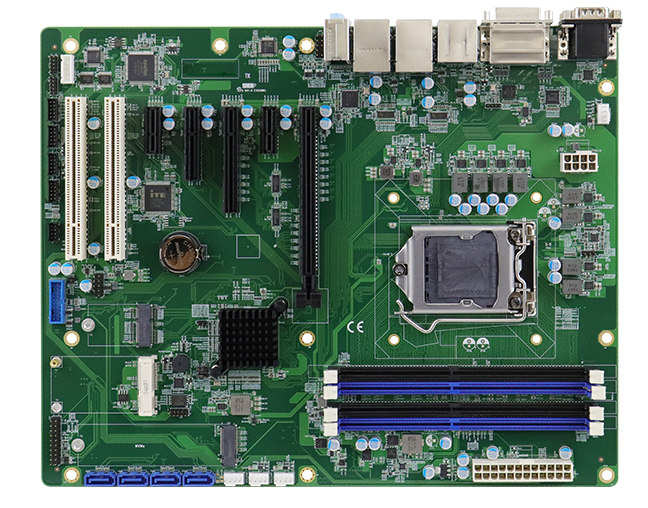

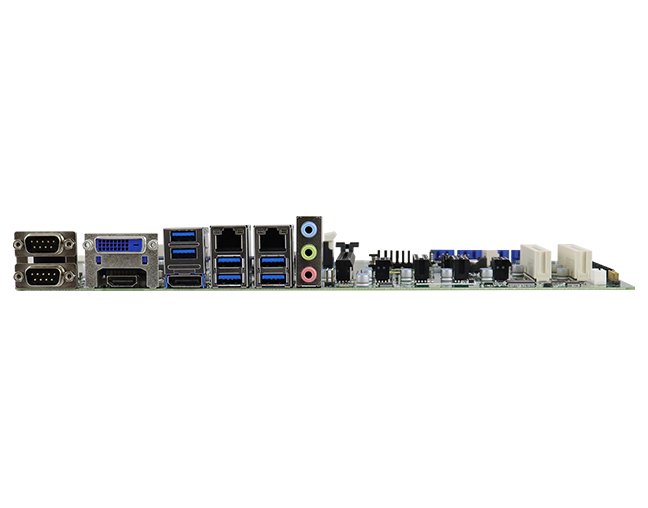

MB997

The MB997 ATX motherboard is powered by 9th Gen Intel® Core™ i7/i5/i3 and Xeon® processors. It is designed for diverse applications, such as industrial automation, AI integrated systems, and smart retail systems. The MB997 delivers high-performance computing for demanding industrial applications while providing multiple connectivity, expansion and functionality to meet customer requirements.

  • 9th Gen Intel® Xeon® E / Core™ i7/i5/i3 Processors
  • 4x DDR4 DIMM, Max.128GB
  • Intel® Processor Integrated Graphics Supports HDMI(2.0a), DVI-D, and DisplayPort
  • Dual Intel® Gigabit LAN
  • 1x PCI-E(x16), 1x PCI-E(x8)(Gen3.0), 1x PCI-E(x4), 2x PCI-E(x1), 2x PCI
  • Watchdog Timer, Digital I/O, iAMT (11.6), TPM(2.0), iSMART (4.0)

The board supports up to 7 expansion slots including 1x PCI-E(x16), 1x PCI-E(x8)/Gen3.0, 1x PCI-E(x4), 2x PCI-E(x1), and 2x PCI, as well as 6x USB3.1, 2x USB 2.0, 2x SATA 3.0, and 6x COM ports. It can handle up to 128GB DDR4 memory across four slots and support three independent outputs (HDMI 2.0a, DVI-D, and DisplayPort) with 4K resolution each.

The board is loaded with advanced features such as TPM (2.0) hardware-based security to ensure platform integrity, iSMART 4.0 technology that enables power saving, power on/off and power resumption, and also NVMe and CNVi interfaces that bring various performance improvements. Like all IBASE industrial motherboards, MB997 comes with strict revision control, modification control and long-term support. Operating systems supported are Win10 IoT Enterprise and Linux Ubuntu.

MB997AF-C246: LGA1151 C246 ATX Motherboard w/ HDMI, DisplayPort, DVI-D, dual Gigabit LAN, RAID, iAMT (11.6), TPM (2.0), iSMART (4.0)
MB997AF: LGA1151 Q370 ATX Motherboard w/ HDMI, DisplayPort, DVI-D, dual Gigabit LAN, RAID, iAMT (11.6), TPM (2.0), iSMART (4.0)
MB997EF: LGA1151 H310 ATX Motherboard w/ HDMI, DisplayPort, DVI-D, dual Gigabit LAN, TPM (2.0), EuP/ErP
