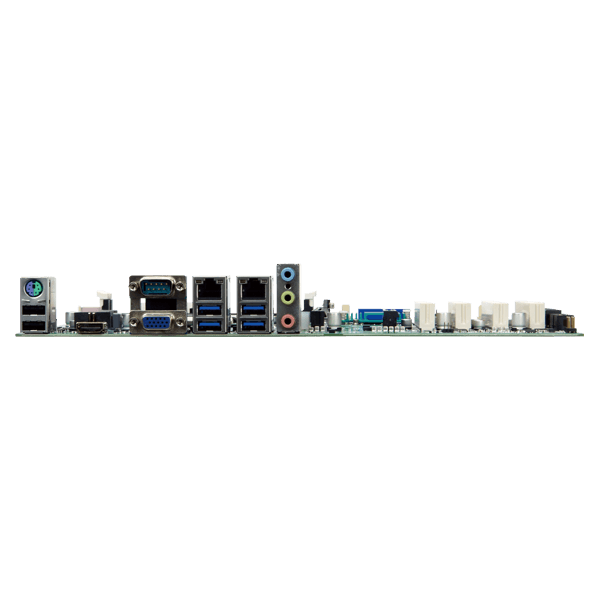

IMBA-H112

IMBA-H112 is an ATX Motherboard which supports a Socket LGA1151 Intel® Core™ i7/i5/i3, Pentium® or Celeron® Processor and two 288-pin 2133 MHz Dual-Channel DDR4 DIMMs up to 64 GB.

The IMBA-H112 provides two GbE interfaces through the Intel® I219LM and the Intel® I211 PCIe controllers. The integrated Intel® H110 chipset supports three SATA 6Gb/s drives. In addition, the IMBA-H112 includes HDMI, VGA and iDP interfaces for dual independent display.

  • LGA 1151 Intel® 6th/7th Generation Core™ i7/i5/i3, Pentium® or Celeron® Processor Supported
  • Dual-Channel DDR4 2133MHz
  • Support Dual Displays with VGA/HDMI/iDP
  • Support USB 3.2 Gen 1 (5Gb/s) and SATA 6Gb/s

IMBA-H112-ECO-R10: ATX Motherboard supports 14nm LGA1151 6th/7th Generation Intel® Core i7/i5/i3, Celeron® and Pentium® processor, DDR4, Dual Independent Displays VGA and HDMI, Dual Intel® GbE LAN, USB 3.2, SATA 6Gb/s, HD Audio, ECO packing and RoHS
IMBA-H112-R10: ATX Motherboard supports 14nm LGA1151 6th Generation Intel® Core i7/i5/i3, Celeron® and Pentium® processor, DDR4, Dual Independent Displays VGA and HDMI, Dual®Intel GbE LAN, USB 3.1, SATA 6Gb/s, HD Audio and RoHS
