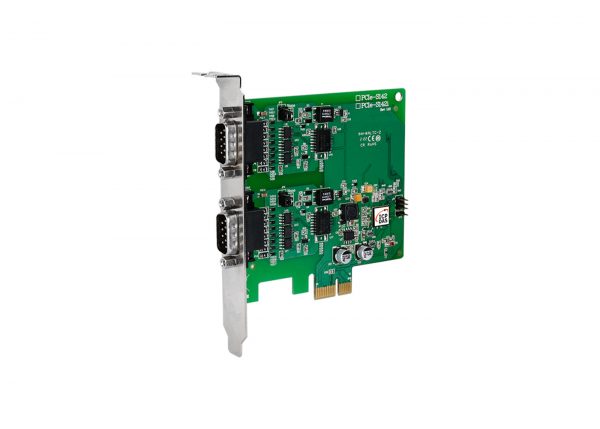

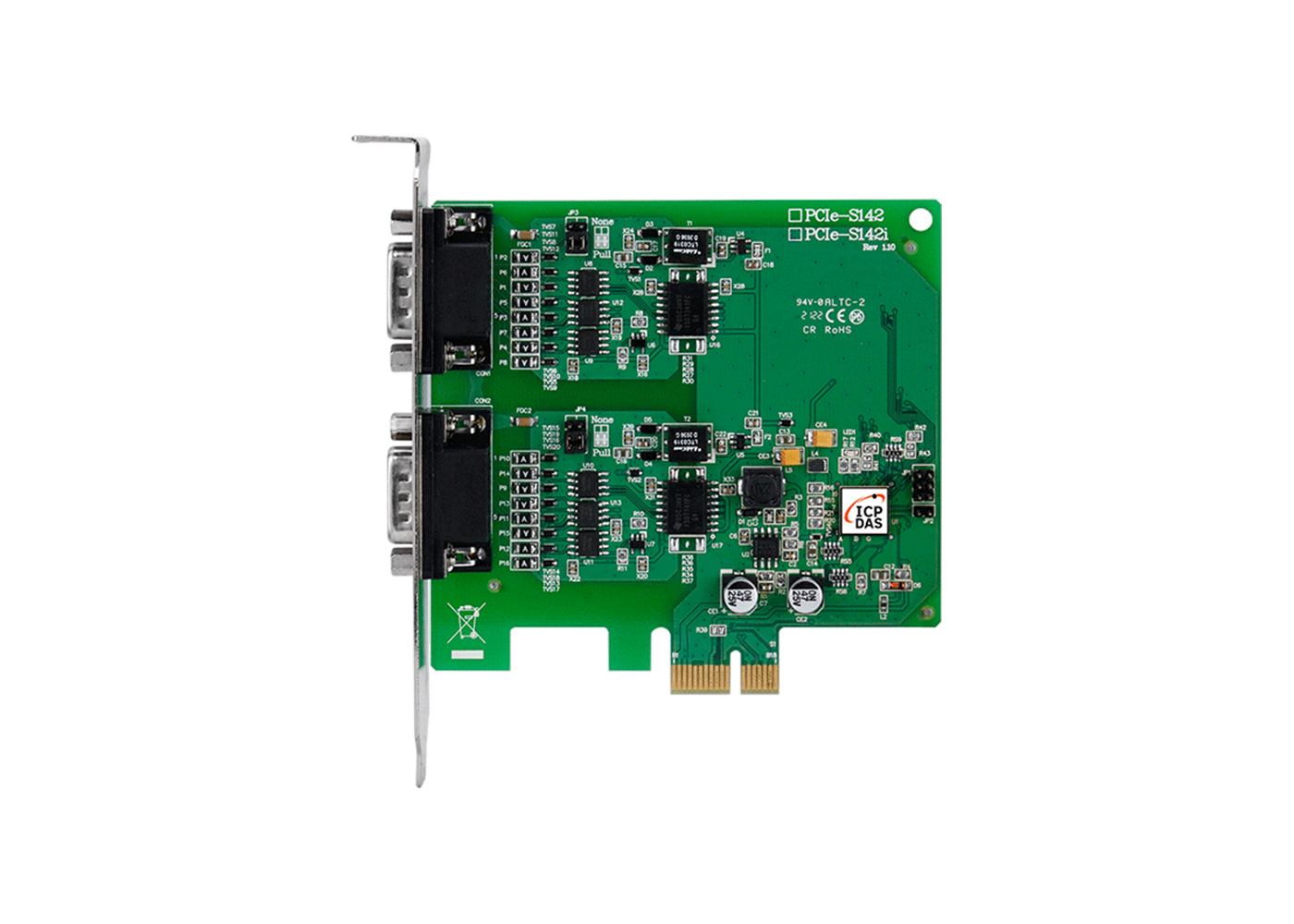

PCIe-S142i

PCI Express, Serial Communication Board with 2 Isolated RS-422/485 ports.

Key Features:

  • Supports PCI Express x1
  • Provides 2 RS-422/485 ports
  • 256-byte Hardware FIFO for Each Port
  • Transmission Speed of up to 921600 bps
  • 256 modules max. in one RS-485 network
  • Automatic RS-485 direction control
  • ±4 kV ESD Protection for i versions
  • 3000 VDC Isolation for i versions
  • Short Card Design
PCIe-S142i     CR  PCI Express, Serial Communication Board with 2 Isolated RS-422/485 ports (RoHS)
  • ICP DAS
