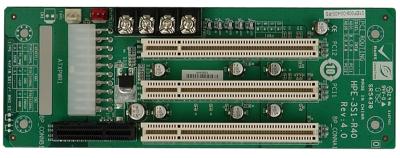

PCI/ PICOe Backplane Series

Supports PCI/PICOe Slot on one backplane

Features

• Support half-size PCI single board computers
• Support half-size PICOe single board computers
• The PICOe backplanes combine the PCI and the PCIe x4 or PCIe x1 to provide excellent I/O bandwidth and performance
• Compatible with all PICMG 1.0 Half-Sized PCI SBCs and PICOe SBCs

Ordering Information

HPE-3S1-R40: 3-slot backplane with 2 PCI slots

HPE-3S2-R40: 3-slot backplane with 1 PCI slot and 1 PCIe x4 slot

HPE-4S1-R40: 4-slot backplane with 3 PCI slots

HPE-5S2-R40: 5-slot backplane with 3 PCI slots and 1 PCIe x4 slot

HPE-5S3-R40: 5-slot backplane with 2 PCI slots and 2 PCIe x4 slots

HPE-6S1-R40: 6-slot backplane with 4 PCI slots and 1 PCIe x4 slot

HPXE-6S1-R10: 6-slot backplane with 2 PCI slots and 3 PCIe x4 slots

HPE-6S2-R40: 6-slot backplane with 3 PCI slots and 2 PCIe x4 slots

HPE-7S1-R40: 7-slot backplane with 4 PCI slots and 2 PCIe x4 slots

HPE-8S0-R40: 7-slot backplane with 4 PCI slots and 2 PCIe x4 slots
