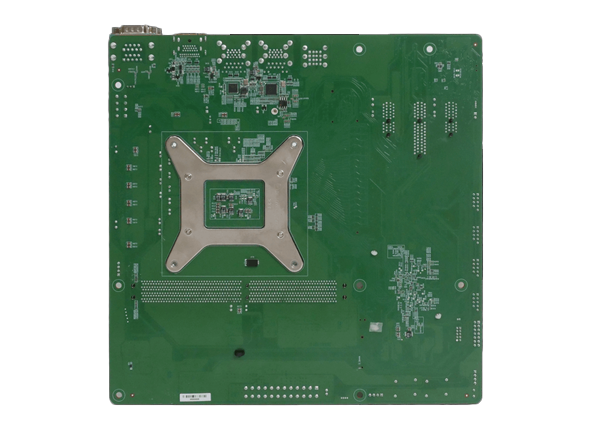

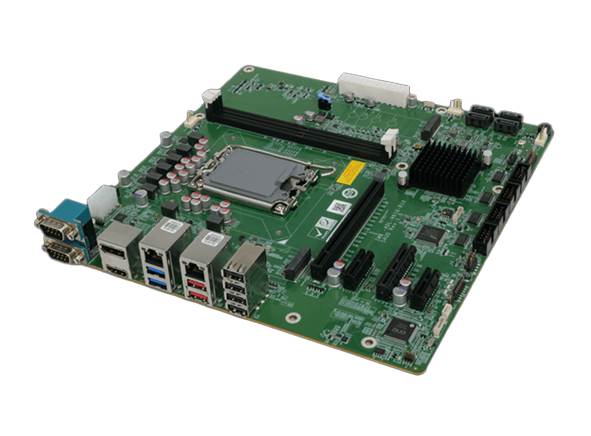

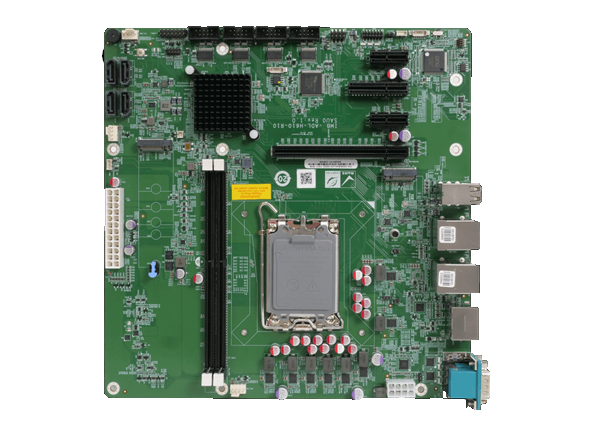

ICP Electronics Australia is proud to introduce iEi’s IMB-ADL-H610. IEI Technology Corp. has launched the IMB-ADL-H610, a microATX industrial motherboard that marks a significant advancement in the AIoT sector. This motherboard supports Intel® 12th and 13th Gen Core™ processors, including i9, i7, i5, i3, Pentium®, and Celeron® CPUs, ensuring compatibility with the latest high-performance chips. It’s designed to cater to the needs of edge computing, industrial automation, and AI projects in various domains such as retail, transportation, and surveillance.
The IMB-ADL-H610 can host up to 16 cores and 24 threads, providing a significant boost in performance compared to previous generations. It offers up to 1.36x faster single-thread and 1.35x faster multi-thread performance, enhancing AI and IoT capabilities. This makes it suitable for demanding applications that require robust processing power.
Integrated with Intel® UHD Graphics 770, the motherboard supports triple independent displays with stunning 4K resolution, utilizing HDMI™, DP, and iDPM interfaces. This feature is particularly beneficial for applications requiring high-quality visual output, such as digital signage, medical imaging, and advanced surveillance systems.

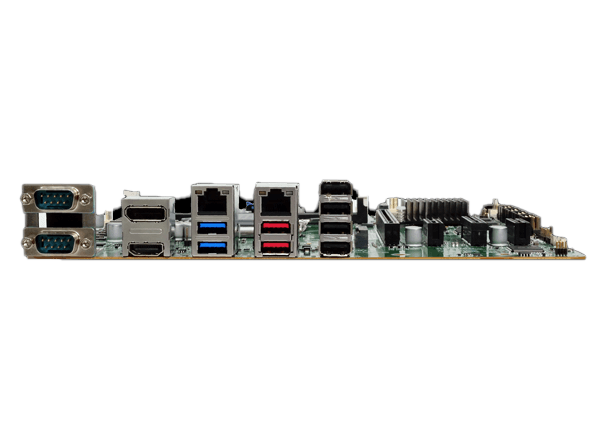

The motherboard includes a PCIe Gen4 x16 slot, additional PCIe slots, and dual M.2 M Key slots for NVMe SSDs, offering high-speed data transfer and expansion capabilities. It also features two USB 3.2 Gen 2 ports, six USB 2.0 ports, and four SATA 6Gb/s ports for extensive connectivity. This array of ports and slots makes it versatile for various industrial and IoT applications.
Equipped with Intel® I225V 2.5GbE Ethernet controllers, the IMB-ADL-H610 ensures low-latency and high-speed networking, ideal for applications involving large file transfers and high-resolution video streaming. This capability is crucial for modern IoT environments where fast and reliable data transmission is essential.
The IMB-ADL-H610 is built for AIoT applications, offering powerful computing performance, multi-display support, and flexible expansion options. It’s suitable for a range of applications, including data analysis, video surveillance, and medical imaging. The motherboard’s stability and reliability make it an ideal platform for AIoT edge development.
In summary, the IMB-ADL-H610 from IEI is a versatile and powerful motherboard that stands out for its support of the latest Intel® processors, high-performance graphics, and extensive connectivity options. It’s an ideal choice for businesses looking to leverage the power of AIoT in various industrial and commercial applications.
