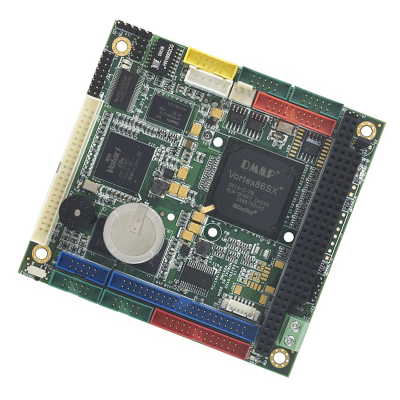

VSX-6153-V2 (300MHz)

SKU 3228

Features

  • DM&P SoC CPU Vortex86SX- 300MHz
  • PC/104 standard compliant
  • 128/256MB DDR2 onboard
  • Watchdog Timer, software programmable from 30.5 µsec. to 512 sec.
  • XGI Volari Z9s Chipset, onboard 32MB VGA Memory
  • CM119 USB Audio Controller (Optional)
  • Integrated 10/100Mbps Ethernet
  • Onboard 2MB SPI Flash Disk
  • Support Compact Flash Type I/II
  • Support MSTI EmbedDisk Module
  • 44-pin IDE to microSD (Optional)
  • Operation Temperature: -20°C ~ +70°C, -40°C ~ +85°C (Optional)

Ordering Information

VSX-6153-V2: Vortex86SX PC/104 CPU Module with 128MB DDR2

VSX-6153-V2-X: -40°C ~ +85°C Wide Operating Temperature
