- Intel® 22nm Atom™ or Celeron® on-board SoC supported
- Type 10 connector pinout according to COM.0 R2.1
- Supports 2GB 1066/1333 MHz DDR3L memory
- Optional soldered down 4GB SSD
- IEI One Key Recovery solution allows you to create rapid OS backup and recovery

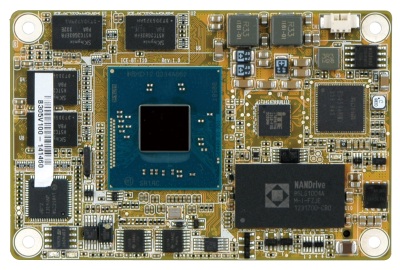

ICE-BT-T10
COM Express Rev 2.1 Mini Size Type 10 Module, Intel® 4th
Generation Atom™ Processor, VGA, DDI, GbE, SATA 3Gb/s,
USB and Audio, -40°C to +85°C and RoHS
See the Product PDF Datasheet for Full Specifications.
ICE-BT-T10-E38451W2-R10: COM Express Basic Type 10 module supports Intel® Atom™ processor E3845 (quad core, 10W), on-board 2 GB DDR3L, VGA, DDI, GbE, USB 3.1 Gen 1 (5Gb/s) SATA and HD Audio, -40°C ~ 85°C and RoHS
ICE-BT-T10-E38251W2-R10: COM Express Basic Type 10 module supports Intel® Atom™ processor E3825 (dual core, 6W), on-board 2 GB DDR3L, VGA, DDI, GbE, SATA, USB 3.1 Gen 1 (5Gb/s) and HD Audio, -40°C ~ 85°C and RoHS
ICE-BT-T10-E38451-R10: COM Express Basic Type 10 module supports Intel® Atom™ processor E3845 (quad core, 10W), on-board 2 GB DDR3L, vGA, DDI, GbE, USB 3.1 Gen 1 (5Gb/s) SATA and HD Audio, and RoHS
ICE-BT-T10-E38251-R10: COM Express Basic Type 10 module supports Intel® Atom™ processor E3825 (dual core, 6W), on-board 2 GB DDR3L, VGA, DDI, GbE, SATA, USB 3.1 Gen 1 (5Gb/s) and HD Audio, and RoHS
ICE-BT-T10-E38151-R10: COM Express Basic Type 10 module supports Intel® Atom™ processor E3815 (single core, 5W), on-board 2 GB DDR3L, VGA, DDI, GbE, SATA, USB 3.1 Gen 1 (5Gb/s) and HD Audio, and RoHS
ICE-DB-T10-R10: Baseboard for COM Express Type 1
