HTB-200-C236

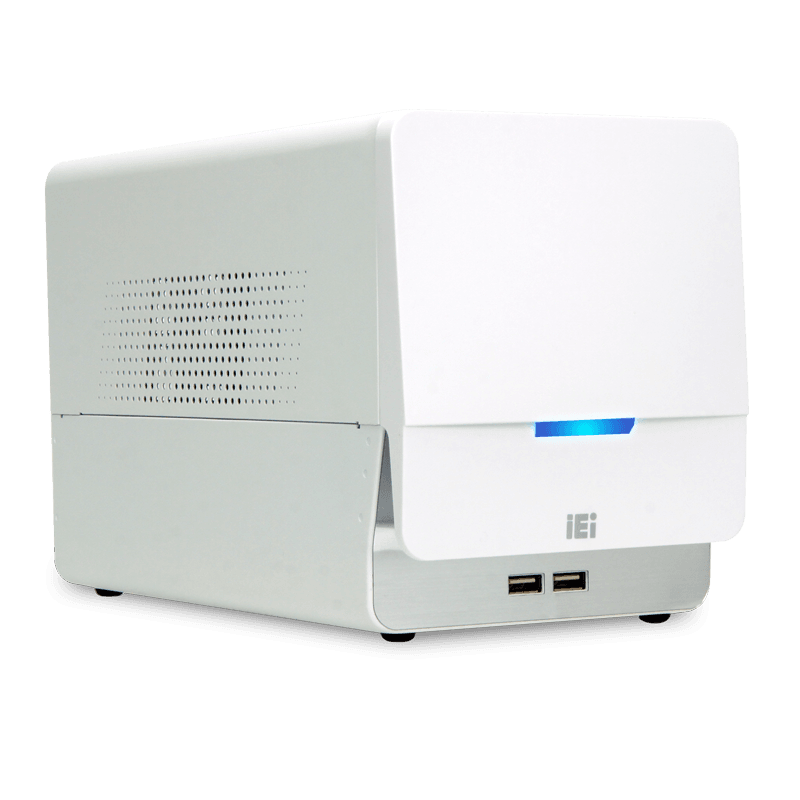

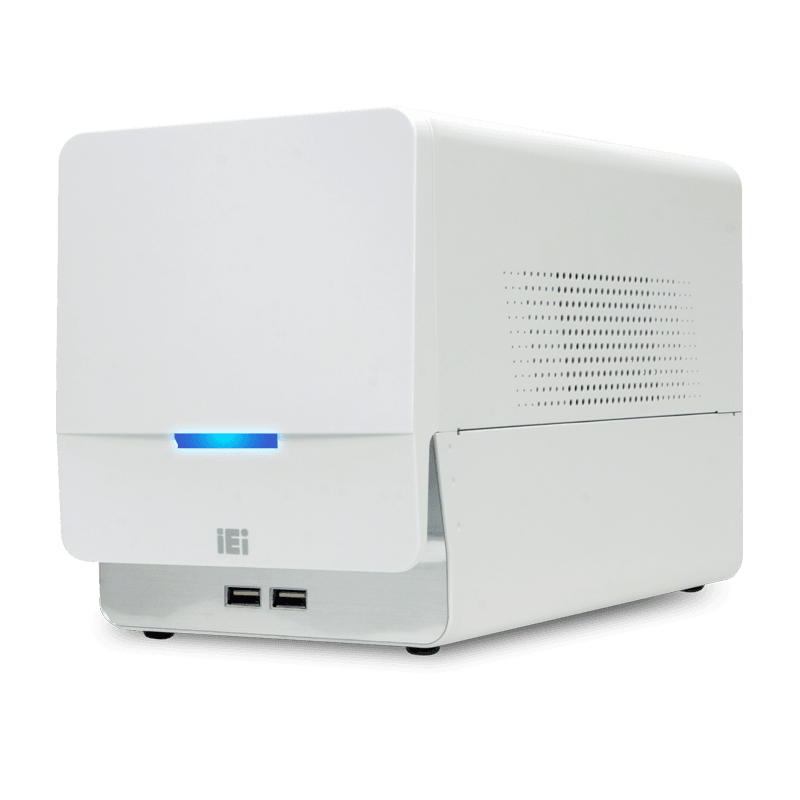

The intelligent HTB-200-C236 Medical Computing System is a compact small edge device with great Computing and Graphic Performance, which features 6th/7th Generation Intel® Xeon & Core™, Dual SODIMM ECC & non-ECC unbuffered Memory supported up to 64GB and PCIe (x16), PCIe (x4) slots to support nVidia GPU, Mustang Acceleration Cards, capture cards or other applications.

● Compact small edge device with great computing & graphic performance
● 6th/7th Gen Intel® Xeon & Core™ processor platform with Intel® C236 chipset
● Dual SODIMM ECC & non-ECC unbuffered Memory supported up to 64GB
● PCIe [x16] slot supports for Nvidia GPU, IEI Mustang Acceleration Card
● PCIe [x4] slot supports for capture card or other application

HTB-200-C236-E3/32G/2A-R10: Embedded system with Intel® Xeon®E3-1268LV5 2.4GHz, (Quad Core, TDP 35W), 2x16GB DDR4 pre-installed memory, 1 x PCIe by 16 & 1 x PCIe by 4 expansion, 19V DC 180W power adapter, white color, R10
HTB-200-C236-i5/16G/2A-R10: Embedded system with Intel® Core i5-7500T 2.7GHz, (Quad Core, TDP 35W), 2x8GB DDR4 pre-installed memory, 1 x PCIe by 16 & 1 x PCIe by 4 expansion, 19V DC 180W power adapter, white color, R10
