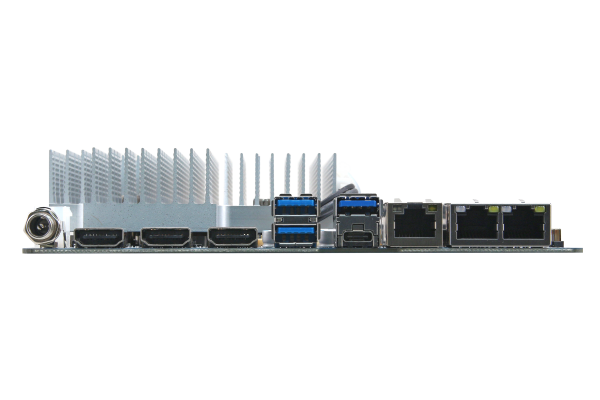

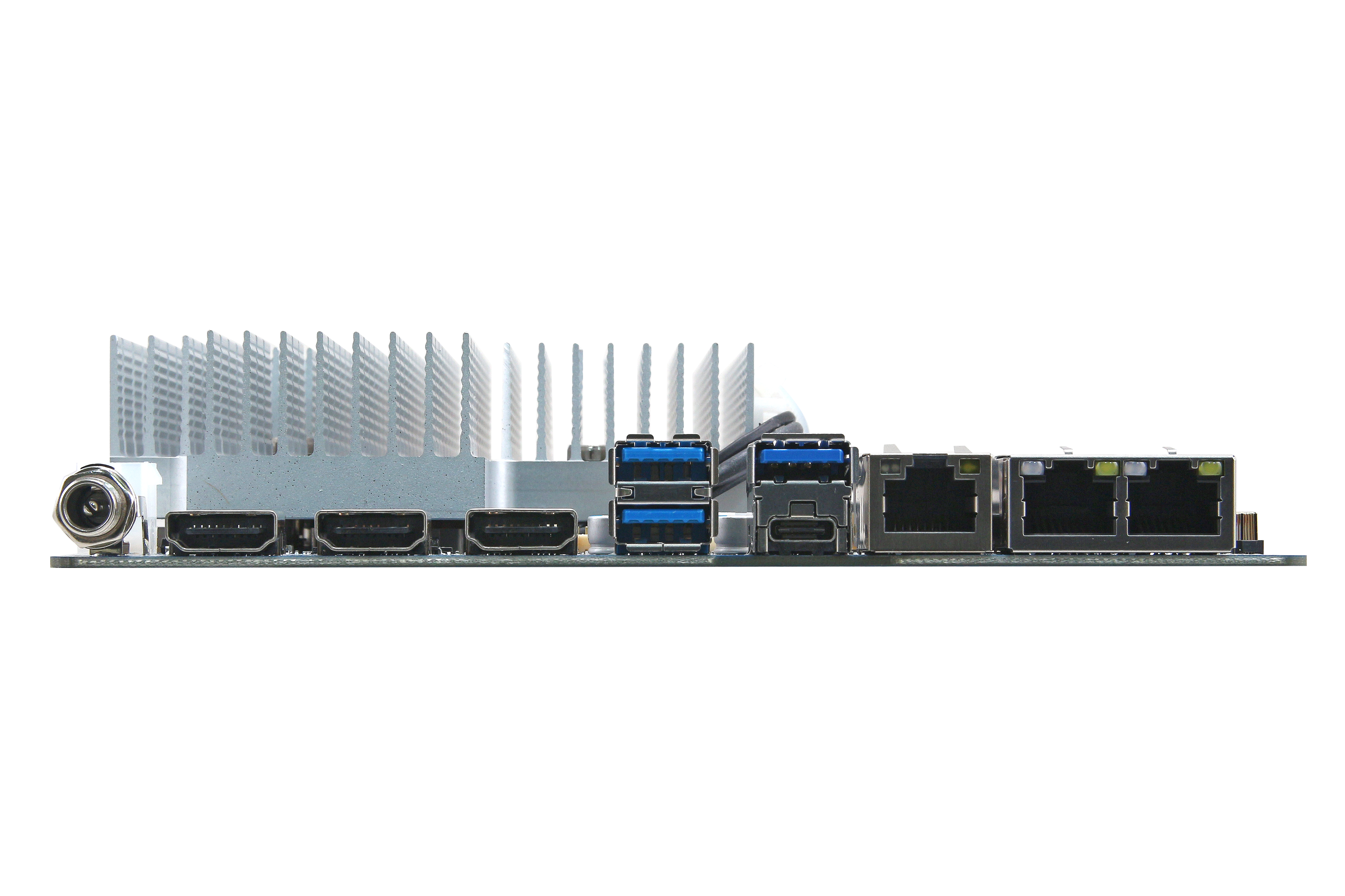

EMX-WHLGP

Onboard 8th Gen Intel® Whiskey Lake U Core™ SoC i7/i5/i3 & Celeron® BGA Processor Thin Mini ITX Motherboard

  • Onboard 8th Gen Intel® Whiskey Lake U Core™ SoC i7/i5/i3 & Celeron®BGA Processor
  • Two 260-pin DDR4 2400 MHz SO-DIMM socket, supports up to 32GB Max (non ECC only)
  • 2 x HDMI + 1 x HDMI/Dual-channel LVDS (default LVDS)
  • 1 x Intel® I219LM Gigabit Ethernet PHY, 2 x Intel® I210IT PCI-e Gigabit Ethernet (Co-lay Intel® I211AT/I210AT)
  • Realtek ALC892 Audio Codec, TI TPA3113D2PWP Stereo Class-D 6W x 2 Audio Amplifier
  • 1 x M.2 Key A 2230 support WiFi module ( 1 x PCI-e x 1 & USB 2.0 Signal), 1 x M.2 Key B 3042/2242/2260/2280 support WWAN+GNSS or SSD with 1 x SIM card slot
  • 1 x SATA III, 1 x SATA Power, 4 x USB 2.0, 3 x USB 3.1, 1 x USB Type C(USB 3.1 Gen1)
  • 4 x RS232, 2 x RS232/422/485, 16-bit GPIO
  • Mic-in, Line-out, 1 S/PIDF
  • DC in +12V~24V

EMX-WHLGP-430-A1R: (w/o heatsink)/ EMX-WHLGP-43A1-01R (w/heatsink, wide temp)
EMX-WHLGP-814-A1R: (w/o heatsink)/ EMX-WHLGP-81A1-01R (w/heatsink, wide temp)
EMX-WHLGP-836-A1R: (w/o heatsink)/ EMX-WHLGP-83A1-01R (w/heatsink, wide temp)
EMX-WHLGP-866-A1R: (w/o heatsink)/ EMX-WHLGP-86A1-01R (w/heatsink, wide temp)

Note: EMX-WHLGP standard package does not include I/O shields due to LAN 2 & 3 port exceed standard Thin MiniITX chassis. Customer need to make customized changes on chassis
