KINO-DCM236

SKU 4776

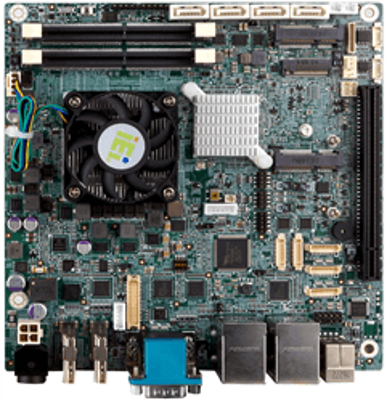

The KINO-DCM236 series is a Mini-ITX form factor industrial motherboard with 6th generation Intel® Xeon® E3 v5, Core™ i3 or Celeron® processor. It also equipped with two 260-pin 2133 MHz dual-channel DDR4 SDRAM SO-DIMM slots supporting ECC and up to 64 GB of memory.

The KINO-DCM236 series includes an HDMI 2.0 port, two HDMI 1.4 ports and a LVDS connector for triple independent display.

See the Product PDF Datasheet for Full Specifications.

  • Mini ITX form factor with 6th Intel® Xeon® Processor E3 v5 series, Core™ i3,Celeron® support DDR4-2133 memory with ECC support
  • HDMI 2.0
  • ECC support
  • Triple display with independent audio
  • PCIe x16, dual PCIe Mini and M.2 A key feature support for various function module
  • Rich High speed I/O interface for USB 3.0 and SATA 6Gb/s
  • Support IEI jumpless

KINO-DCM-236-E3-R10: Mini-ITX SBC supports 6th Intel® Xeon® processor E3-1505M
v5 (45W) , DDR4 with ECC support, HDMI 2.0, SATA 6Gb/s,
dual Intel® GbE, USB 3.1 Gen 1 (5Gb/s), PCIe Mini, M.2, HD
Audio and RoHS
KINO-DCM-236-E3E-R10: Mini-ITX SBC supports 6th Intel® Xeon® processor E3-1505L
v5 (25W), DDR4 with ECC support, HDMI 2.0, SATA 6Gb/s,
dual Intel® GbE, USB 3.1 Gen 1 (5Gb/s), PCIe Mini, M.2, HD
Audio and RoHS
