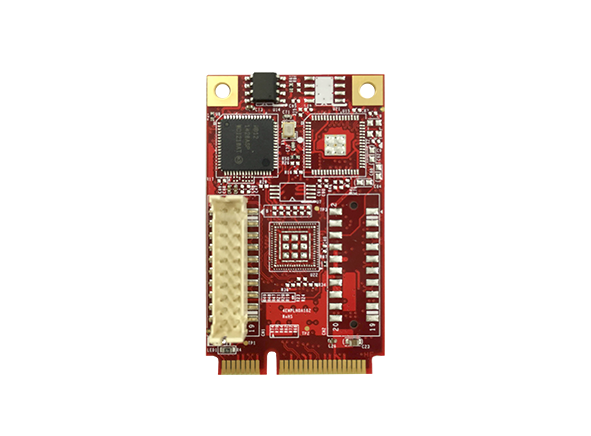

ICP Electronics Australia is pleased to present Innodisk’s EMPL-G101. Innodisk’s latest release, the EMPL-G101, raises the bar for networking modules. This mPCIe to single isolated GbE LAN Module provides users with robust networking capabilities along with the highest standards of protection and durability.

The EMPL-G101 offers a single isolated GbE LAN port, engineered for superior, dependable network connectivity. This module stands out for its strict compliance with safety and durability standards, including EN61000-4-5 for 1kV Surge protection and IEC 60950-1:2005 + A1: 2009 + A2:2013 for 2kV HiPOT protection. Additionally, it satisfies EN61000-4-2 specifications for Air-15kV and Contact-8kV electrostatic discharge protection.

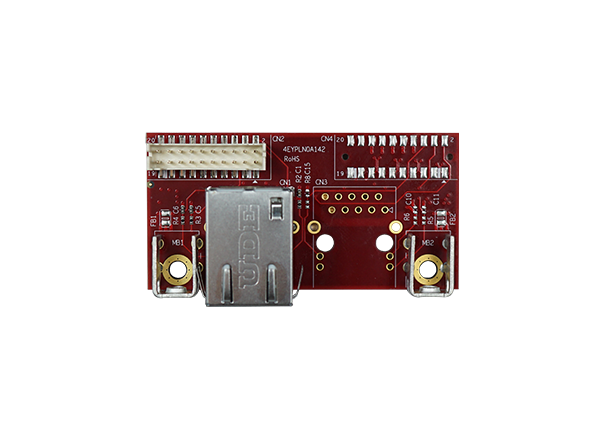

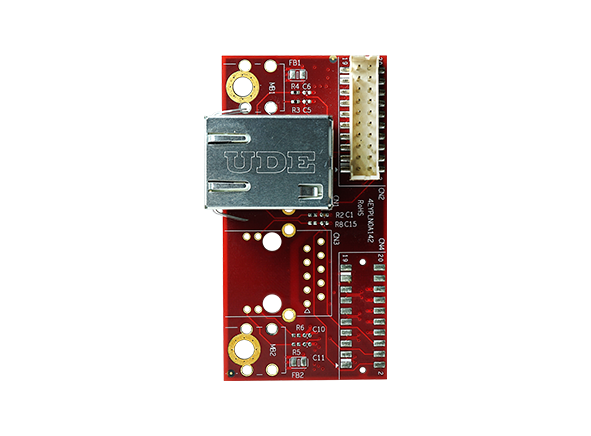

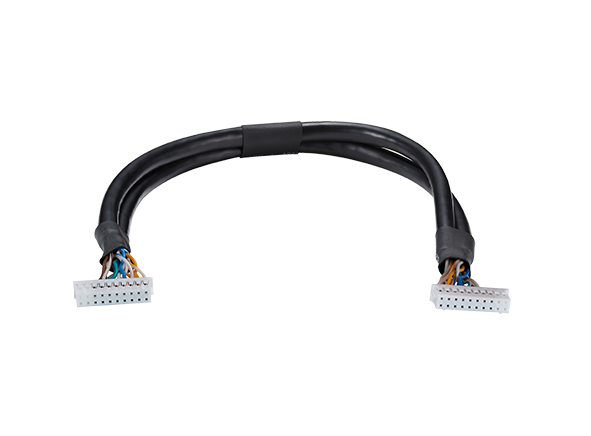

The EMPL-G101 has been designed with flexibility and customizability in mind. Its flexible daughter board comes with a cable to accommodate different systems. Optional terminal mounting holes or brackets for the daughter board are available, offering further adaptability.

Innodisk offers optional industrial temperature support for -40°C to +85°C, making it a durable and resilient choice for industrial applications. The module’s 30µ” golden finger underscores its superior quality, further supported by a 3-year warranty.
