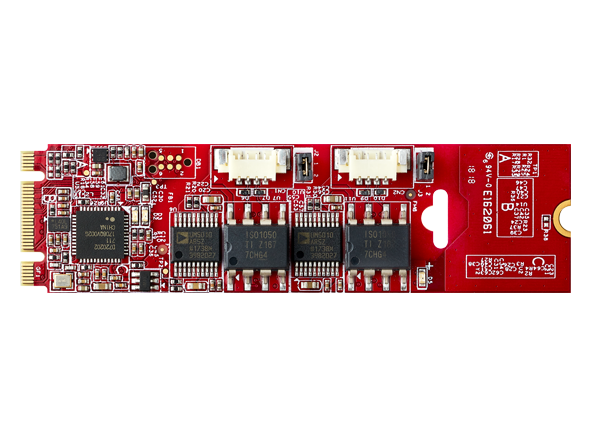

EGPC-B201

The EGPC-B201 is an embedded peripheral CAN bus module produced by Innodisk, featuring:

  • Alternative M.2 2260 or 2280 B-M Key
  • CAN Bus 2.0B, Backward Compatible with 2.0A
  • Baud Rate 100/125/250/500 (Default)/800/1000K
  • CAN Message Acceptance Filter
  • Up to 6000 CAN Messages Per Second (Receive Data)
  • Listen-Only Mode
  • Additional Driver to Support Linux SocketCAN
  • Complies with EN61000-4-5/EN61000-4-2 (ESD)/IEC 60950-1:2005 + A1: 2009 + A2:2013
  • -40°C~85°C Operation Temperature

Please see the product PDF for more in-depth product specifications and do not hesitate to contact us if you have any questions.

  • Alternative M.2 2260 or 2280 B-M Key
  • CAN Bus 2.0B, Backward Compatible with 2.0A
  • Baud Rate 100/125/250/500 (Default)/800/1000K
  • CAN Message Acceptance Filter
  • Keeps Configuration After Hardware Reboot
  • Up to 6000 CAN Messages Per Second (Receive Data)
  • Listen-Only Mode
  • Additional Driver to Support Linux SocketCAN
  • Supports SAE J1939 High Layer Protocol (Optional)
  • Termination Resistor Enabled/Disabled by Jumper
  • Complies with EN61000-4-5 2.5kV Surge Protection
  • Complies with IEC 60950-1:2005 + A1: 2009 + A2:2013 2.5kV HiPOT Protection
  • Complies with EN61000-4-2 (ESD) Air-15kV, Contact-8kV
  • -40°C~85°C Operation Temperature

EGPC-B201-W1 (2260, CAN2.0B): M.2 to Dual Isolated CAN Bus 2.0B Module

EGPC-B201-W2 (2280, CAN2.0B): M.2 to Dual Isolated CAN Bus 2.0B Module

EGPC-B201-W3 (2260, J1939): M.2 to Dual Isolated CAN Bus J1939 Module

EGPC-B201-W4 (2280, J1939): M.2 to Dual Isolated CAN Bus J1939 Module
