EMP2-X404

The EMP2-X404 is a Mini PCIe to four RS-232/RS-422/RS-485 embedded peripheral module produced by Innodisk, featuring:

  • PCIe 2.0 Compliant. RS-232/422/485 Mode Configurable by Software
  • Up to 1 Mbps RS232 and 15 Mbps RS422/485 Serial Data Rate. 16C550 Compatible. 256-byte FIFOs

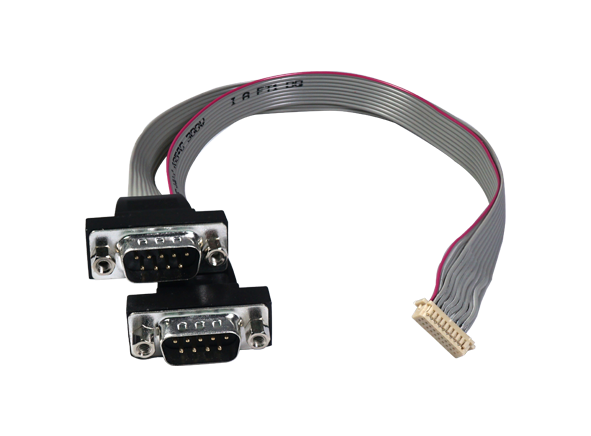

  • Full RS-232 Functions with DB9 Connector
  • Minimise Possible Mechanical Intervention Without Daughterboard
  • Termination Resistor Enabled/Disabled by DIP Switch
  • RI/5V/12V Output Switched by Jumper
  • ESD (Electrostatic Discharge) Protection Circuit to Prevent System Damage
  • -40°C~85°C Industrial Operation Temperature

Please see the product PDF for more in-depth product specifications and do not hesitate to contact us if you have any questions.

  • PCIe 2.0 Compliant. RS-232/422/485 Mode Configurable by Software
  • Up to 1 Mbps RS232 and 15 Mbps RS422/485 Serial Data Rate. 16C550 Compatible. 256-byte FIFOs
  • Full RS-232 Functions with DB9 Connector
  • Minimise Possible Mechanical Intervention Without Daughterboard
  • Termination Resistor Enabled/Disabled by DIP Switch
  • RI/5V/12V Output Switched by Jumper
  • ESD (Electrostatic Discharge) Protection Circuit to Prevent System Damage
  • -40°C~85°C Industrial Operation Temperature

EMP2-X404-W1: -40°C~85°C Wide Operation Temperature
