GPOE-2P

With PoE Technology, users can easily connect various PoE PD supported IP Camera to the Control System through the standard CAT-5/CAT-6 Cable (up to 100 meters) to transfer both Electrical Power and Data at the same time.

In this application, users can lower the difficulty of routing to avoid the risk of Power Adapter Failure, and easily build the system to act as PSE, allowing the entire Production Process to be Monitored and Controlled from A to Z.

● PCI Express® x1 compliant
● Support IEEE 802.3at for PoE (Power over Ethernet) with 30 watts per port
● Support link aggregation/jumbo frames (9 Kbyte)
● Supports 12V~24V DC input power

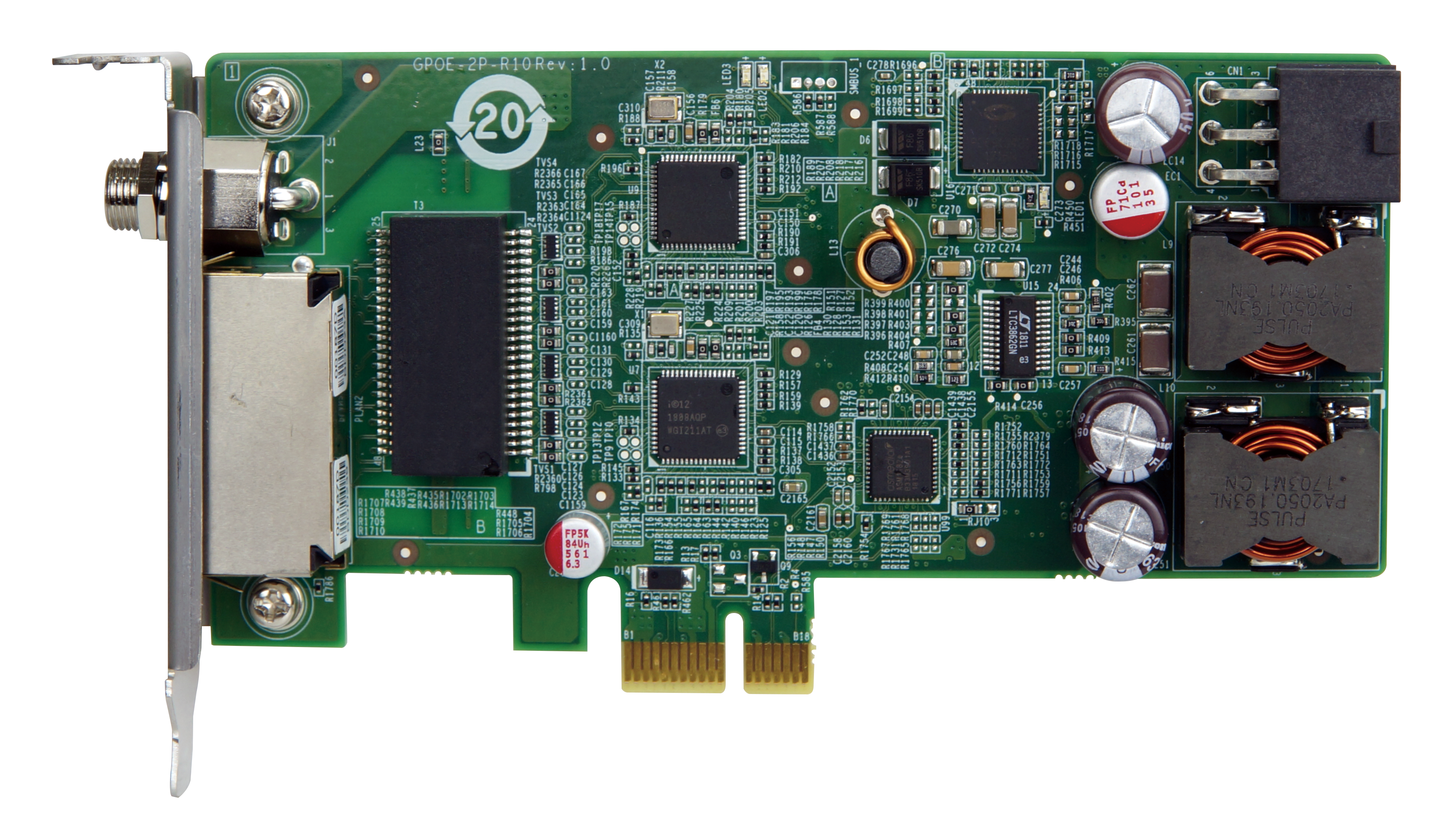

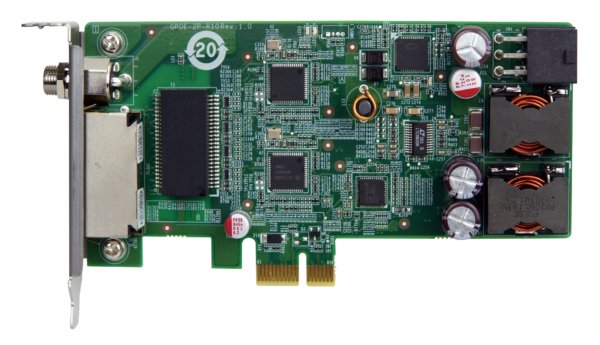

GPOE-2P-R20: PCI Express Power over Ethernet card, 2-port 1000 Base(T), 802.3at compliant, low profile, RoHS
