- NVIDIA Jetson TX2, Quad Core , 64-bit, 256 CUDA cores
- 8GB Memory / 32GB eMMC 5.1 /Single GbE
- 2x M.2 socket (M2280 & E3042), support SSD/WiFi/BT/LTE
- Fanless design with operating temperature range from -20°C to +60°C
- Designed for wall-mounting and DIN rail mounting
- Custom made BSP based Ubuntu 16.04, Jetpack 3.2.1 and L4T 28.2

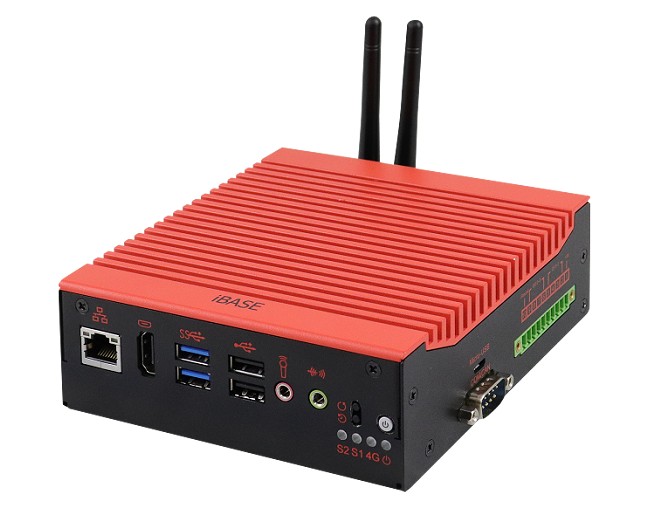

The EC-3200 AI computing platform is based on the cutting-edge power-efficient and high-performance NVIDIA Jetson Tegra X2 (TX2) processor. The NVIDIA Jetson TX2 pairs a dual-core Denver 2 alongside a quad-core ARM® Cortex®-A57 processor and provides 256 CUDA cores on the NVIDIA’s advanced Pascal GPU architecture with up to 1.33 TFLOPS, delivering exceptional AI performance.
EC-3200: NVIDIA Jetson TX2, Quad, 64-bit, 256 CUDA cores 8GB Memory/ 32GB eMMC/ Single GbE/ HDMI/ WiFi/ BT/ SIM card Slot/ CAN Bus or RS232/ 4-in & 4-out GPIO/ 2x USB3.0/ 2x USB2.0/ OTG USB
