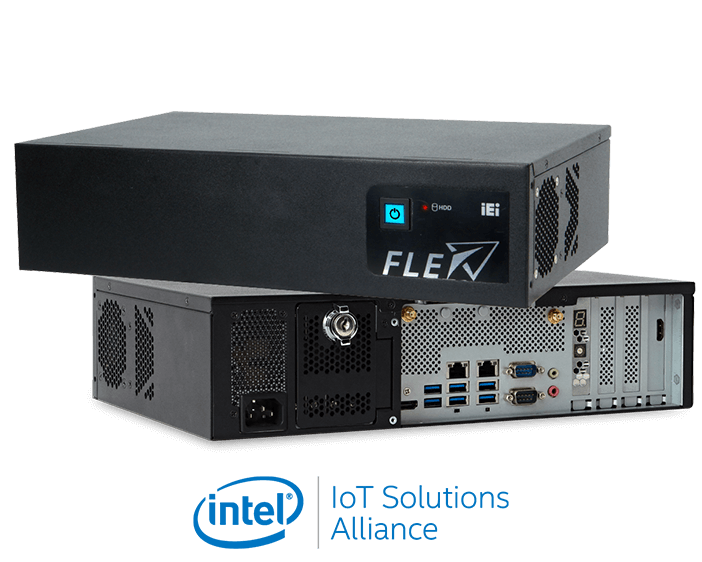

FLEX AIoT Developer Kit

The FLEX AIoT Dev. Kit features rich I/O and two PCIe slots (x8) to support add-ons like Accelerator Cards (Mustang-F100-A10 & Mustang-V100-MX8) or PoE Cards (IPCIE-4POE) to enhance performance and function for various applications.

The FLEX Series designed for the Machine Vision Market has three PCIe 3.0 Expansion Slots for installing Motion Controller Cards, GP/GPU/FPGA/VPU Cards and the PoE Ethernet Card which is developed by IEI and has four GbE Power over Ethernet (PoE) Ports compliant with IEEE 802.3af for direct connection to CCTV Cameras without needing separate power.

  • 2U AI Modular PC with 9th Generation LGA 1151 Intel® Core™/Xeon® Processor with Intel® Q370/C246 Chipset and DDR4 Memory
  • Four Hot-Swappable and Accessible HDD Drive Bays Support RAID 0/1/5/10
  • Support PCIe 3.0 by 4 and PCIe 3.0 by 8 Slots
  • M.2 2280 PCIe 3.0 x4 NVMe™ SSD Support
  • Dual Independent Display with High Resolution Support
  • TPM Data Protection and Reliable Authentication
  • Pre-Validated Ubuntu 18.04 Operating System
  • Support up to 4 x Mustang-V100-MX8 PCIe Accelerator Cards for Enhancing AI/DL Workloads
  • Support Wi-FI 802.11 AC Dual and Bluetooth V5.0 (Pre-Installed)
  • Support Cat16 1Gbps 4G LTE with 4×4 MIMO Technology

With Mustang-V100-MX8
FLEX-BX200AI-XER/32G/V-R10: 2U AI Modular box PC, 9th Gen Intel® Xeon® E-2278GEL 2.0GHz (Up to 3.9GHz, 8-core, TDP 35W), 32GB DDR4, 2.5″ 1TB HDD, TPM 2.0, 350W PSU, with Mustang-V100-MX8, Wi-Fi 802.11ac, R10
FLEX-BX200AI-i7R/16G/V-R10: 2U AI Modular box PC, 9th Gen Intel® Core™ i7-9700TE 1.8GHz (Up to 3.8GHz, 8-core, TDP 35W), 16GB DDR4, 2.5″ 1TB HDD, TPM 2.0, 350W PSU, with Mustang-V100-MX8, Wi-Fi 802.11ac, R10
FLEX-BX200AI-i5R/8G/V-R10: 2U AI Modular box PC, 9th Gen Intel® Core™ i5-9500TE 2.2GHz (Up to 3.6GHz, 6-core, TDP 35W), 8GB DDR4, 2.5″ 1TB HDD, TPM 2.0, 350W PSU, with Mustang-V100-MX8, Wi-Fi 802.11ac, R10
FLEX-BX200AI-i5/8G/V-R10: 2U AI Modular box PC, 8th Gen Intel® Core™ i5-8500 3.0GHz (Up to 4.1GHz, 6-core, TDP 65W), 8GB DDR4, 2.5″ 1TB HDD, TPM 2.0, 350W PSU, with Mustang-V100-MX8, Wi-Fi 802.11ac, R10

Without Mustang-V100-MX8
FLEX-BX200AI-XER/32G-R10: 2U AI Modular box PC, 9th Gen Intel® Xeon® E-2278GEL 2.0GHz (Up to 3.9GHz, 8-core, TDP 35W), 32GB DDR4, 2.5″ 1TB HDD, TPM 2.0, 350W PSU, Wi-Fi 802.11ac, R10
FLEX-BX200AI-i7R/16G-R10: 2U AI Modular box PC, 9th Gen Intel® Core™ i7-9700TE 1.8GHz (Up to 3.8GHz, 8-core, TDP 35W), 16GB DDR4, 2.5″ 1TB HDD, TPM 2.0, 350W PSU, Wi-Fi 802.11ac, R10
FLEX-BX200AI-i5R/8G-R10: 2U AI Modular box PC, 9th Gen Intel® Core™ i5-9500TE 2.2GHz (Up to 3.6GHz, 6-core, TDP 35W), 8GB DDR4, 2.5″ 1TB HDD, TPM 2.0, 350W PSU, Wi-Fi 802.11ac, R10
FLEX-BX200AI-i5/8G-R10: 2U AI Modular box PC, 8th Gen Intel® Core™ i5-8500 3.0GHz (Up to 4.1GHz, 6-core, TDP 65W), 8GB DDR4, 2.5″ 1TB HDD, TPM 2.0, 350W PSU, Wi-Fi 802.11ac, R10



Please see Product PDF for more information.
