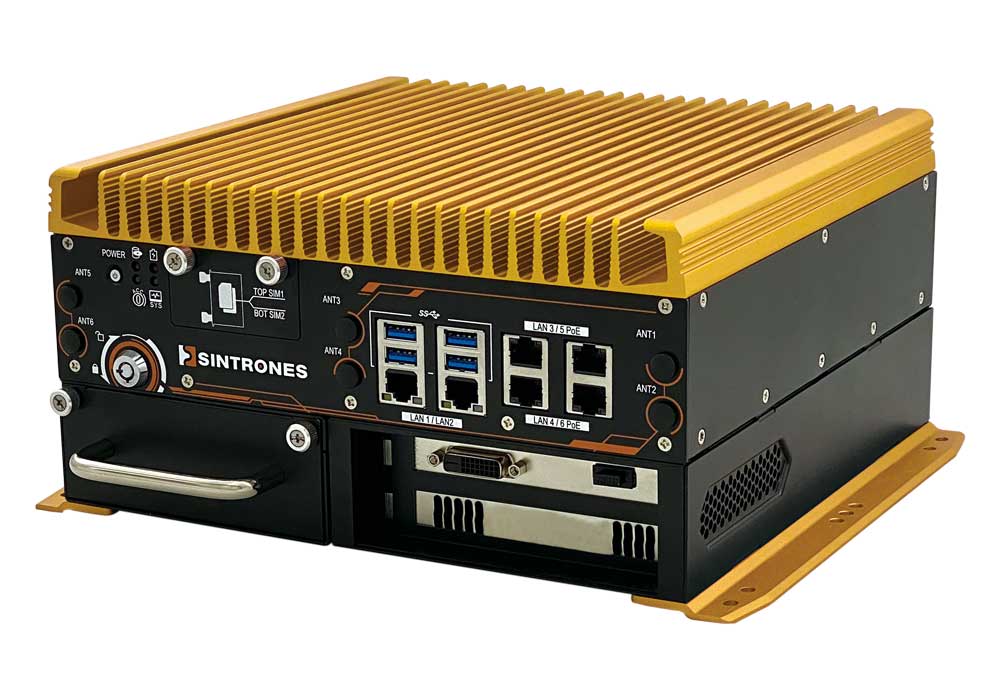

EBOX-7010 (Coming Soon)

The EBOX-7010 Edge Computing is suitable for various factory automation and Industrial Internet of Things (IIoT) control system in large-scale processes such as mining and manufacturing. It is powered by Intel 10th Gen Core i9/i7/i5/i3 CPU (Comet Lake) with 6 x RJ45 GbE (optional 4 x PoE Max. 100W).

  • Intel Gen 10th i9/i7/i5/i3 CPU
  • 1 x PCIe 3.0 x16 Interface Expansion (optional 2 x PCIe 3.0 x8 Interface)
  • 6 x RJ45 GbE (optional 4 x PoE Max. 100W)
  • 8 x DI, 4 x DO and 2 x RS-232/422/485
  • 1 x DP + 1 x HDMI + 1 x DVI-I (Single Link w/o Analog Video)
  • Dual Hot Swappable SATA Storage RAID 0,1,5
  • 9-48V DC Input and Operating Temp.: -40~70°C
  • TPM 2.0

EBOX-7010 features TPM 2.0 and memory 2 x DDR4 2666/2933 MHz SO-DIMM up to 64GB. Furthermore, the environmental tolerance continually maintains a wide range of operating temperatures (-40 ~ 70 ºC). In addition, it provides Intel® UHD Graphics 630 with max resolution (HDMI): 4096×2304@24Hz.

Part Number EBOX-7010XYY-ZZ (X= P= w/PoE, X= Empty= w/o PoE, YY= E1= w/1 x PCIe x 16 interface, YY= E2= w/2 x PCIe 3.0 x8 interface, ZZ= i9= i9-10900TE, ZZ= i7= i7-9700TE, ZZ= i5= i5-10500TE, ZZ= i3= i3-10100TE, ZZ= C1= G5900TE)
Description Intel 9th Gen Core i7/ Intel 8th Gen Core i7/i5/i3 CPU w/ 6 x RJ45 GbE (optional 4 x PoE Max. 100W) / 4 x COM / 1 x DP/ 1 x HDMI/ 1 x DVI-I/ 4 x USB 3.2 Gen 1/ 9-48V Edge Computing
