ASB200-919

The slim-type ASB200-919 is a fanless system based on the IB919 3.5″ disk-size SBC. The system is designed for both industrial and commercial applications, including factory automation, production line equipment, POS computers and gaming applications.

  • Fanless System with IBASE IB919 3.5’’ Disk-Size SBC
  • Onboard 8th Gen Intel® Core™ U-Series Processor
  • Supports 2x M.2 Sockets (E-Key, CNVi / M-Key, NVMe)
  • 12V(-10%) ~ 24V(+10%) DC-In Power Input
  • 2x DDR4 SO-DIMM, Max.32GB
  • 4x USB 3.1, 2x Intel® Gigabit LAN
  • 1x COM Ports, External GPIO
  • 2x DP (1 by Type-C), TPM (2.0)
  • Optional VESA Mount Bracket

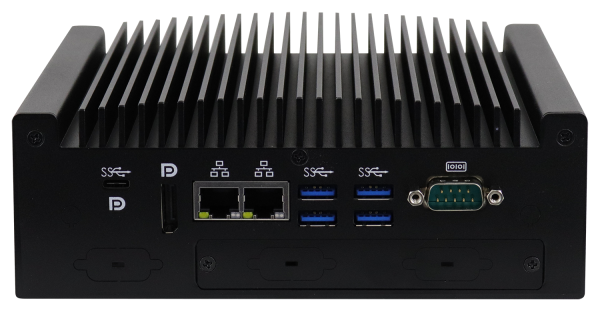

The compact ASB200-919 is equipped with the 8th Gen Intel® Core™ i7/i5/i3 / Celeron® processors and two DDR4 SO-DIMM slots with 8GB as default and 32GB maximum capacity. Measuring 180 x 150 x 66mm, the system provides multiple I/O ports (with 4x USB 3.1, 2x DP, 1x COM, and 2x GbE on the front panel) and two M.2 expansion sockets (E-Key & M-Key) to integrate various peripheral devices or meet specific application requirements.

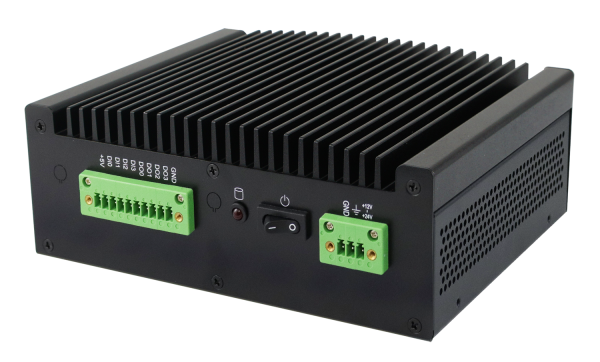

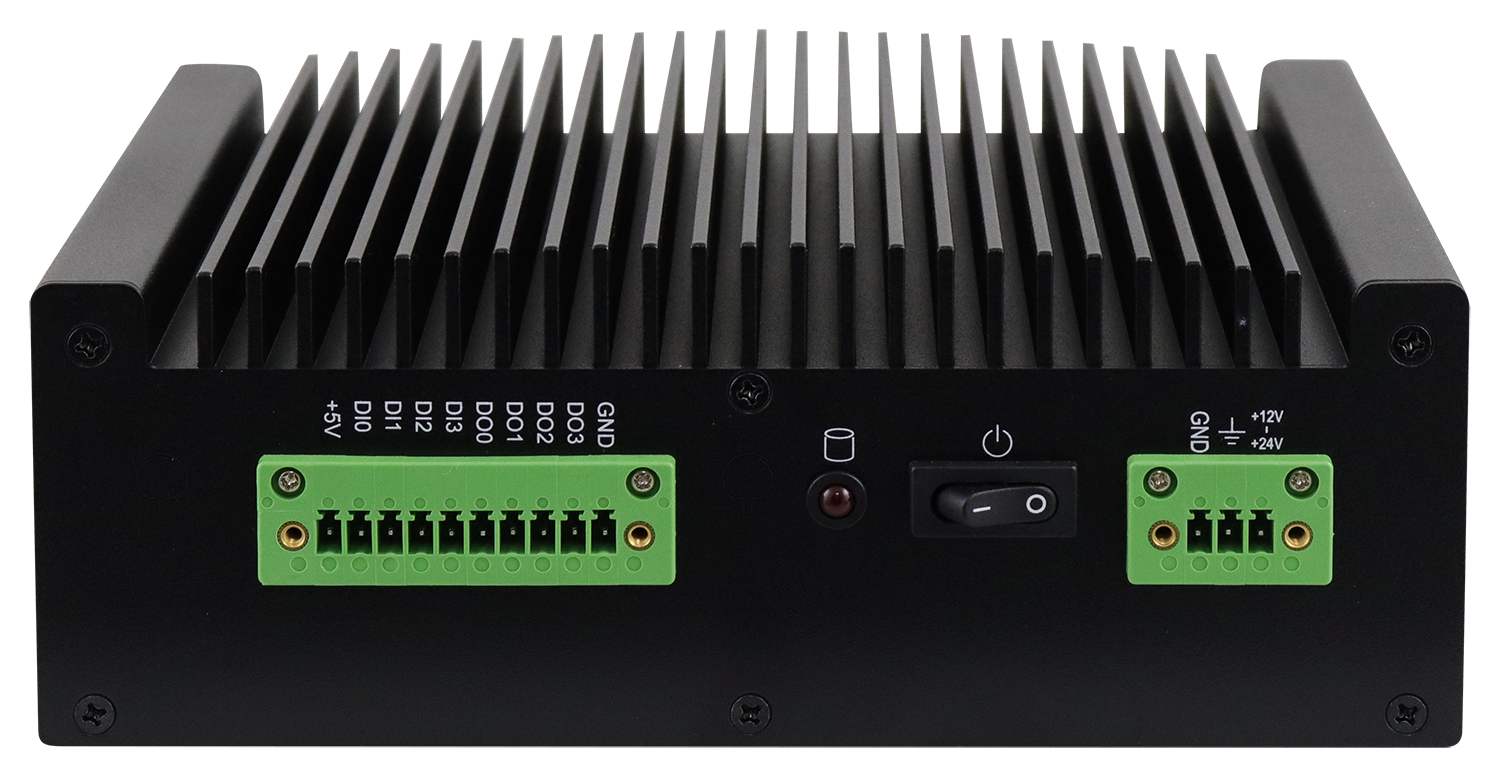

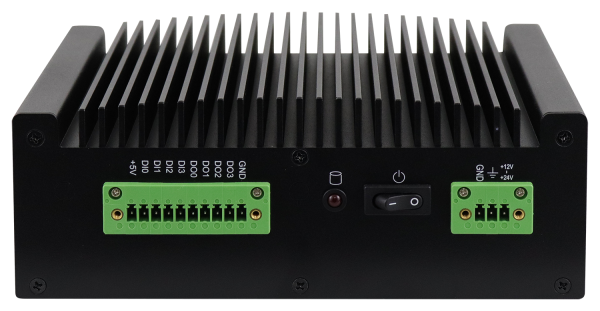

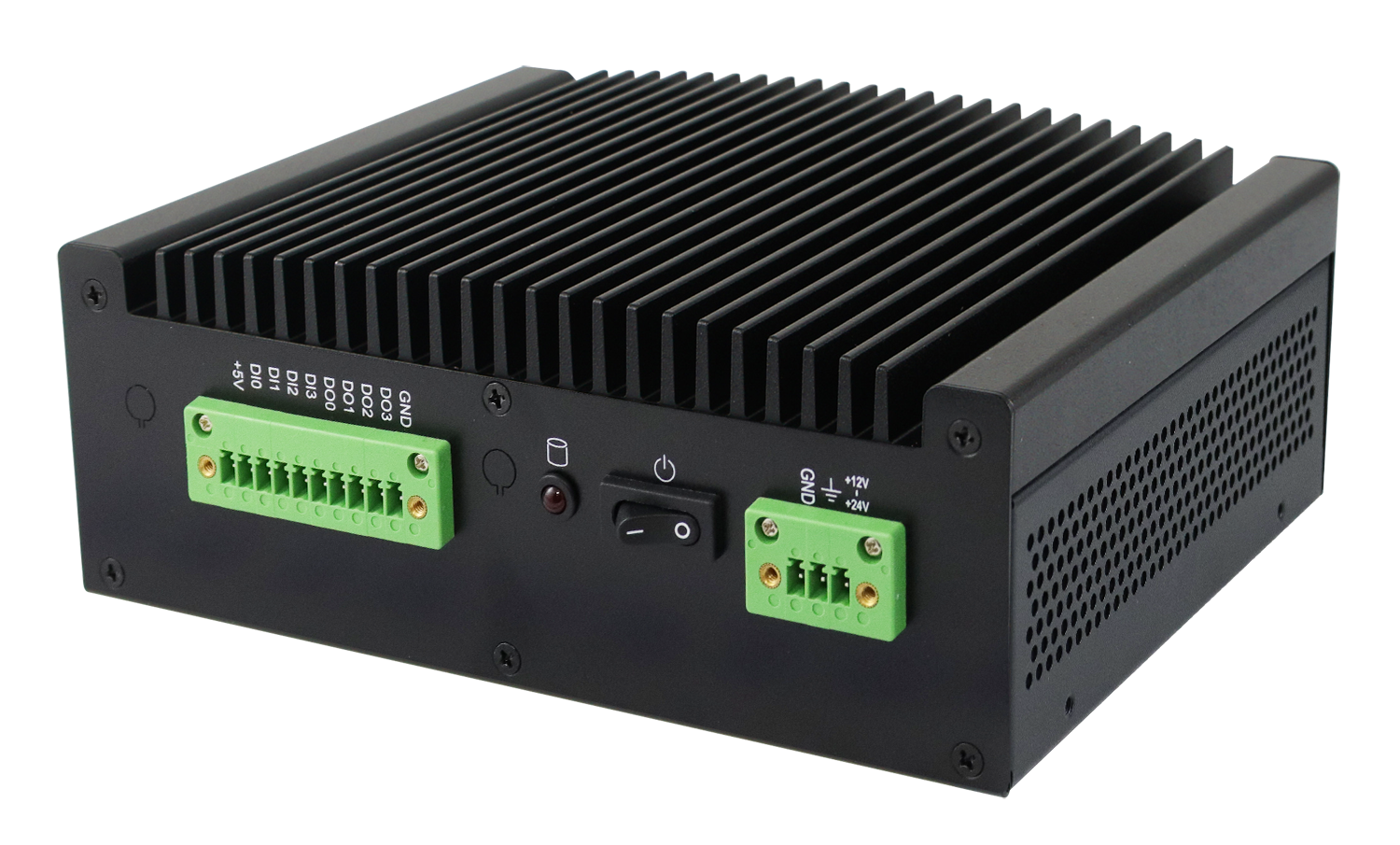

The ASB200-919 is designed for reliable 24/7 operation, with a wide power input range from 12V(-10%) to 24V(+10%) and 3Grms vibration resistance. Other features include TPM (2.0) for enhanced security and data protection, external GPIO, easy SSD replacement, and optional 90W power adaptor and WiFi antenna kit. Operating systems supported are Win10 and Linux Ubuntu.

ASB200-919-i7: Fanless chassis with IB919AF-8665, Intel® i7-8665UE 1.7GHz CPU, 1x COM, 2x 8GB DDR4 memory, 1x 2.5’’ SATAIII 64GB TLC SSD (W/O 90W power adaptor and VESA mount bracket)
ASB200-919-i5: Fanless chassis with IB919AF-8365, Intel® i5-8365UE 1.6GHz CPU, 1x COM, 2x 8GB DDR4 memory, 1x 2.5’’ SATAIII 64GB TLC SSD (W/O 90W power adaptor and VESA mount bracket)
ASB200-919-i3: Fanless chassis with IB919EF-8145, Intel® i3-8145UE 2.2GHz CPU, 1x COM, 2x 8GB DDR4 memory, 1x 2.5’’ SATAIII 64GB TLC SSD (W/O 90W power adaptor and VESA mount bracket)
ASB200-919-CEL: Fanless chassis with IB919EF-4305, Intel® Celeron 4305UE 2.0GHz CPU, 1x COM, 2x 8GB DDR4 memory, 1x 2.5’’ SATAIII 64GB TLC SSD (W/O 90W power adaptor and VESA mount bracket)
90W power adaptor (optional): 90W (24V@3.75A) power adaptor, DC-jack or bare wire type Compatible with IEC62368-1/EN62368-1

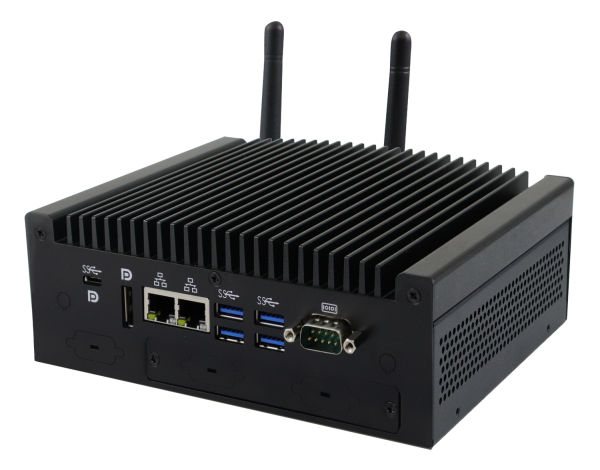

Optional Accessories Wifi antenna kit [PN: SC2ASB2—-0A1100R]
