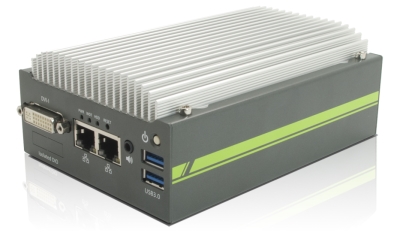

POC-200

SKU 3848

The POC-200 is a fanless controller, ultra compact 146 x 102 x 58mm (W x H x D)—almost as to the same size as a 3.5 inch HDD, and can be easily built into existing systems in the production line, or used for customize systems. Powered by the new Intel® Bay Trail Quad Core CPU, 1.91Ghz E3845, the POC-200 is capable of upgrading to a maximum of 8 GB memory; feature isolated I/O provide users with the digital devices connection, the slick interior design minimizes compatibility and cabling issues.

See the product PDF Datasheet for Full Specifications.

Take advantage of the ultra compactness and speed/performance of Neousys’ new POC-200 fanless embedded controller!

The POC-200 is a fanless controller, ultra compact 146 x 102 x 58mm (W x H x D)—almost as to the same size as a 3.5 inch HDD, and can be easily built into existing systems in the production line, or used for customize systems. Powered by the new Intel® Bay Trail Quad Core CPU, 1.91Ghz E3845, the POC-200 is capable of upgrading to a maximum of 8 GB memory; feature isolated I/O provide users with the digital devices connection, the slick interior design minimizes compatibility and cabling issues.

The POC-200 supports rich I/O interfaces, including 4x COM ports, 4x USB ports (3x USB 3.0, 1x USB 2.0) USB 3.0 ports enable fast data computation and acquisition, 4x isolated digital I/Os and 2x PoE GigE ports. The POC-200 also provides with one Mini-PCIe slot with one USIM socket for wireless requirements.





POC-200:  Intel® Atom™ E3845 Quad-Core fan-less Embedded Controller with 2x GigE PoE ports, 4x COM Ports

POC-210:  Intel® Atom™ E3845 Quad-Core fan-less Embedded Controller with 2x GigE ports, 4x COM Ports

POC-212:  Intel® Atom™ E3845 Quad-Core fan-less Embedded Controller with 2x GigE ports, 2x COM Ports

POC-222:  Intel® Atom™ E3825 Quad-Core fan-less Embedded Controller with 2x GigE ports, 2x COM Ports

OPT POC-4DI4DO:  Isolated 4x Digital Inputs / 4x Digital Outputs

OPT EMMC:  On-Board eMMC Module.  Release Date : 2014Q2

Dinrail-POC:  Din-Rail mounting Kit,POC-100/POC-200
