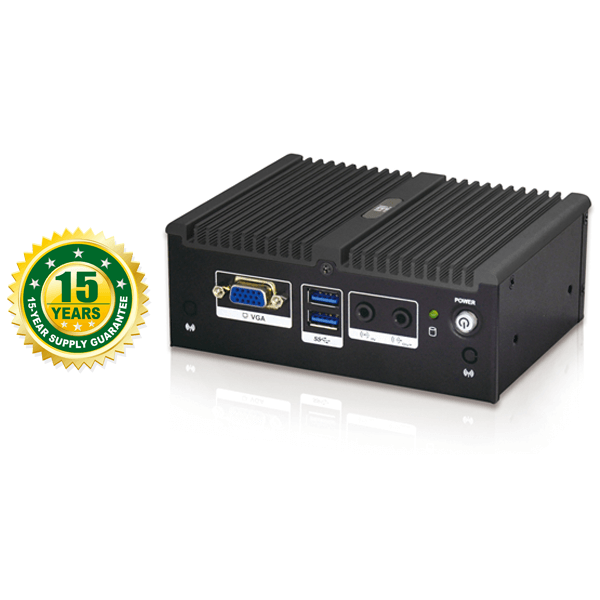

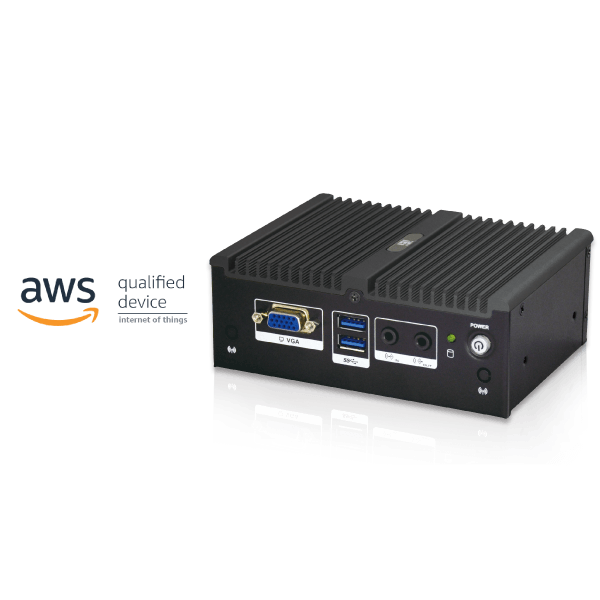

uIBX-250-BW

SKU 4495

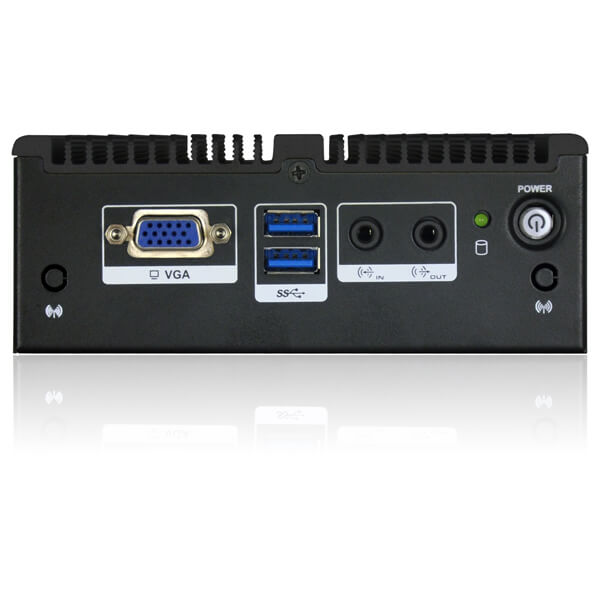

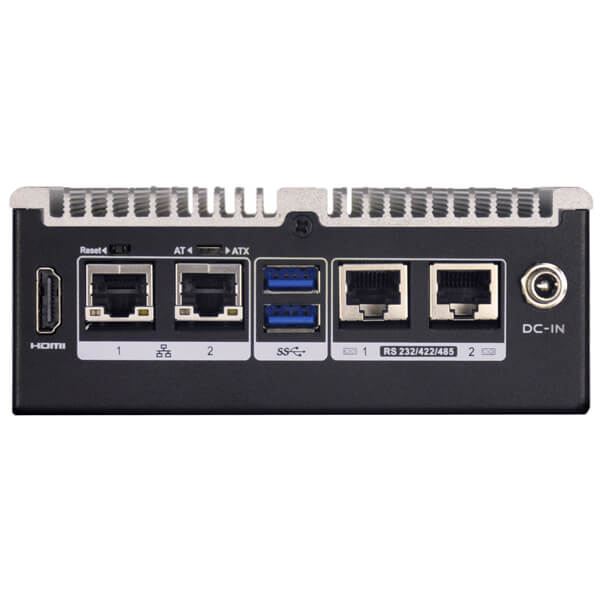

The uIBX-250-BW Embedded System is a Fanless System that has Intel® Celeron® N3160 processor pre-installed and supports one 204-pin DDR3L 1.35 V SO-DIMM module up to 8 GB (pre-installed 2 GB) with one VGA port and one HDMI for dual display. This Embedded System supports a 2.5” SATA HDD with up to 6 Gb/s data transfer rate. Two RS-232/422/485 serial ports and four USB 3.0 ports ensure simplified connectivity to a variety of external peripheral devices.

  • Fanless system with Intel® Celeron® N3160 processor
  • Dual display
  • Two RS-232/422/485
  • Full-size PCIe Mini slot for expansion
  • Four USB 3.0 ports
  • Two GbE LAN ports

uIBX-250-BW-N3/2G-R20: Fanless embedded system with Intel® Celeron® N3160 1.6 GHz (up to 2.24 GHz, quad core, TDP 6 W), 2 GB DDR3L pre-installed memory,12 V DC, with RS-232/422/485, USB 3.0, VGA/HDMI, dual Intel® PCIe GbE, RoHS

  • IEI Integration
