XV484

The XV484 is a 32-bit high-speed Counter/Frequency/Encoder input Expansion Board that offers a variety of mode options, including “Up Counter”, “Frequency Input”, “Up/Down Counter”, “Direct/Pulse Counter” and “A/B Phase Counter” modes.

  • 8 Up Counter/Frequency Channels or 4 Encoder Input Channels
  • Programmable Digital Filter
  • 32-bit Counter
  • Individual Channel Configuration
  • Virtual Battery Backup to Preserve Counter Values
  • Preset Values for Counter Input
  • RoHS Compliant

The mode combinations can be individual set for all 8 channels, where some channels can be set to “Up Counter” mode and other channels can be simultaneously set to “Frequency”, “Up/ Down Counter” or “Encoder input” mode. The built-in digital filter can filter out noise where the high/ low pulse width is smaller than the minimum high/low width of the digital filter.

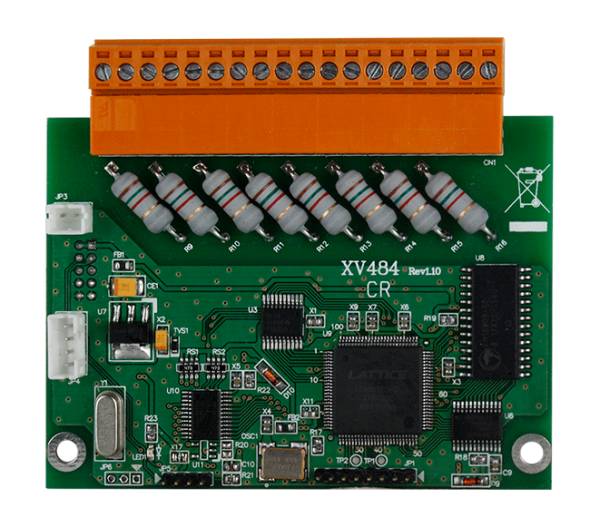

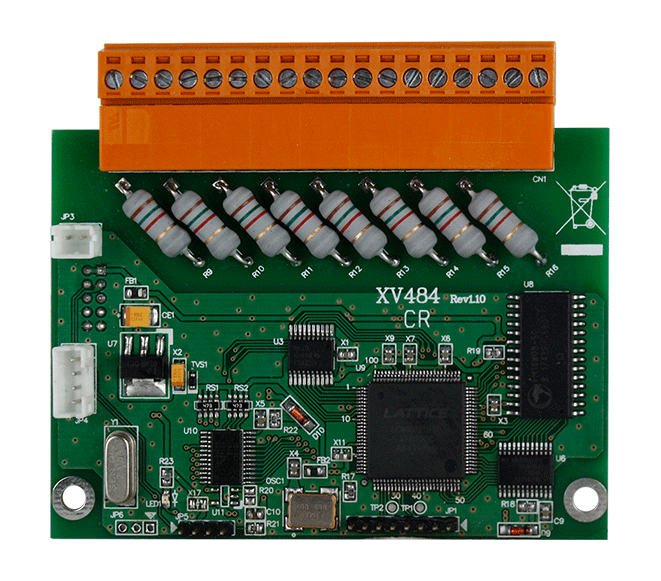

XV484 CR: 4/8-ch Counter/Frequency/Encoder Input Expansion Board (RoHS)
