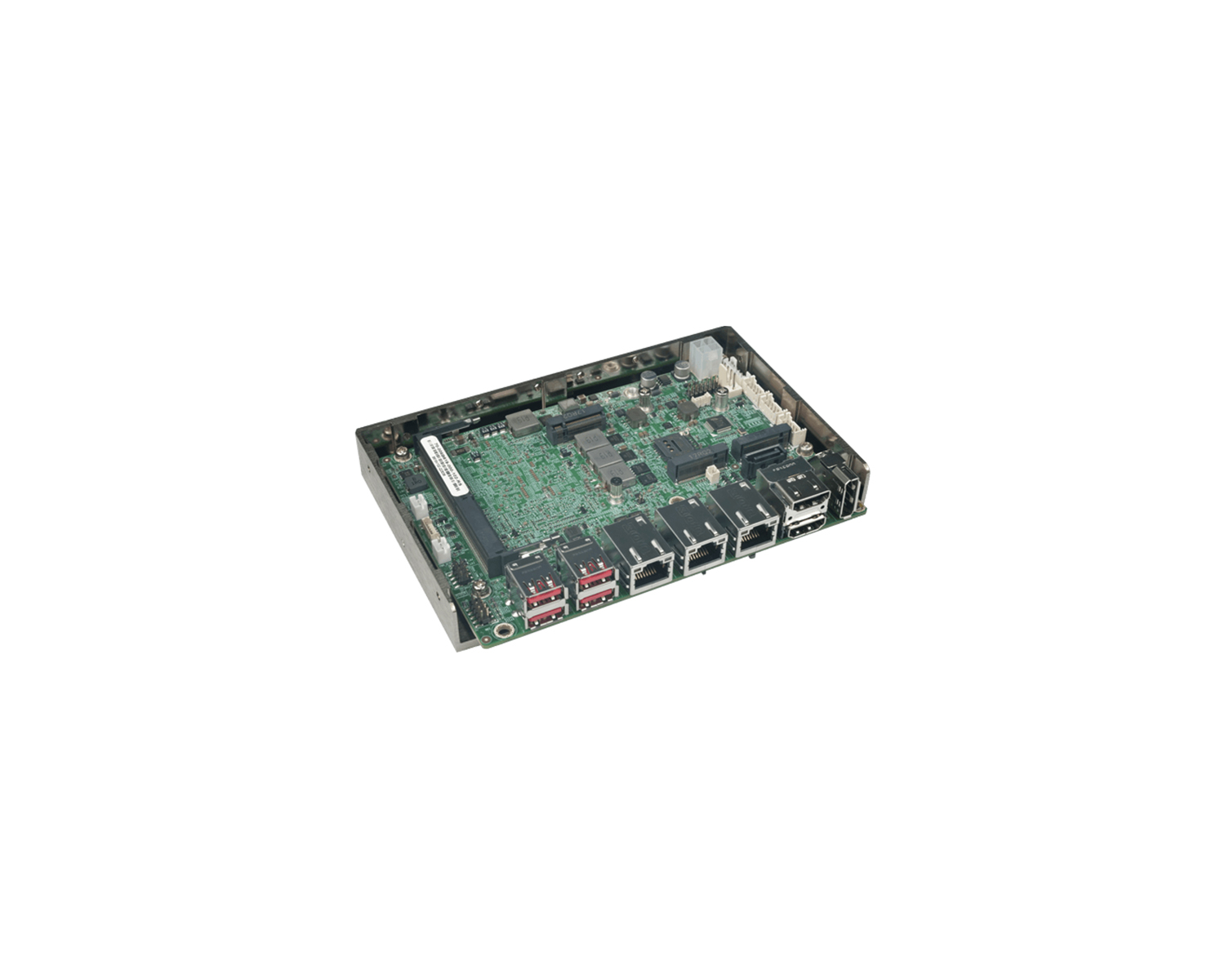

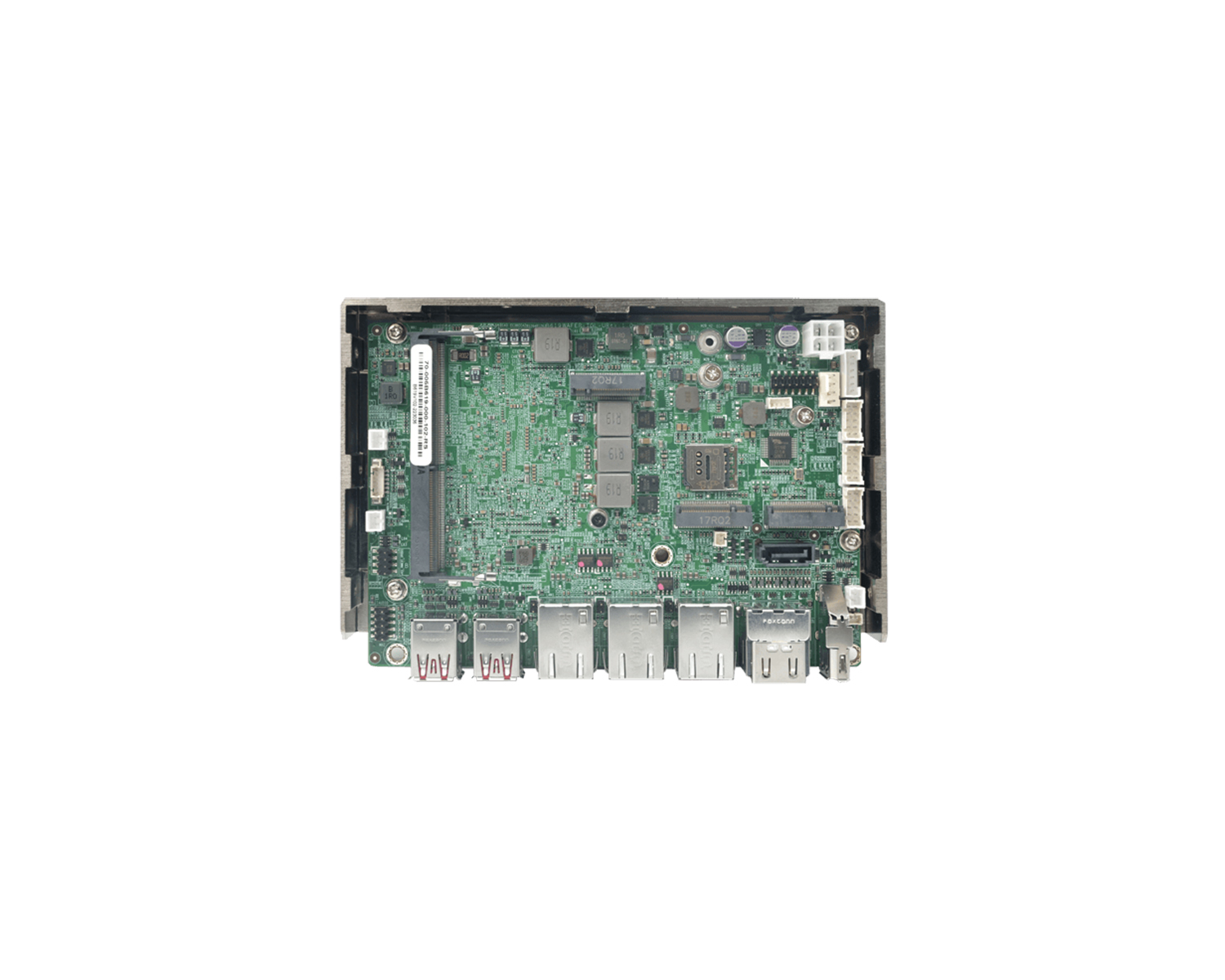

WAFER-TGL-U

WAFER-TGL-U takes all the essential elements of the latest 11th Gen. Intel® Core™ U-series processors and combines them with smart manufacturing features and proven durability in the compact size 3.5″ form factor.

KEY FEATURES:

  • 3.5＂ SBC with Intel® Tiger Lake-UP3 on Board SOC Processor, Support SO-DIMM DDR4-3200 Memory

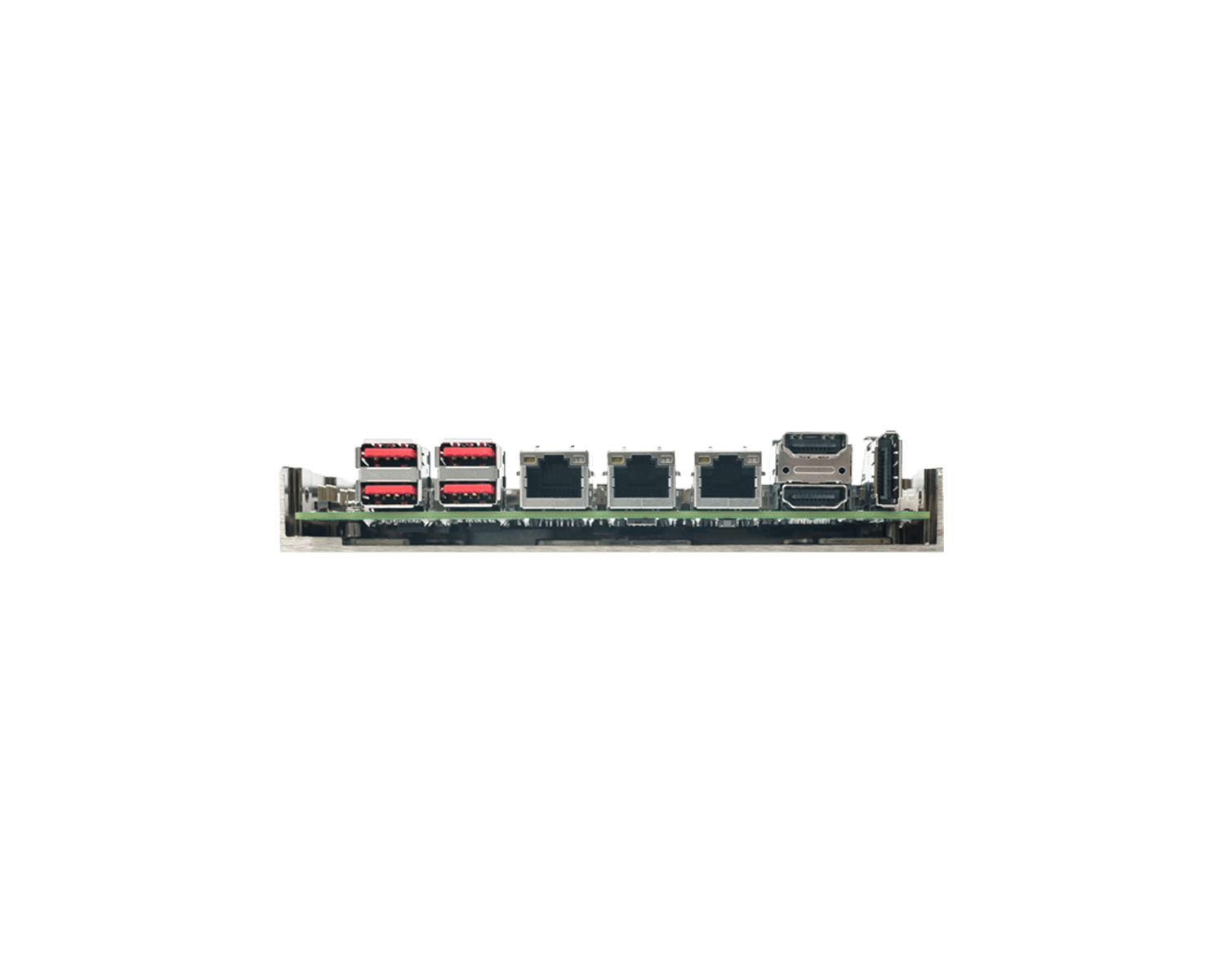

  • Support Quadruple Independent Display: 2 x HDMI 1.4, 1 x DP 1.4, 1 x iDPM
  • High-speed I/O interface: 4 x USB 3.2 gen 2 (10Gb/s), SATA (6Gb/s)
  • Support Three Intel®I225V 2.5GbE Network Port
  • Support M.2 A Key, B Key Extension
WAFER-TGL-U-i7-R10 3.5″ SBC with Intel® Tiger Lake-UP3 Core™ i7-1185G7E Proccessor,DDR4 SO-DIMM,12V DC input,Quad Display,Triple M.2 with A/B key,Triple Intel® 2.5 GbE,SATA,USB3.2,SoC,RoHS
WAFER-TGL-U-i5-R10 3.5″ SBC with Intel® Tiger Lake-UP3 Core™ i5-1145G7E Proccessor,DDR4 SO-DIMM,12V DC input,Quad Display,Triple M.2 with A/B key,Triple Intel® 2.5 GbE,SATA,USB3.2,SoC,RoHS
WAFER-TGL-U-i3-R10 3.5″ SBC with Intel® Tiger Lake-UP3 Core™ i3-1115G4E Proccessor,DDR4 SO-DIMM,12V DC input,Quad Display,Triple M.2 with A/B key,Triple Intel® 2.5 GbE,SATA,USB3.2,SoC,RoHS
WAFER-TGL-U-C-R10 3.5″ SBC with Intel® Tiger Lake-UP3 Celeron® 6305 Proccessor,DDR4 SO-DIMM,12V DC input,Quad Display, Triple Intel® 2.5 GbE,SATA,USB3.2,M.2,SoC,RoHS
WAFER-TGL-U-CE-R10 3.5″ SBC with Intel® Tiger Lake-UP3 Celeron 6305E Proccessor,DDR4 SO-DIMM,12V DC input,Quad Display,Triple M.2 with A/B key,Triple Intel® 2.5 GbE,SATA,USB3.2,SoC,RoHS
