WAFER-ADL-P

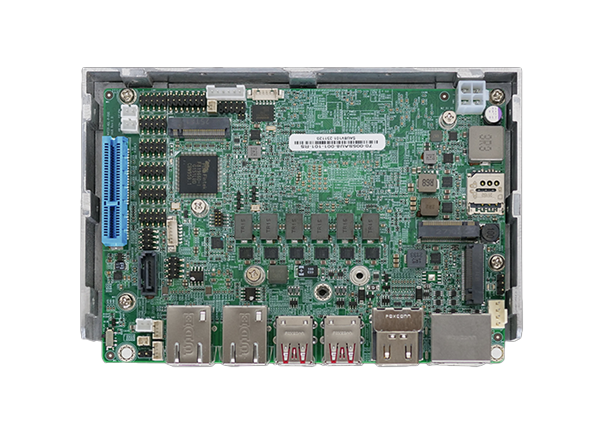

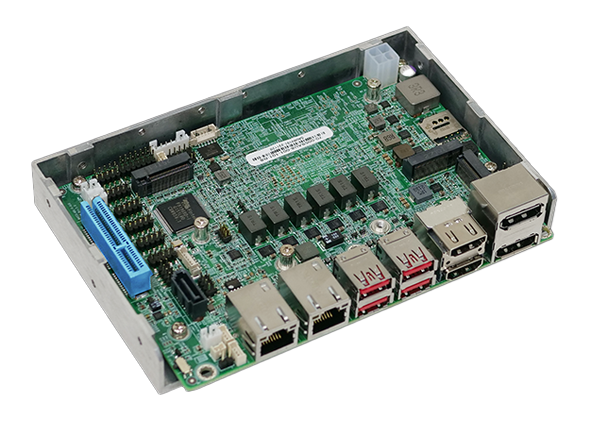

3.5 SBC supports Intel® Alder Lake-P Core™ i7/i5/i3 and Celeron® processor with 8GB LPDDR4x memory on board default, with DP ,HDMI™ ,dual 2.5 GbE, USB 3.2 gen 2, M.2, SATA 6Gb/s, COM, PCIe x4 for riser card and RoHS

KEY FEATURES:

  • Support 12th Intel® mobile AlderLake-P on board SoC
  • Support on-board LPDDR4x 3200 MHz 8GB memory, up to 16GB

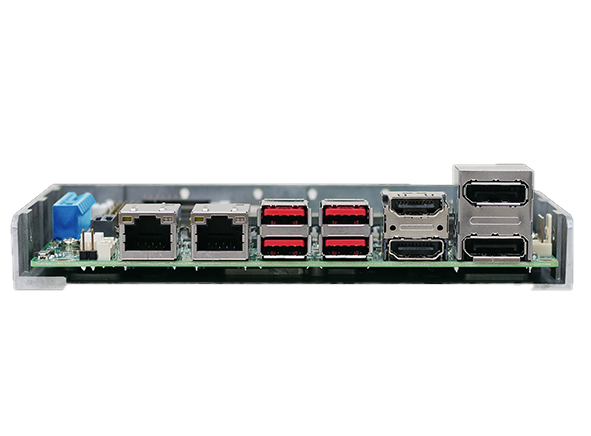

  • Support quadruple independent display via two HDMI™ and two DP
  • Support PCIe X4, M.2 M key, M.2 B key and M.2 A key expansion
  • Suport two 2.5GbE LAN with i225-V

ICP Electronics Australia is proud to introduce iEi’s WAFER-ADL-P. The world of Single Board Computers (SBC) has taken a quantum leap with iEi’s introduction of the WAFER-ADL-P 3.5 SBC. This cutting-edge SBC boasts support for the 12th generation Intel® mobile Alder Lake-P on board SoC, catering to the latest Core™ i7/i5/i3 and even Celeron® processors.

Memory isn’t an afterthought. The board comes equipped with a default 8GB LPDDR4x memory, which can be upgraded to 16GB, offering seamless multitasking at 3200 MHz.

Visuals are crisper and more immersive, thanks to the WAFER-ADL-P’s ability to support up to four independent displays. Users can utilize the dual HDMI™ and two DisplayPorts (DP) for unmatched graphics capabilities.

Connectivity and expansion remain pivotal for any modern SBC. iEi doesn’t disappoint with its inclusion of dual 2.5GbE LAN backed by the i225-V, USB 3.2 gen 2, and SATA 6Gb/s ports. Further expanding its versatility, the board offers PCIe X4, M.2 M key, M.2 B key, and M.2 A key expansion slots.

All these features are neatly wrapped in an environment-friendly package, adhering to RoHS standards. For enthusiasts and professionals alike, iEi’s WAFER-ADL-P 3.5 SBC is a testament to the future of compact computing.

Ordering Information

WAFER-ADL-P-i7C-R10 3.5 SBC supports Intel® Alder Lake-P Core™ i7-1255U Proccessor，with 8GB LPDDR4x memory on board default, with DP ,HDMI™ ,dual 2.5 GbE , USB 3.2 gen 2 , M.2, SATA 6Gb/s, COM,PCIe x4 for riser card and RoHS
WAFER-ADL-P-i5C-R10 3.5 SBC supports Intel® Alder Lake-P Core™ i5-1235U Proccessor，with 8GB LPDDR4x memory on board default, with DP ,HDMI™ ,dual 2.5 GbE , USB 3.2 gen 2 , M.2, SATA 6Gb/s, COM,PCIe x4 for riser card and RoHS
WAFER-ADL-P-i3C-R10 3.5 SBC supports Intel® Alder Lake-P Core™ i3-1215U Proccessor，with 8GB LPDDR4x memory on board default, with DP ,HDMI™ ,dual 2.5 GbE , USB 3.2 gen 2 , M.2, SATA 6Gb/s, COM,PCIe x4 for riser card and RoHS
WAFER-ADL-P-CC-R10 3.5 SBC supports Intel® Alder Lake-P Celeron® 7305 SoC Processor，with 8GB LPDDR4x memory on board default, with DP ,HDMI™ ,dual 2.5 GbE , USB 3.2 gen 2 , M.2, SATA 6Gb/s, COM,PCIe x4 for riser card and RoHS
