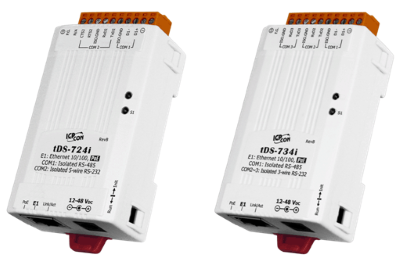

tDS-724i & tDS-734i

SKU 4882

The tDS-700 is a series of Serial-to-Ethernet device servers that are designed to add Ethernet and Internet connectivity to any RS-232 and RS-422/485 device, and to eliminate the cable length limitation of legacy serial communication. By using the VxComm Driver/Utility, the built-in COM port of the tDS-700 series can be virtualized to a standard PC COM port in Windows. Therefore, users can transparently access or monitor serial devices over the Internet/Ethernet without software modification.

  • Incorporates any RS-232/422/485 serial device in Ethernet
  • Data transmission via Virtual COM or raw TCP connection
  • VxComm Driver for 32-bit and 64-bit Windows XP/2003/2008/Vista/7/8/10
  • Max. connections : 1 socket per serial port is suggested
  • Supports pair-connection (serial-bridge, serial-tunnel) applications
  • Supports TCP client-mode and TCP server-mode operations
  • Supports UDP responder for device discovery (UDP Search)
  • Static IP or DHCP network configuration
  • Easy firmware update via the Ethernet (BOOTP, TFTP)
  • Tiny Web server for configuration (HTTP)
  • Contains a 32-bit MCU that efficiently handles network traffic
  • 10/100 Base-TX Ethernet, RJ-45 x 1 (Auto-negotiating, auto MDI/MDIX, LED Indicators)
  • Includes redundant power inputs: PoE (IEEE 802.3af, Class 1) and DC jack
  • Allows automatic RS-485 direction control
  • 3000 VDC Isolation and +/-4 kV ESD protection for i versions
  • Male DB-9 or terminal block connector for easy wiring
  • Tiny form-factor and low power consumption
  • RoHS compliant & no Halogen
  • Cost-effective device servers

tDS-724i CR: Tiny Device Server with PoE, 1 Isolated RS-232 and 1 Isolated RS-485 Ports (RoHS)
tDS-734i CR: Tiny Device Server with PoE, 2 Isolated RS-232 and 1 Isolated RS-485 Ports (RoHS)

  • ICP DAS
