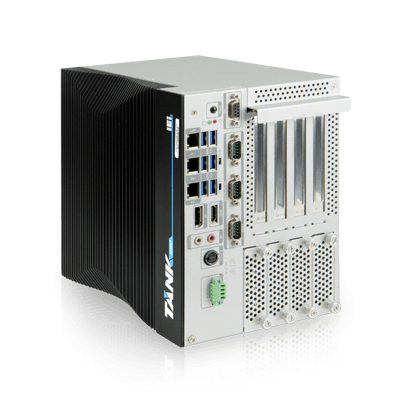

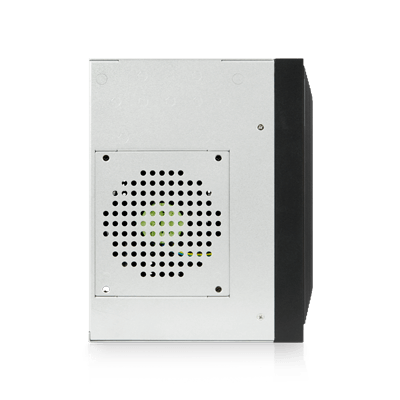

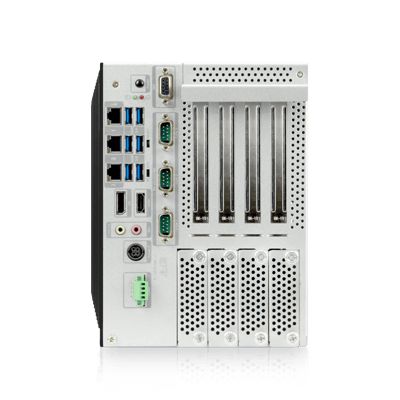

TANK-880-Q370

TANK-880-Q370 series is an embedded system for wide range temperature environments. It is powered by the 8th or 9th Generation Intel® Core™ Processor, which uses the Intel® Q370 chipset and supports two 260-pin DDR4 SDRAM SO-DIMM modules up to 64GB. 8GB of DDR4 SDRAM is preinstalled with the system.

  • 8th/9th Gen Intel® Core™ Processor Platform with Intel® Q370 Chipset and DDR4 Memory
  • Dual Independent Displays with High-Resolution Support
  • Rich High-Speed I/O Interfaces
  • On-Board Internal Power Connector for Providing Power to Add-On Cards
  • Four Accessible 2.5” HDD/SSD SATA 6 Gb/s Bay (with RAID 0/1/5/10 Support)
  • Great Flexibility for Hardware Expansion

TANK-880-Q370-i5R/8G/4A-R10: Ruggedized Fanless embedded system with Intel® i5-9500TE 2.2GHz, (up to 3.6Hz, 6-core, TDP 35W), 8GB DDR4 pre-installed memory, 1 x PCIe by 16 & 2 x PCIe by 4 & 1 x PCIe by 1 expansion, HDMI/DP, 9~36V DC, RoHS
TANK-880-Q370-i7R/8G/4A-R10: Ruggedized Fanless embedded system with Intel® i7-9700TE 1.8GHz, (up to 3.8GHz, 8-core, TDP 35W), 8GB DDR4 pre-installed memory, 1 x PCIe by 16 & 2 x PCIe by 4 & 1 x PCIe by 1 expansion, HDMI/DP, 9~36V DC, RoHS
