SEMIL-2000

19″/2 rack mount IP69K waterproof computer supporting Intel® 14th / 13th/ 12th-Gen Core™ processor with 2x M12 10GbE and 4x M12 PoE+ ports



Key Features:

  • IP69K waterproof computer
  • -40°C to 70°C wide-temperature fanless operation
  • 2x 10GbE, 1x GbE, and 4x 2.5GbE PoE+ via M12 X-coded connectors
  • 2x SocketCAN and 2x USB3.2 Gen1 Type-C w/ DP alternative mode
  • 8 to 48V wide-range DC input with reverse polarity protection and built-in ignition power control
  • MIL-STD-810H compliant

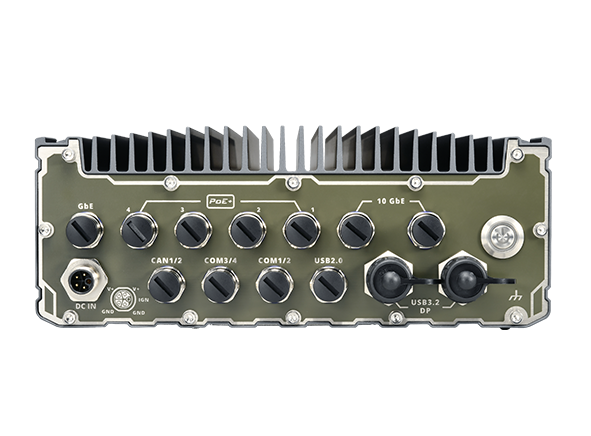

Backplane Systems Technology is pleased to present Neousys SEMIL-2000. The Neousys SEMIL-2000 series stands as a beacon of innovation in the rugged computing world, introducing a 19″/2 rack-mount, IP69K waterproof computer tailored for extreme conditions. It’s engineered to support Intel’s 14th/ 13th/ 12th-Gen Core™ processors, ensuring top-tier performance for the most demanding applications. This series is a testament to durability and versatility, featuring fanless operation within a -40°C to 70°C temperature range, making it an ideal choice for challenging environmental conditions.

Equipped with an array of connectivity options, the SEMIL-2000 offers 2x 10GbE, 1x GbE, and 4x 2.5GbE PoE+ ports via M12 X-coded connectors, alongside 2x SocketCAN and 2x USB3.2 Gen1 Type-C ports with DisplayPort alternative mode. This extensive connectivity suite, combined with 8 to 48V wide-range DC input, reverse polarity protection, and built-in ignition power control, underlines its suitability for a broad spectrum of industrial applications.

The design integrates a corrosion-resistant stainless steel and aluminum chassis, accommodating the harsh conditions of industrial environments. Internally, the system supports up to 64GB DDR5 memory and offers expansion slots for NVMe SSD and mini-PCIe, alongside two 2.5″ SATA SSD/HDD bays. Compliance with MIL-STD-810H standards attests to its resilience against shock and vibration, emphasizing the SEMIL-2000 series as a formidable choice for sectors requiring robust, waterproof computing solutions.

Ordering Information

SEMIL-2007

19″/2 rack mount IP69K waterproof computer supporting Intel® 14th/ 13th/ 12th-Gen Core™ processor with 2x M12 10GbE and 4x M12 PoE+ ports



Optional Accessories

PA-280W-CW6P-2P

280W AC-DC power adapter 24V 11.67A, 85~264VAC, -30~+70°C w/ Wafer FML6P to 2P End Terminal cable for AWP/SEMIL

PA-600W-C4PY-4P

600W AC-DC power adapter 24V 25A, 85~264VAC, -20~+70°C, w/ 4PY Terminal to 4P End Terminal cable for AWP/SEMIL

JPlate-SL

Joint plate for dual SEMIL assembly (for SEMIL-2000)

Rmkit-SL

Rack mount for single SEMIL (for SEMIL-2000)
