S19M-S24M

SKU 4637

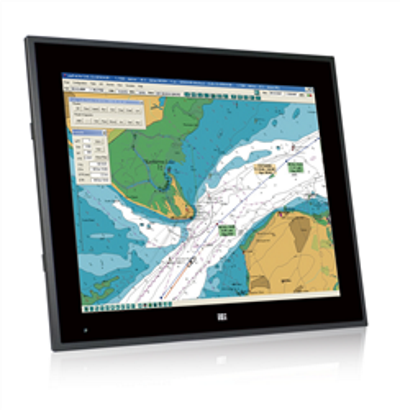

The S19M/S24M marine-grade monitor, equipped with IP 66 compliant front panel and IP 22 compliant rear cover, is the latest member of IEI’s line of sophisticated LCD designs. With two VGA, two DVI and one BNC inputs, the S19M/S24M provides multiple ways to connect with computers. In addition, one VGA and one BNC outputs allow simultaneous display on other monitors.

See PDF Data Sheet For more details

  • IP66 Front / IP22 Rear
  • -15°C ~ +55°C Wide Temperature and Flat-bezel Projected Capacitive Touchscreen
  • Excellent Visual Performance
    • Full OSD function configuration
    • 0%~100% full range dimming • 178°/178° wide viewing angles
  • Multiple Video Input
    • Two VGA, two DVI, and one BNC
  • Multiple Video Output
    • One VGA and one BNC
  • Dual Isolated AC/DC Input with Redundant Power Protection
  • Remote OSD Settings through LAN, RS-232, RS-422 and RS-485

S19M-AD/PC-R10: 19” SXGA 300cd/m² marine display with AC and DC redundant power, PCAP touchscreen, R10
S24M-AD/PC-R10: 24” FHD 300cd/m² marine display with AC and DC redundant power, PCAP touchscreen, R10

  • IEI Integration
