VPD-130-H/VPD-130N-H/132-H/132N-H/133-H/133N-H

SKU 4797

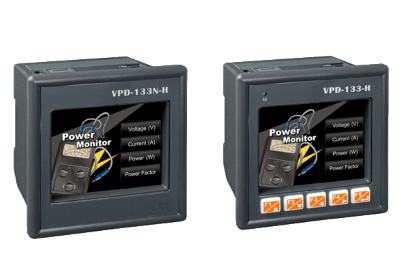

The TouchPAD VPD 3.5″ Series is a series of industrial touch HMI devices that features 3.5″ high-color high-resolution touch screen LCD. With touch screen capability, it is easy to be deployed into all kinds of automation systems, and make them more intuitive and efficient. No matter for new system installations or system retrofits implementation, VPD series stands out for its wide variety of communication options. Its built-in communication ports include RS-232/RS-485 and Ethernet interface; which make it easy for system integration and allows users to control, monitor I/O at the remote sides. It is also equipped with front-panel IP65 waterproof as well as the rubber keypad that make VPD series more reliable for rugged environments.

  • Excellent C/P ratio (cost/performance)
  • High-resolution color touch screen
  • RTC (Real Time Clock)
  • Serial communication interfaces
  • Supports Ethernet (VPD-133-H/133N-H)
  • Rubber Keypad (VPD-130-H/132-H/133-H)
  • GUI design
  • Free HMIWorks development tool
  • Supports C language and Lader Designer
  • Supports user-defined third party protocol (C language)
  • ESD Protection: 4 kV
  • Front Panel: IP65 Waterproof
  • I/O Expansion Boards: XV-Boards
  • Operating temperature: -20 ~ 50°C

VPD-130-H CR: 3.5” Touch HMI device with RS-232/RS-485, USB, RTC, Rubber Keypad (RoHS)
VPD-130N-H CR: 3.5” Touch HMI device with RS-232/RS-485, USB, RTC (RoHS)
VPD-132-H CR: 3.5” Touch HMI device with RS-232/RS-485, USB, RTC, Rubber Keypad, support XV-board (RoHS)
VPD-132N-H CR: 3.5” Touch HMI device with RS-232/RS-485, USB, RTC,support XV-board (RoHS)
VPD-133-H CR: 3.5” Touch HMI device with Ethernet, RS-232/RS-485, USB, RTC, Rubber Keypad, support XV-board (RoHS)
VPD-133N-H CR: 3.5” Touch HMI device with Ethernet, RS-232/RS-485, USB, RTC, support XV-board (RoHS)
