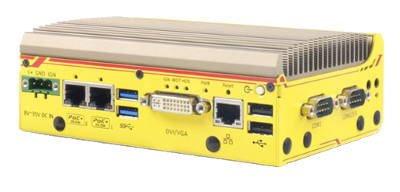

POC-351VTC

SKU 4795

The POC-251VTC is an ultra compact in-vehicle PC, produced by Neousys Technology and featuring:

  • Intel® Apollo Lake Atom™ E3950 Quad-Core Processor
  • Rugged -25°C to 70°C Fanless Operation
  • 2x IEEE 803.3at PoE+ ports and 1x GbE Port
  • 1x Isolated CAN Port for In-Vehicle Communication
  • 1x M.2 Socket and 3x Mini-PCIe Sockets
  • Aluminium Heat-Spreader for M.2/mPCIe Modules
  • 4-CH Isolated DI and 4-CH Isolated DO
  • 8~35V DC Input with Built-In Ignition Power Control

Please see the product PDF for more in-depth product specifications and do not hesitate to contact us if you have any questions.



  • Intel® Apollo Lake Atom™ E3950 quad-core processor
  • Rugged, -25 °C to 70 °C fanless operation
  • Two IEEE 803.3at PoE+ ports and one GbE port
  • One isolated CAN port for in-vehicle communication
  • One M.2 socket and three mini-PCIe sockets
  • Aluminum heat-spreader for M.2/ mPCIe modules
  • 4-CH isolated DI and 4-CH isolated DO
  • 8~35V DC input with built-in ignition power control

POC-351VTC: Intel Apollo Lake Atom™ E3950 Ultra-Compact In-Vehicle Controller with 1x GbE, 2x PoE+, and Isolated CAN

Optional Accessories:
– 64GB mSATA Mini SSD with Pre-Installed Windows 10 IoT English Version
– 128GB mSATA Mini SSD with Pre-Installed Windows 10 IoT English Version
– 12V, 60W AC/DC Power Adaptor
– Optional Vertical Wall-Mounting Bracket
