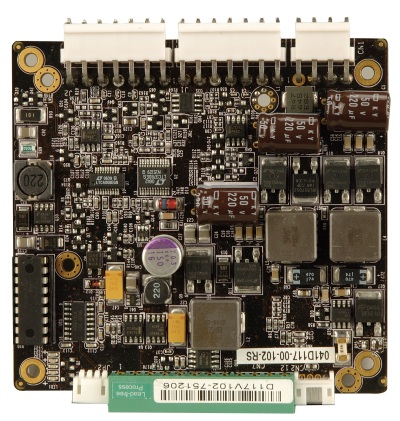

PM-P006UPS

SKU 2814

The highly efficient, high-performance PM-P006UPS DC-to-DC converter module provides 5V, 3.3V, 12V, -12V and 5VSB outputs. The PM-P006UPS supports up to two Li-Polymer smart batteries to provide stable and uninterruptible power. The power module also receives a wide range of inputs between 6V and 36V DC. The PM-P006UPS is built on an intelligent design and provides outstanding line and load regulations. The PM-P006UPS is capable of sustaining 90% power efficiency.

The PM-P006UPS power module also comes with the utility software that provides information on current power source, battery status, charging status and remaining percentage.

  • Load down protection
  • Over voltage protection
  • Short circuit protection
  • Over current protection
  • Smart battery charger for Lithium Ion
  • I/O interface: SMBus/I2C & RS-232
  • Support up to two battery packs
  • AT/ATX modes
  • Utility program: pull data out through RS-232 to a system

PM-P006UPS-R10: 65 W ATX DC/DC 6-36 VDC input, 12 V, 5 V, 3.3 V, -12 V and 5 VSB PC/104 power module with UPS

BAT-LI-2S2P3000-R10: Smart Battery, Lithium Ion, 2S2P, 3000 mAH

CB-JST3PSW001-RS: 30 cm power on/off switch cable
