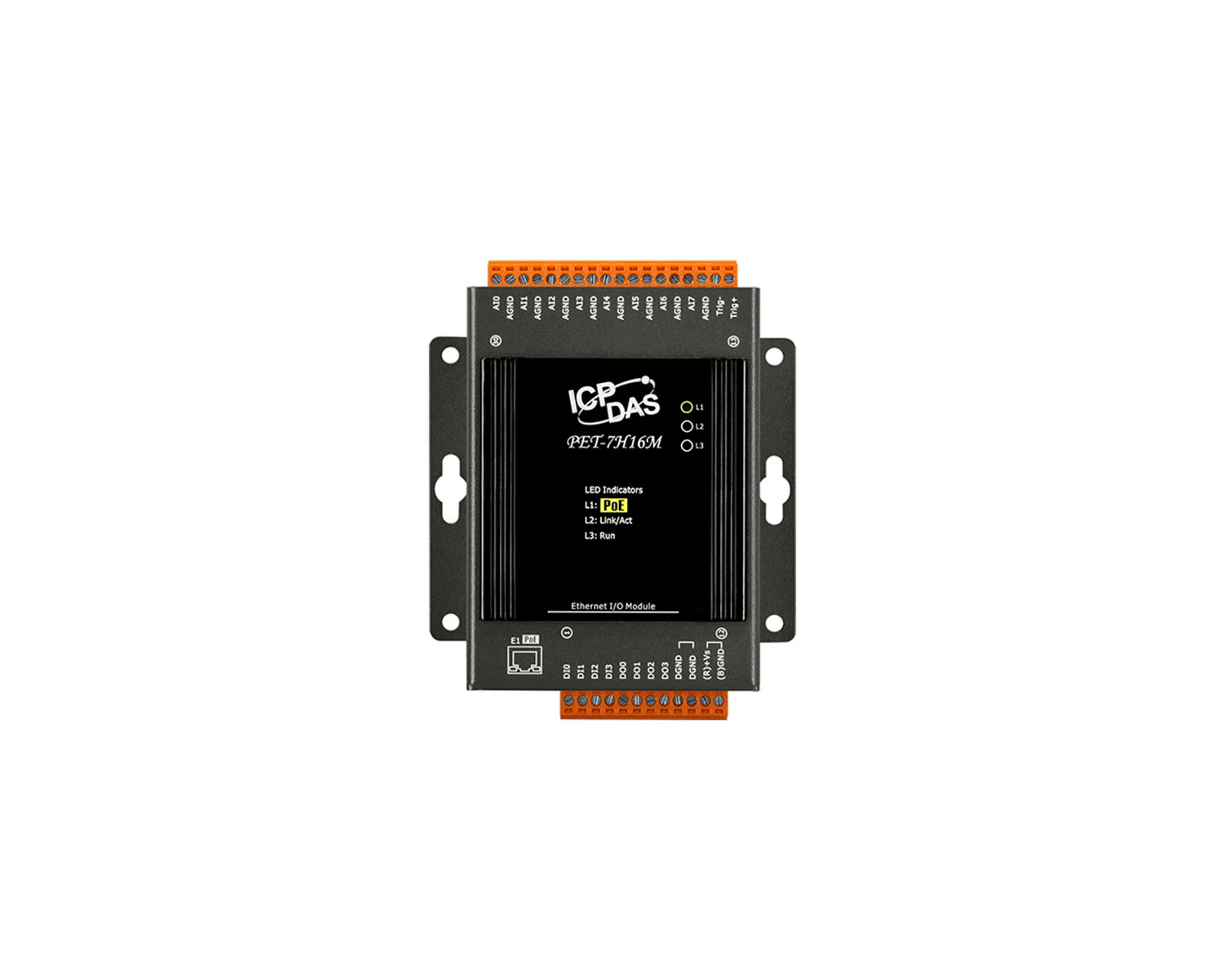

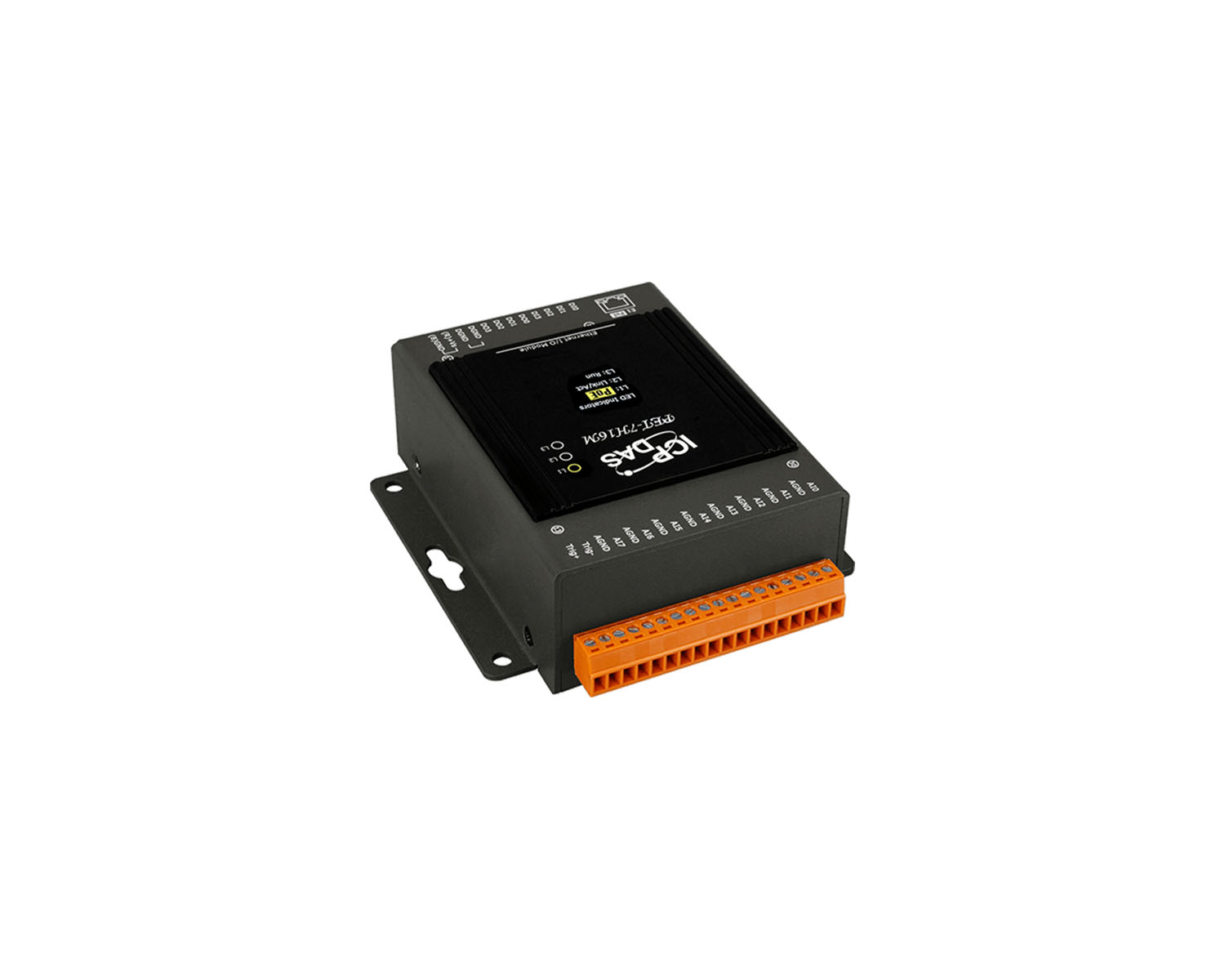

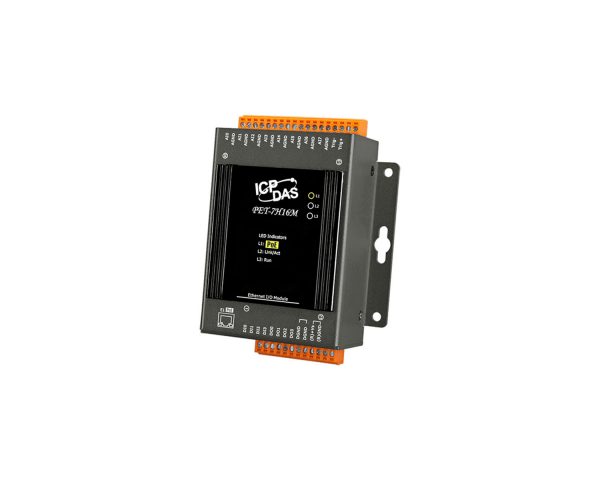

PET-7H16M

An high speed data acquisition devices built-in a Ethernet communication port for data transfer over the network and it includes eight high speed 16-bit single-ended analog inputs (200 KHz sample and hold for 8 channels), 4-channel digital inputs and 4-channel digital outputs

KEY FEATURES:

  • 8 Single-ended Analog Input Channels (16-bit Resolution)
  • 16-bit ADC with Built-in Anti-Aliasing Filter
  • Supports Real Sample and Hold
  • Sample Rate up to 200 kS/s
  • 4 x DO and 4 x DI Channels
  • 1 x High-Speed Counter and 4 x Low-Speed Counters (32-bit)
  • Continuous and N Data Sample Data Transmission Mode
  • A/D Trigger Mode
  • Software Support
  • Built-In 10/100BASE-T Auto-Negotiating, Auto MDI/MDI-X Ethernet Port
  • Option for External Power Supply or POE Supply
PET-7H16M     CR  PoE Ethernet High Speed Data Acquisition Module with 8-ch 16-bit Simultaneously Sampled AI, 4-ch DI, 4-ch DO (RoHS)
