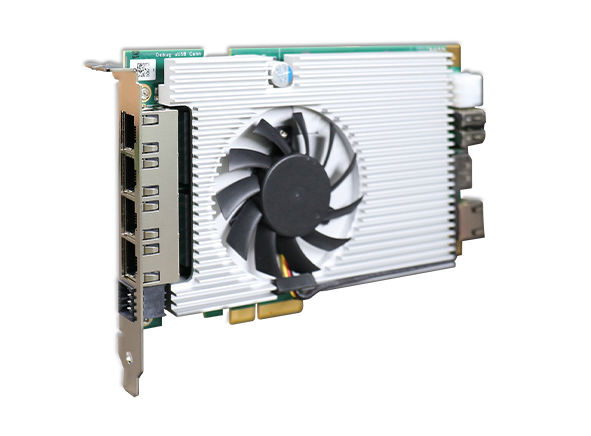

PCIe-NX154PoE

100 TOPS Intelligent Frame Grabber Card with 4x PoE+ ports for IVA or AI Inspection

Key Features:

Single-slot half-length PCIe card form factor

4x PoE+ 2.5 GbE ports with a 50W total power budget

100 TOPS AI inference performance capable of up to four simultaneous streams of 4K@30FPS video decoding

1x isolated RS-485 and 1x RS-232

x1 Gen2 PCI Express interface offering 2.5Gb/s

-25°C to 60°C operating temperature with airflow (No throttling at 60°C with Orin NX 20W TDP mode)

Compatible with Windows and Linux host computers

ICP Electronics Australia is pleased to present Neousys PCIe-NX154PoE. The Neousys PCIe-NX154PoE is a groundbreaking intelligent frame grabber card, designed to revolutionize modern vision inspection, intelligent video analytics, and surveillance applications. Powered by the NVIDIA® Jetson Orin™ NX system-on-module and bundled with JetPack 5.1.1, this card offers 100 INT8 TOPS AI performance through its 1024 CUDA cores, 32 Tensor cores, and 2 NVDLA® engines.

The PCIe-NX154PoE features a single-slot, half-length PCIe card form factor, making it easy to integrate into existing systems. It boasts four 2.5GbE PoE+ ports with a total power budget of 50W, enabling seamless connectivity and power for industrial GigE or IP cameras. This card can manage up to four simultaneous streams of 4K@30FPS video decoding, ensuring high-quality, real-time video processing.

Operating within a temperature range of -25°C to 60°C with airflow, the PCIe-NX154PoE ensures reliable performance without throttling, even at 60°C in Orin NX 20W TDP mode. It is compatible with both Windows and Linux host computers, providing versatility in deployment.

The PCIe-NX154PoE also includes isolated RS-485 and RS-232 interfaces and a x1 Gen2 PCI Express interface offering 2.5Gb/s for host communication. This makes it an ideal upgrade for legacy machine vision systems, leveraging deep learning for advanced image processing tasks such as object detection, classification, and facial recognition. The Neousys PCIe-NX154PoE sets a new standard in intelligent frame grabber cards, bringing powerful AI capabilities to next-generation computer vision applications.
