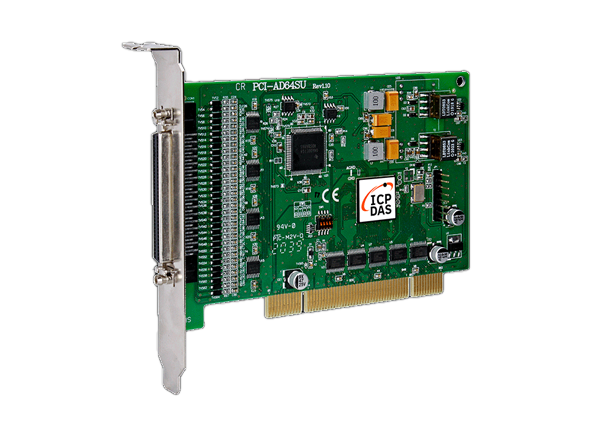

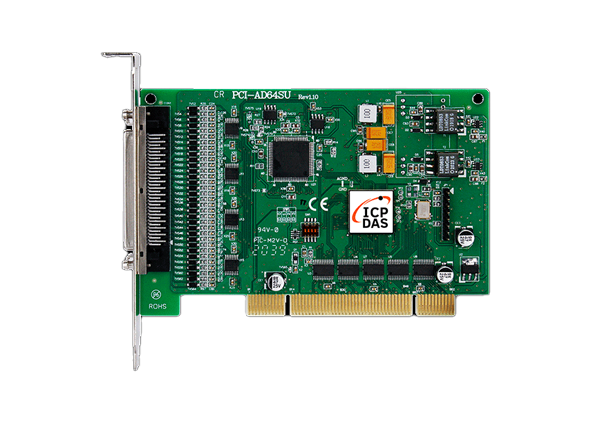

PCI-AD64SU

Universal PCI, 1 MS/s, 64-ch, 16-bit AI Board (4 K WORD FIFO)



KEY FEATURES:

  • Supports Universal PCI
  • CardID (SMD Switch)
  • 64 Single-ended/ 32 Differential analog input Channels
  • 16-bit ADC with Max. 1 MS/s Sampling Rate
  • 4096 sample Hardware FIFO for Analog Input
  • DLL and OCX SDK for 32-bit and 64-bit Windows 10/11
  • VB/VC/Delphi/BCB/VB.NET/C#.NET/VC.NET/MATLAB/Python sample programs with source codes

ICP Electronics Australia is proud to introduce ICP DAS’s PCI-AD64SU. PCI-AD64SU is a new product from ICP DAS. A high-resolution, high-channel-count analogue input card for the Universal PCI bus is called PCI-AD64SU. The majority of data acquisition applications can be used with up to 1 MS/s sampling rate and 16-bit resolution. 64 single-ended and 32 differential analogue input channels are provided by PCI-AD64SU.

A 4k-sample FIFO buffer for analogue input data is also included in the device. If two or more PCI-AD64SU boards are installed on the same computer, the onboard Card ID on the PCI-AD64SU enables the board to be recognised by the software.

A number of OS versions, including Windows 10/11 32/64-bit, are supported by these boards. To assist customers in rapidly and easily creating their own applications, DLL is offered along with a variety of language sample programmes based on Visual C++, Borland Delphi, Borland C++ Builder, Visual Basic, C#.NET, Visual Basic.NET, and LabVIEW.

Ordering Information

PCI-AD64SU CR Universal PCI, 1 MS/s, 64-ch, 16-bit Analog Input Board (4 K WORD FIFO) (RoH)
