Nuvis-534RT Series (Coming Soon)

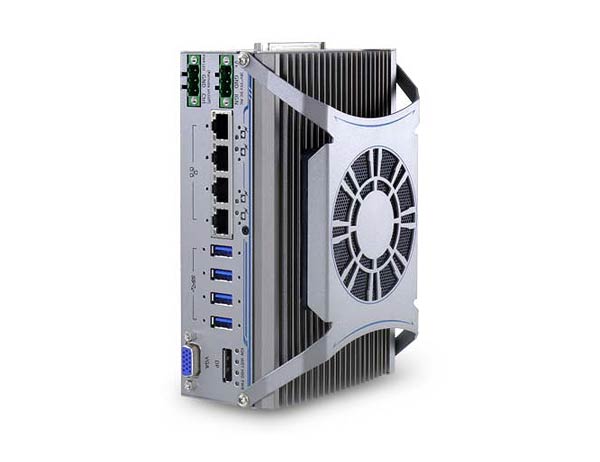

Nuvis-534RT is a high-performance, ultra-compact vision controller with integrated camera interfaces, vision-specific I/Os and real-time control for machine vision applications. Powered by AMD Ryzen™ Embedded V1807B 4-core/ 8-thread processor, it provides superb performances equivalent to mainstream desktop CPUs while retaining a compact 8.2 cm x 11.8 cm x 17.6 cm (3.4″ x 4.6″ x 6.9″) dimensions.

  • AMD Ryzen™ Embedded V1807B quad-core 45W CPU
  • Integrated vision-specific I/O
    • 4-CH CC/ CV lighting controller
    • 4-CH camera trigger outputs
    • 1-CH quadrature encoder input
    • 8-CH isolated DI and 8-CH isolated DO
  • Patented MCU-based, real-time I/O control by DTIO V2* and NuMCU

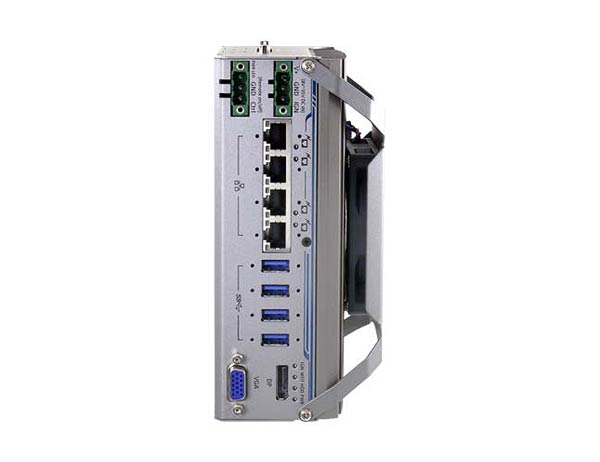

  • Built-in camera interfaces
    • Four Gigabit PoE+ ports with screw-lock
    • Four USB 3.1 Gen1 ports with screw-lock
  • M.2 2280 M key NVMe (Gen3 x2) socket for fast storage access

Nuvis-534RT offers unique vision-oriented I/O configurations, including constant-current lighting controller to directly drive LED lights, isolated 12V trigger output to activate cameras, encoder input to acquire position information and DIO to connect to sensors/ actuators. All of the above visionoriented I/Os can be managed by Neousys’ patented DTIO V2 or NuMCU technology to guarantee real-time trigger/ response in micro-second scale.

The combination of high performance and small footprint gives Nuvis-534RT a distinctive 1-2 punch advantage where the vision system can be easily deployed with USB 3.1 Gen1 and GigE cameras and without space restrictions.

Nuvis-534RT-DTIO: AMD Ryzen™ V1807B ultra-compact vision controller with vision-specific I/O and real-time control by DTIO

Nuvis-534RT-NuMCU: AMD Ryzen™ V1807B ultra-compact vision controller with vision-specific I/O and real-time control by NuMCU
