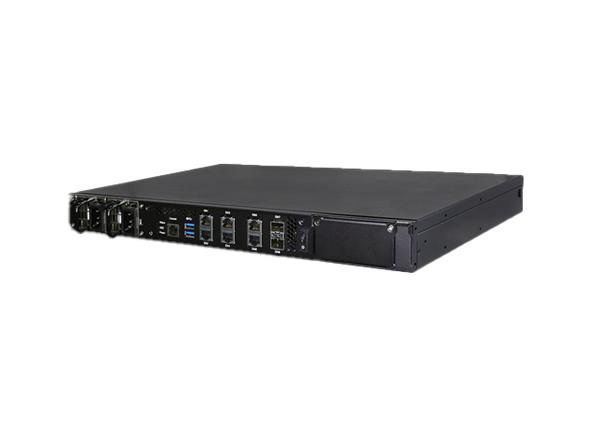

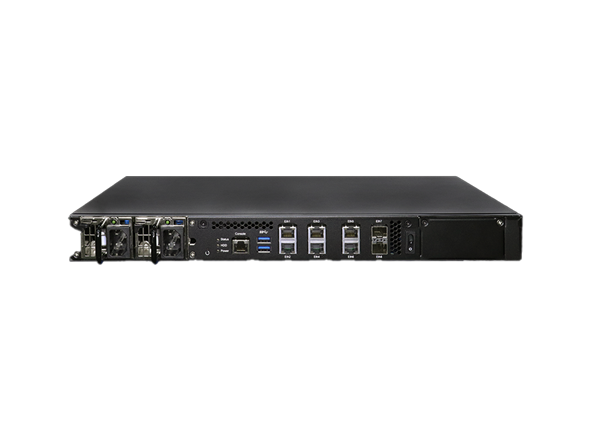

ICP Electronics Australia is pleased to present iBase’s INA3605. The iBase INA3605 is a highly capable 1U Enterprise Network Appliance that boasts the power of Intel® Xeon® E-2300 Processors. The appliance is equipped with the IBASE MBN808 motherboard that incorporates Intel® C252 PCH, two DDR4 slots, and a maximum configuration of 64GB ECC memory. It also features six 2.5G RJ45 GbE ports and two SFP ports, with an optional NIC slot that can support up to 16 GbE ports through additional ethernet module space.

The INA3605 is designed for deployment in various enterprise network applications, including IoT security, advanced threat protection, UTM, firewall, and VPN. With a single-socket Xeon E-2300 processor, the appliance can support 4, 6, or 8 cores with a TDP of up to 95W, allowing enterprise customers to handle compute-intensive workloads and meet the demands of next-generation networking infrastructure.

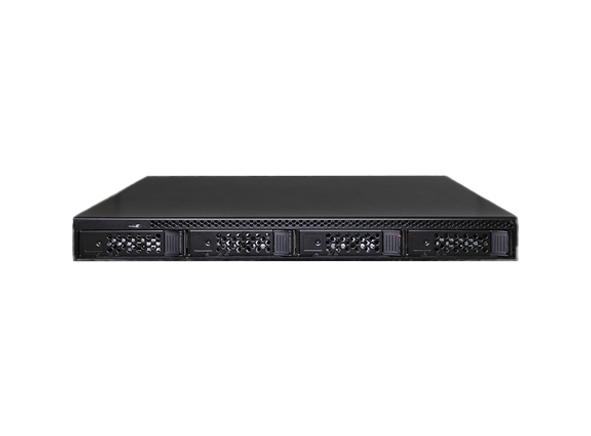

The INA3605 also features four U.3 storage on the front, supporting SATA and NVMe SSD drives with RAID 0, 1, 5, 6, 10, 50, and 60 via optional LSI RAID controllers. This enables great performance in both read and write operations, allowing for faster data processing and more efficient storage management.

Additionally, the INA3605 comes with a 600W 1+1 redundant power supply, ensuring that the system remains operational even if one power supply fails. This feature is critical in preventing system crashes, ensuring that the appliance maintains high uptime and availability.

Overall, the iBase INA3605 is a highly reliable and scalable 1U Enterprise Network Appliance that provides superior performance and excellent features, making it an ideal solution for various enterprise network applications.
