IB990

SKU 4793

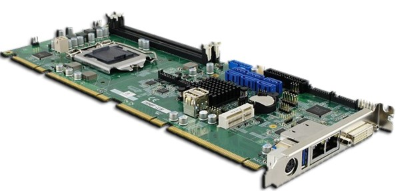

IB990 PICMG 1.3 full-size CPU card. The board supports the latest 7th/6th Generation Intel Xeon®/Core™ i7/i5/i3 processors with speeds up to 4.0GHz.

Based on the chipset family formerly known as Skylake, Intel® C236 and Q170 Express chipsets, the high-performance IB990 SBC is built with two DIMM sockets to support DDR4 2133 MHz memory modules with up to 32GB in total and six superfast SATA III ports featuring RAID 0/1/5/10 and 6 Gb/s speed.

See the Product PDF Datasheet for Full Specifications.

  • 7th/6th Generation Intel® Xeon® E3 / Core™ i7/i5/i3 / Pentium® / Celeron® QC/DC Processor, Up To 4.0 GHz 2x DDR4- 2133 DIMM, Max. 32GB, ECC Compatible
  • Intel® Processor Integrated Graphics Device, supports DVI-I, CRT, DVI-D
  • 2x Intel® PCI-E Gigabit LAN
  • 3x USB3.0, 2x USB2.0, 4x COM, 6x SATA III
  • 1x Mini PCI-E Slot
  • Watchdog Timer, Digital I/O, iAMT(11.0)

IB990AF-C236: LGA1151 C236 PICMG 1.3 Full-Size CPU Card w/ DVI-I, VGA,
DVI-D, dual Gigabit LAN, iAMT (11.0), 6x SATA III
IB990AF: LGA1151 Q170 PICMG 1.3 Full-Size CPU Card w/ DVI-I, VGA,
DVI-D, dual Gigabit LAN, iAMT (11.0), 4x SATA III
