IB919

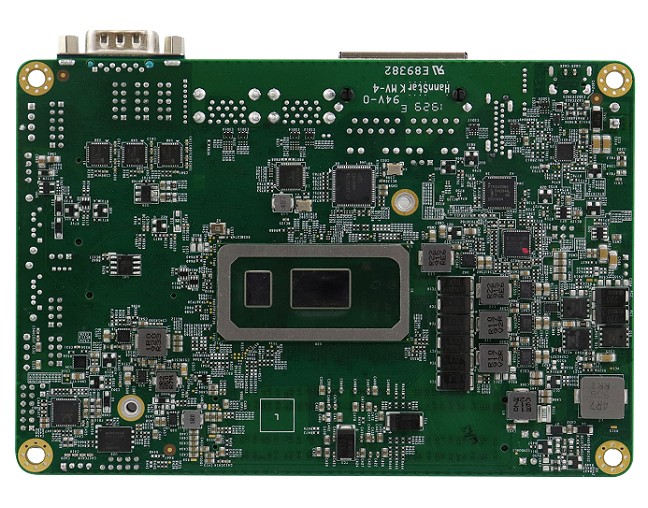

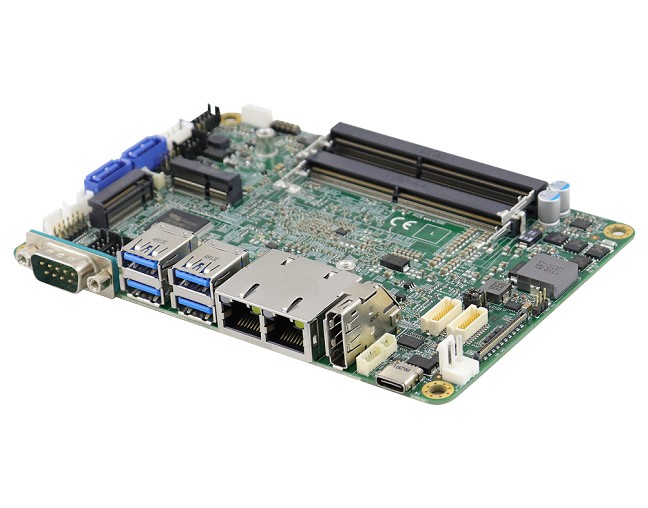

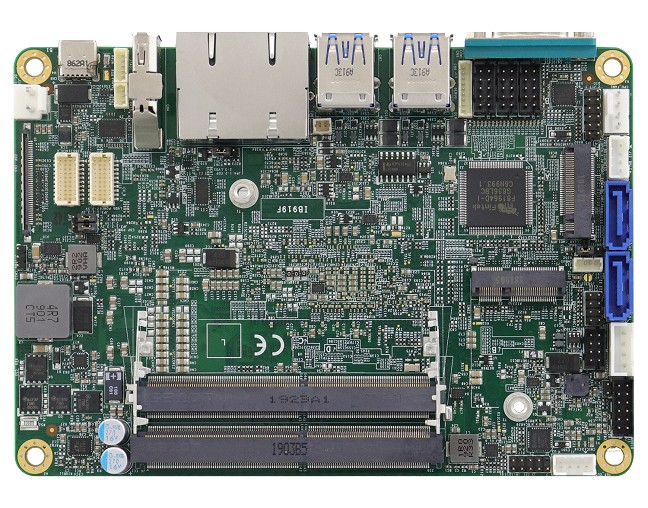

The IB919 3.5-inch single board computer is based on 8th Generation Intel® Core™ i7/i5/i3 and Celeron® 4000 processors (codenamed Whiskey Lake-U) built on a further refined 14nm++ manufacturing process, offering greater computing and graphics performance than the previous generation. IBASE expands its portfolio of long-term available products with the launch of the IB919 3.5-inch SBC equipped with USB Type-C, 9V~24V wide-range DC input and optimized Thermal Design Power (TDP) of 15W that allows designers to configure systems with performance and low-power requirements. With a 15-year life cycle, the guaranteed availability ideally fits customer demands for their current and upcoming programs in smart retail, transportation, healthcare, and smart factory applications even in large field deployments.

  • Onboard 8th Gen Intel® Core™ i7/i5/i3/ Celeron® processor
  • 2x DDR4-2400 SO-DIMM, Max.32GB, Non-ECC
  • 2x DisplayPort (DP connector & Type C), eDP or 24-bit dual-channel LVDS
  • 2x Intel® PCI-E GbE LAN
  • Watchdog timer, Digital I/O, TPM (2.0)
  • 2x USB 2.0, 4x USB3.1 (Type A), 1x USB Type-C, 2x SATA III
  • 2x M.2 sockets (M/E-Key)



The IB919 comes in two series, the IB919AF (Core™ i7-8665UE, i5-8365UE) and IB919EF (i3-8145UE, Celeron 4305UE), both of which feature up to 32GB DDR4-2400 memory in dual channel and dual Intel Gigabit Ethernet. The board drives up to three independent displays with two DisplayPort (DP & Type C) and eDP or 24-bit dual-channel LVDS interface. Peripheral and external connections are made with a wide selection of interface via two M.2 slots (M2280 & E2230) for NVMe drives and CNVi wireless connectivity, four COM, two SATA III, four USB 3.1 Gen2 (10Gb/s), two USB 2.0 and a USB Type-C connector.

The IB919 provides remote system management with iAMT (11.6), enhanced systems security using a Trusted Platform Module (TPM) chip and extended operating temperature range of 0°C to 60°C with optional thermal solutions and cable kits. It runs on both Windows 10 and Linux Ubuntu operating systems.

IB919AF-8665: 3.5″ Intel® Core i7-8665UE (1.7GHz/4.4GHz) onboard, w/ I211AT GbE LAN + I219LM GbE LAN, USB Type C (USB 3.1+DP), VGA (DispalyPort + DP or LVDS), 2x SATA III, 4x COM, 2x M.2 (M2280 & E2230), DC-in (9V~24V), Support iAMT 11.0, TPM (2.0), Optional Heatsink, w/o cable kit, (RoHS)
IB919AF-8365: 3.5″ Intel® Core i5-8365UE (1.6GHz/4.1GHz) onboard, w/ I211AT GbE LAN + I219LM GbE LAN, USB Type C (USB 3.1+DP), VGA (DispalyPort + DP or LVDS), 2x SATA III, 4x COM, 2x M.2 (M2280 & E2230), DC-in (9V~24V), Support iAMT 11.0, TPM (2.0), Optional Heatsink, w/o cable kit, (RoHS)
IB919EF-8145: 3.5″ Intel® Core i3-8145UE (2.2GHz/3.9GHz) onboard, w/ I211AT GbE LAN + I219V GbE LAN, USB Type C (USB 3.1+DP), VGA (DispalyPort + DP or LVDS), 2x SATA III, 4x COM, 2x M.2 (M2280 & E2230), DC-in (9V~24V), EuP/ErP, TPM (2.0), Optional Heatsink, w/o cable kit, (RoHS)
IB919EF-4305: 3.5″ Intel® Celeron® 4305UE (2.0GHz) onboard, w/ 211AT GbE LAN + I219V GbE LAN, USB Type C (USB 3.1+DP), VGA (DispalyPort + DP or LVDS), 2x SATA III, 4x COM, 2x M.2 (M2280 & E2230), DC-in ( 9V~24V), EuP/ErP, TPM (2.0), Optional Heatsink, w/o cable kit, (RoHS)

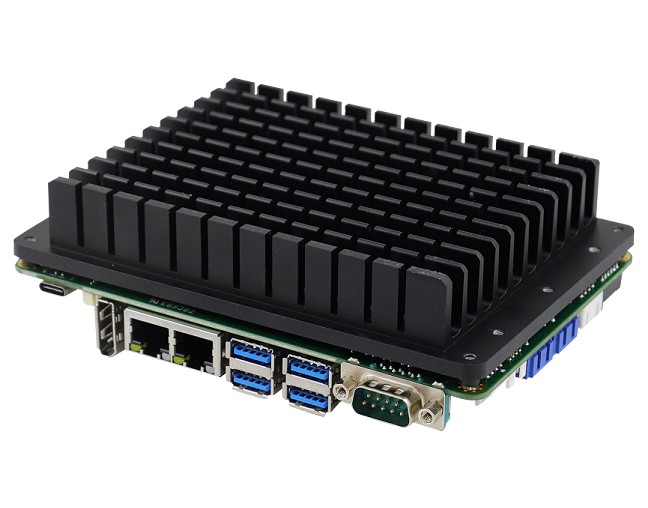

HSIB919-A: Heatsink for IB919
IB76A-1: Cable Kit w/USB, COM, Power cable, SATA+Power cable for IB919 series
