I-8430/ I-8830 & I-8430-G/ I-8830-G

SKU 2878

The I-8430 and I-8830 are embedded Ethernet I/O units using DCON Protocol Firmware.ICPDAS provides various I/O modules, such as analog input/output, digital input/output and counter/frequcncy modules, which can be used in remote data acquisition and control applications for environment monitoring, power management and factory automation, etc via Ethernet Port or RS-232 Port.

  • Supports IPv4.
  • Supports the  Ethernet or RS-232 communication interface.
  • Supports DCON communication protocol
  • Dual Bus designed to supports I-8K and I-87K series I/O modules, such as DI/DO, AI/AO, Counter/Frequencymodules
  • Compact I/O Expansion slot allows the quick installation of various 8K and 87K I/O modules
  • By using the VxComm Utility, PC can use Virtual COM Port to communicate with the remote Ethernet I/O.
  • Note: Remote Ethernet I/O must support XServer to have
  • Virtual COM Port function. Vxcomm /O configurable using DCON Utility via Ethernet port or R S-232 Port.
  • Firmware updated via the RS-232 port
  • Firmware auto scan AI modules and can map alarm to DO modules on the slots.
  • Dual Watch Dog mechanism enable I-8000 system can work reliablely under harsh environment.
  • Ventilated housing designed to operate between –25°C to+75°C
  • Using DIN rail clips or Screw poles around the corners allows the control unit to be easily mounted on the control box
  • Frame Ground provides a path for bypassing ESD, allowing enhanced static protection (ESD) capability and ensures that the module is more reliable.
  • Various SDKs provided ( free )DLL, ActiveX, Labview driver, Indusoft driver, Linux driver, OPC server, etc

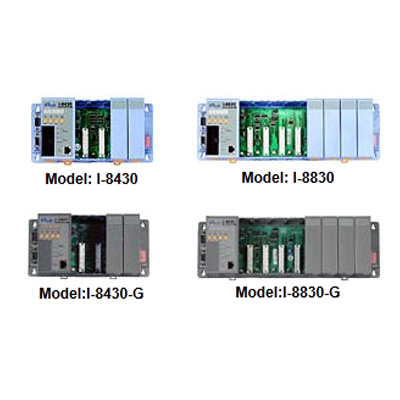

I-8430: I-8430 Embedded I/O unit

I-8830: I-8830 Embedded I/O unit

I-8430-G: I-8430 Embedded I/O unit with gray color

I-8830-G: I-8830 Embedded I/O unit with gray color
