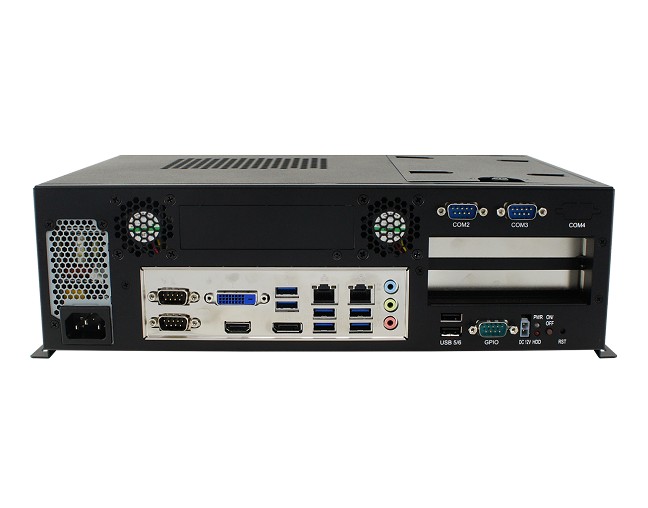

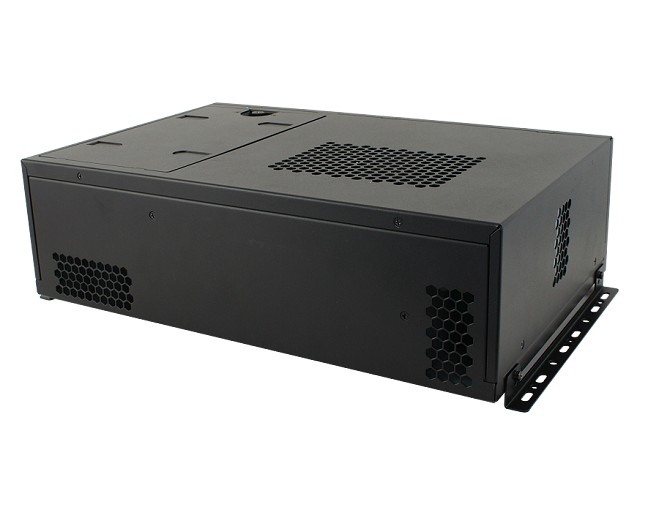

Designed for automation control applications, the Intel® Xeon® Processor E3-1505M v6-based CMI203-992-AI(CMI203-MI992VF-X3G) embedded system offers powerful computing and supports 2x PCI-E (x16) slots with (x8) signal, which can be combined with PoE card as a machine vision solution. It can train machines to classify items based on quality and can be expanded with a GPU or FPGA card to enhance AI calculation in deep learning to discover different quality levels and reduce the possibility of misjudgment. Applications would include those in smart factory, smart city or other fields that require real-time analysis and judgment.

  • Onboard Intel® Xeon® Processor E3-1505M v6
  • 2x DDR4 SO-DIMM, Max 32GB, ECC
  • Intel® processor integrated graphics, supports DVI-D, HDMI 1.4, DisplayPort and 24-bit Dual channel LVDS
  • 2x Intel® Gigabit LAN
  • 2 x PCI-E (x8) based on PCI-E (x16) connectors for Nvidia GPU card options
  • 1x Mini PCI-E, 1x mSATA, 1x M.2
  • Watchdog timer, Digital I/O, iAMT 11.6, TPM 2.0, vPro, iSMART

CMI203-MI992VF-X3G: Industrial AI Computer with MI992VF-X3G w/ Intel® Xeon® Processor E3-1505M v6 and 32GB DDR4 Memory + IP118 riser card, 250W Power adaptor, 2.5” HDD holder, 1x PCI-E (x16) expansion slots with PCI-E (x8) signal w/o HDD, memory (RoHS)
