ASB200-953

Slim Fanless System with IBASE IB953 3.5″ Single Board Computer



Key Features:

  • Fanless system with IBASE IB953 3.5’’ Single Board Computer (TDP 15W)
  • Onboard 11th Gen Intel® Core™ U-Series Processor
  • Supports 3x M.2 sockets (B-Key/E-Key and M-Key)
  • 12V (-10%) ~ 24V (+10%) DC-in power input
  • 2x DDR4-3200 SO-DIMM, Max. 64GB
  • 3x USB 3.1, 1x USB 2.0, 2x Intel® GbE, 1x COM
  • External GPIO, 2x DisplayPort, TPM (2.0)
  • Optional VESA mount bracket

ICP Electronics Australia is pleased to present iBase’s ASB200-953. Welcome to the future of compact computing – the iBase ASB200-953, a sleek, fanless box PC with the power-packed IBASE IB953 3.5-inch Single Board Computer. Built to excel, it features 11th Gen Intel® Core™ processors and an impressive 15W TDP threshold.

Tailor-made for smart applications, ASB200-953 is a game-changer in warehouse logistics, factory automation, and automotive industries. With a focus on high performance and energy efficiency, it supports a staggering 64GB in dual SO-DIMM slots and boasts a 12V~24V wide-range DC power input.

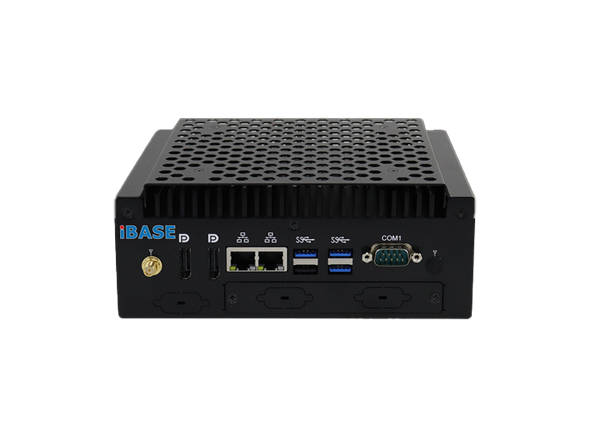

What’s more? The system is loaded with essential I/O ports, including 3x USB 3.1, 2x DisplayPort, and 2x GbE ports upfront. The rear panel brings digital I/O, DC-in terminal block, and dual antenna holes that sync seamlessly with an optional WiFi kit.

The ASB200-953’s design is unmatched – a chic black chassis with an anti-scalding net, occupying a mere 180x150x72mm space. The system is 5G-ready, supports dual storage (2280 NVMe SSD & 2.5-inch HDD), and incorporates Trusted Platform Module (TPM 2.0) security. It’s compatible with Windows 10 and Linux Ubuntu, ensuring versatile application across platforms.

In essence, iBase’s ASB200-953 is the embodiment of innovation, power, and compactness, ready to redefine industry standards.

Ordering Information

ASB200-953-i7M Fanless chassis with IB953AF-i7, Intel® i7-1185G7E CPU, 1x COM, 2x DDR4 memory slot, 1x 2.5’’ SSD slot, desktop stand & mounting bracket, w/o memory/ SSD/ 90W power adaptor and VESA mount bracket
ASB200-953-i5M Fanless chassis with IB953AF-i5, Intel® i5-1145G7E CPU, 1x COM, 2x DDR4 memory slot, 1x 2.5’’ SSD slot, desktop stand & mounting bracket, w/o memory/ SSD/ 90W power adaptor and VESA mount bracket
ASB200-953-i3M Fanless chassis with IB953EF-i3, Intel® i3-1115G4E CPU, 1x COM, 2x DDR4 memory slot, 1x 2.5’’ SSD slot, desktop stand & mounting bracket, w/o memory/ SSD/ 90W power adaptor and VESA mount bracket
ASB200-953-CEL-M Fanless chassis with IB953EF-CEL, Intel® Celeron® 6305E CPU, 1x COM, 2x DDR4 memory slot, 1x 2.5’’ SSD slot, desktop stand & mounting bracket, w/o memory/ SSD/ 90W power adaptor and VESA mount bracket
90W power adaptor (optional) 90W (24V@3.75A) power adaptor, bare wire type compatible with IEC62368-1/EN62368-1 [PN: A005PS090W0100700P]
Optional Accessories VESA mount kit [PN: SC2ASB2—-0A1200R] Wifi antenna kit [PN: A024MDWIFI0042400P (Intel® 9260 ) + SC2WIFI—-A10M00R (WiFi Kit)]
