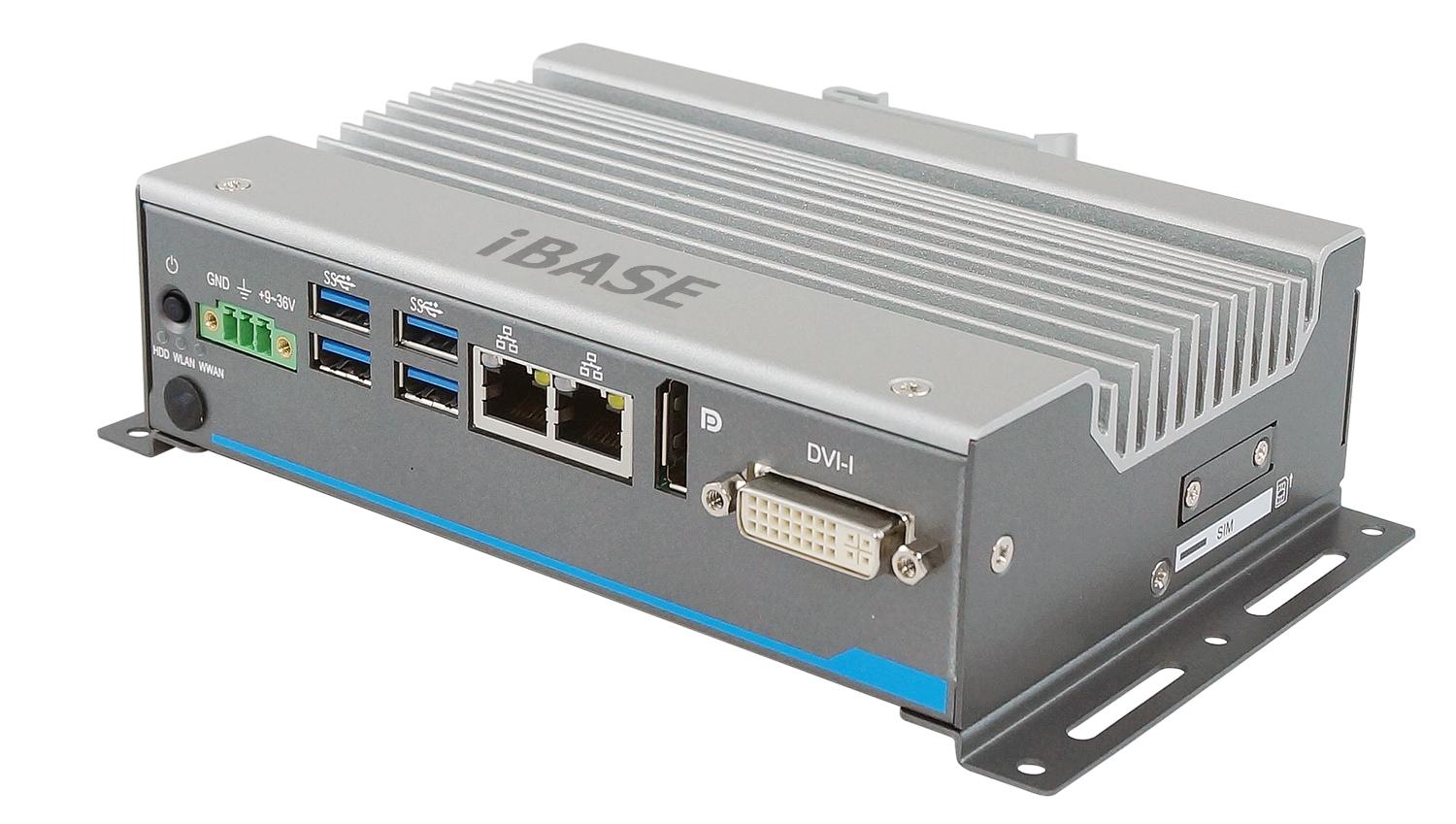

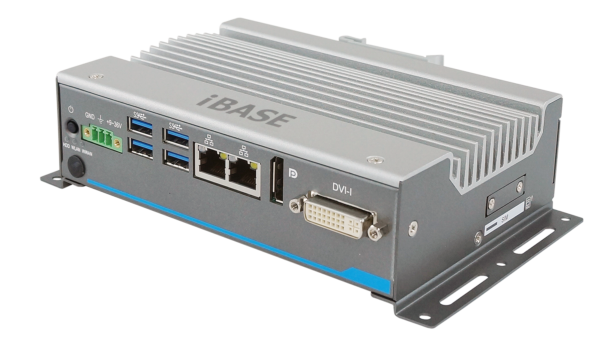

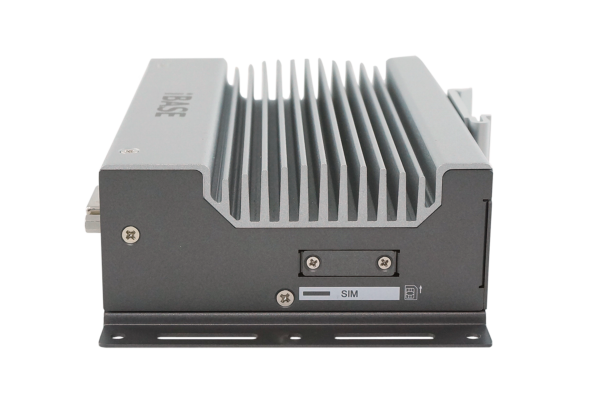

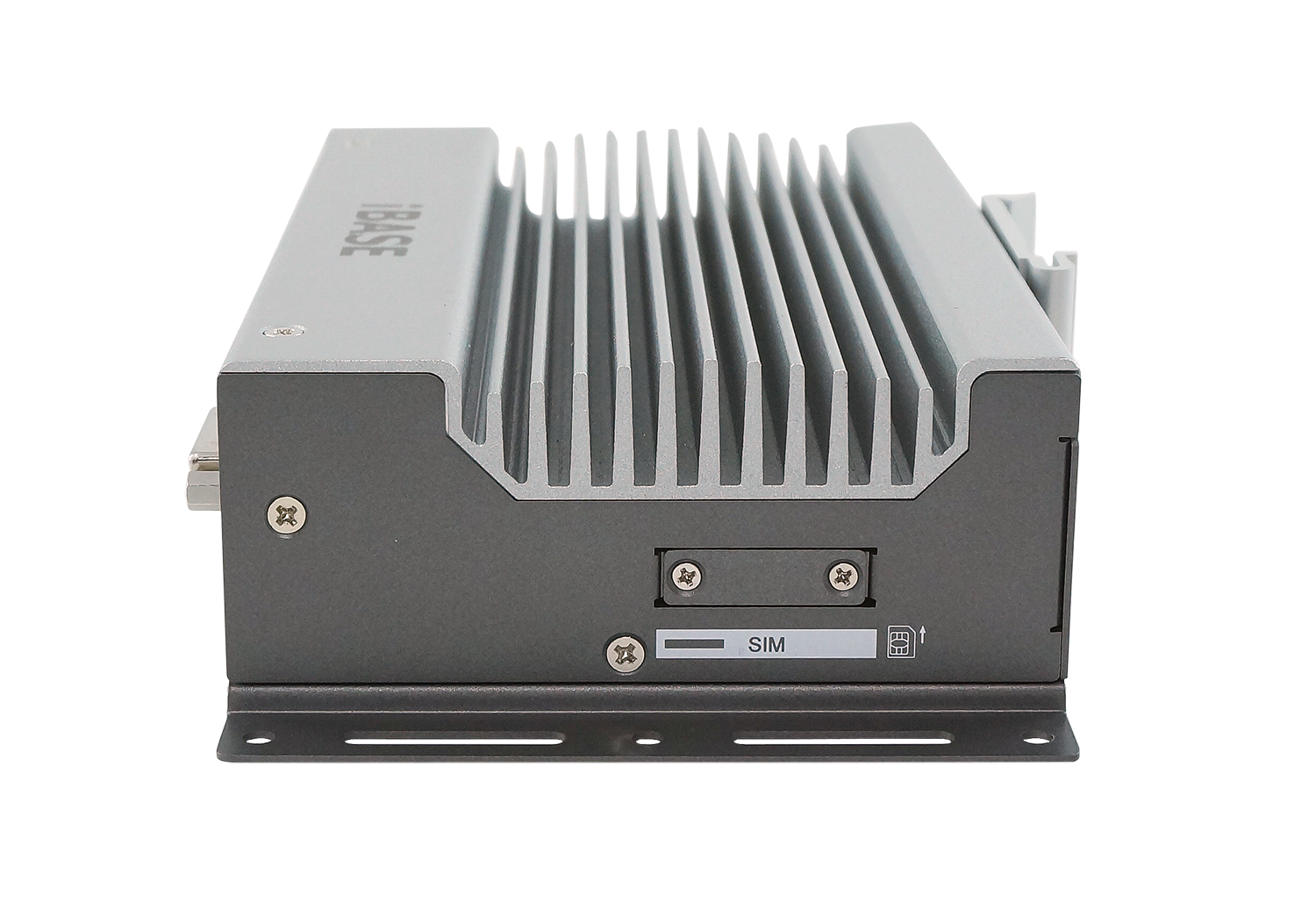

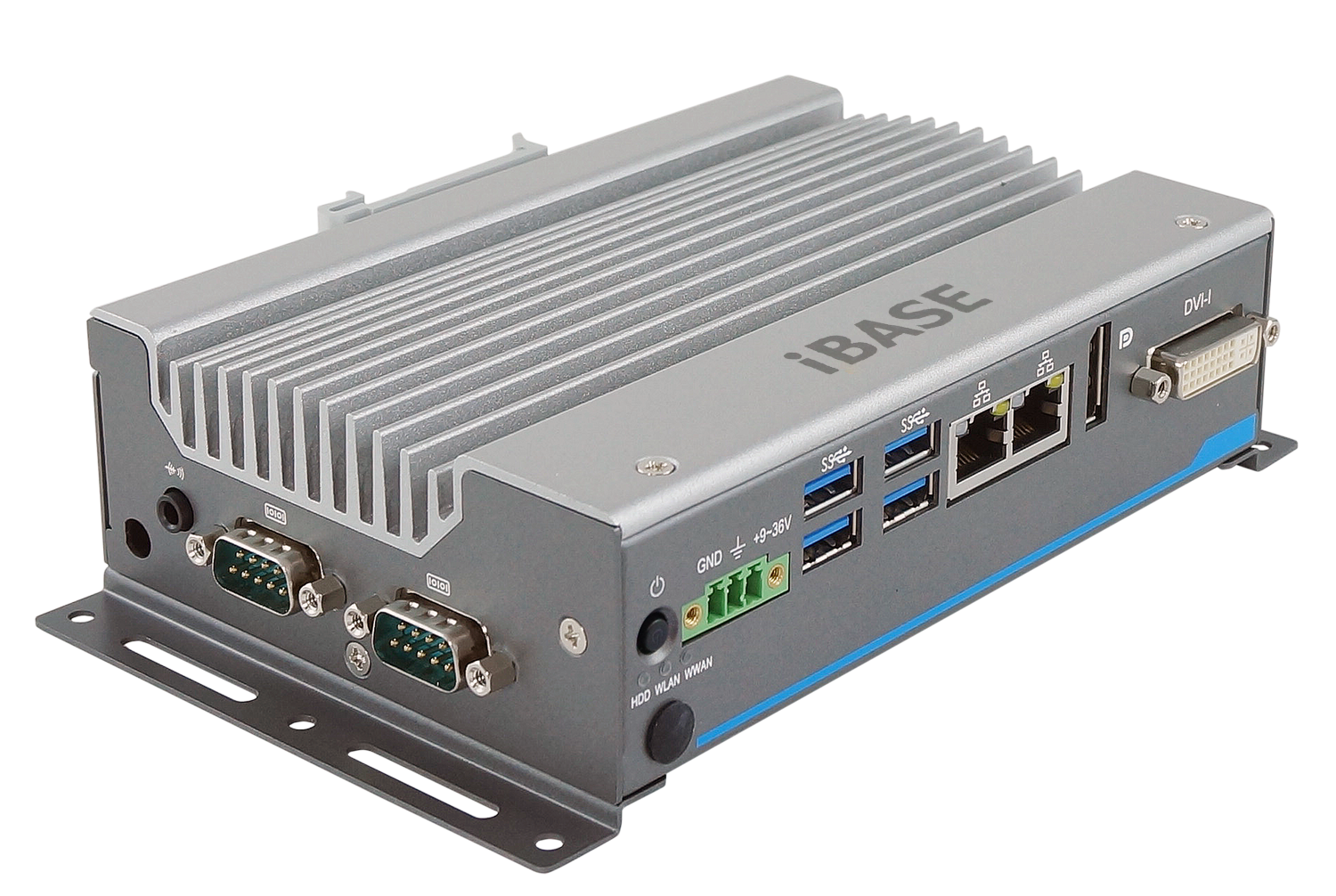

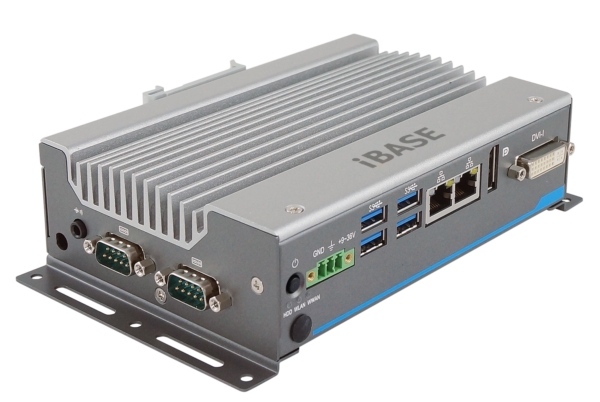

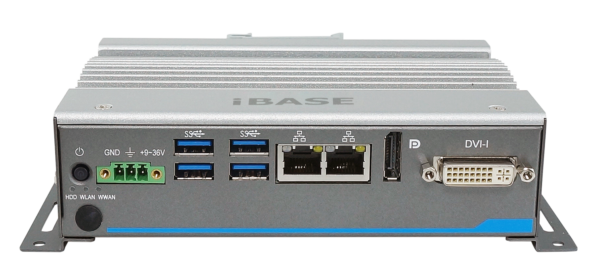

AGS100T

The AGS100T IoT gateway computer is powered by Intel’s Apollo Lake Atom™ x7/x5 series, Pentium® N4200, and Celeron® N3350 SoCs. It enables seamless and secure data flow to the cloud in IoT-focused applications with enterprise-grade security, and easy manageability.

The rugged AGS100T features 4GB DDR3L-1866 DO-DIMM, a 64GB MLC industrial-grade mSATA SSD, dual display ports (DVI-I and DisplayPort), 4x USB 3.0, 2x GbE, 2x COM, a DC-in terminal block for 9V~36V input and over/under/reverse voltage protection. Expansion is available with a full-size Mini PCI-E, a 2230 M.2 E-Key socket for WLAN & BT, a 3042 M.2 B-Key socket for WWAN & SSD, an mSATA socket (Mini PCI-E), and a 2242 M.2 B-Key socket for mSATA SSD.

  • Intel® Atom™ x7-E3950/x5-E3940/x5-E3930 & Pentium® N4200 / Celeron® N3350 Series processors
  • Over/Under/Reverse voltage protection
  • Wide-range operating temperature from -40°C to 70°C
  • 9V~36V DC wide-range power input
  • Rugged and fanless design
  • Supports DIN-rail mount & wall mount & TPM2.0
  • 2x serial ports (RS232/422/485)

AGS100T-I50: Fanless DIN-rail System supports TPM2.0 w/ Intel® Atom™ processor x7-E3950, 2x COM, 1x 4GB DDR3L industrialgrade memory, 1x 64GB MLC industrial-grade mSATA SSD, w/o power adaptor
AGS100T-I40: Fanless DIN-rail System supports TPM2.0 w/ Intel® Atom™ processor x5-E3940, 2x COM, 1x 4GB DDR3L industrialgrade memory, 1x 64GB MLC industrial-grade mSATA SSD, w/o power adaptor
AGS100T-I30: Fanless DIN-rail System supports TPM2.0 w/ Intel® Atom™ processor x5-E3930, 2x COM, 1x 4GB DDR3L industrialgrade memory, 1x 64GB MLC industrial-grade mSATA SSD, w/o power adaptor
AGS100T-420: (MOQ) Fanless DIN-rail System supports TPM2.0 w/ Intel® Pentium® processor N4200, 2x COM, 1x 4GB DDR3L industrial-grade memory, 1x 64GB MLC industrial-grade mSATA SSD, w/o power adaptor
AGS100T-335: Fanless DIN-rail System supports TPM2.0 w/ Intel® Celeron® processor N3350, 2x COM, 1x 4GB DDR3L industrialgrade memory, 1x 64GB MLC (industrial-grade) mSATA SSD, w/o power adaptor
60W power adaptor (optional): 60W (12V@5A) power adaptor (bare wire type)
Optional Accessories: WiFi/BT antenna kit, 4G/LTE antenna kit, GPS antenna kit
