AFL3-W19C-ULT3

SKU 4831

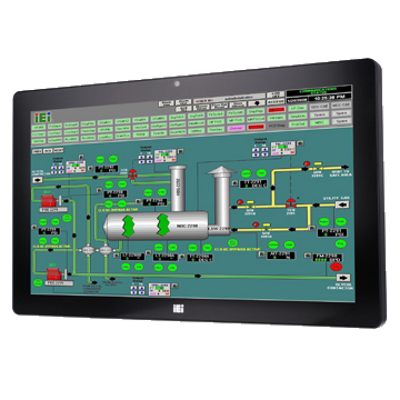

The AFL3-W19C-ULT3 series is a quad-core Intel® Core™ i5-6300U or Intel® Celeron® 3955U powered flat bezel touchscreen panel PC with a rich variety of functions and peripherals. The flat-bezel design is ideal for easy and simplified integration into various applications.

The Intel® Core™ i5-6300U / Celeron® 3955U is a System-on-Chip (SoC) that ensures optimal memory, graphics, and peripheral I/O support. The system comes with 4.0 GB of DDR4 SO-DIMM memory ensuring smooth data throughputs with reduced bottlenecks and fast system access.

  • W19” light industrial interactive panel PC
  • 9 V ~ 30 V wide range DC power input
  • Selectable AT/ATX power mode
  • Built-in speakers
  • One mSATA slot
  • IP64 compliant front panel
  • IEI One Key Recovery solution alllows you to create rapid OS backup and recovery (suggested with over 4GB storage capacity)

AFL3-W19C-ULT3-C/PC/4G-R10: Wide 18.5” 250 cd/m² 1366 x 768 Panel PC with withIntel® 14nm 6th Generation Mobile Celeron® 3955U (15W) on-board Processor (ULT), 1*4GB DDR4 RAM, 802.11a/b/g/n/ac WiFi module, PCAP touch, 2 M camera, microphone, R10

AFL3-W19C-ULT3-i5/PC/4G-R10: Wide 18.5” 250 cd/m² 1366 x 768 Panel PC with Intel® 14nm 6th Generation Mobile Core™ i5-6300U (15W) on-board Processor (ULT), 1*4GB DDR4 RAM, 802.11a/b/g/n/ac WiFi module, PCAP touch, 2 M camera, microphone, R10



  • IEI Integration
