AFL3-W07A-AL

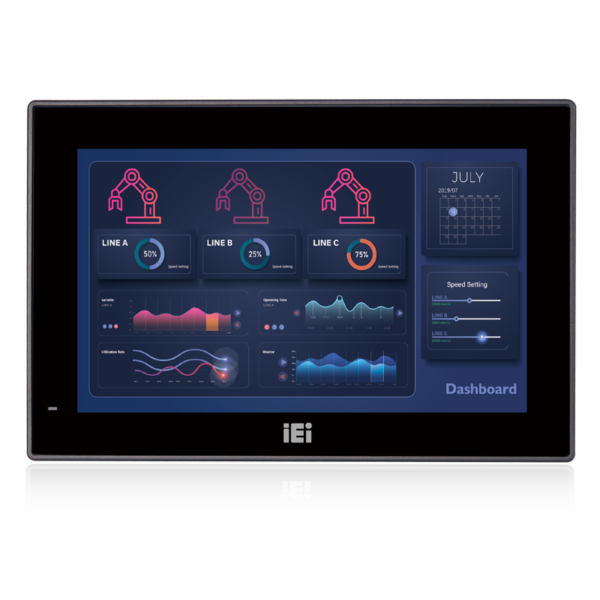

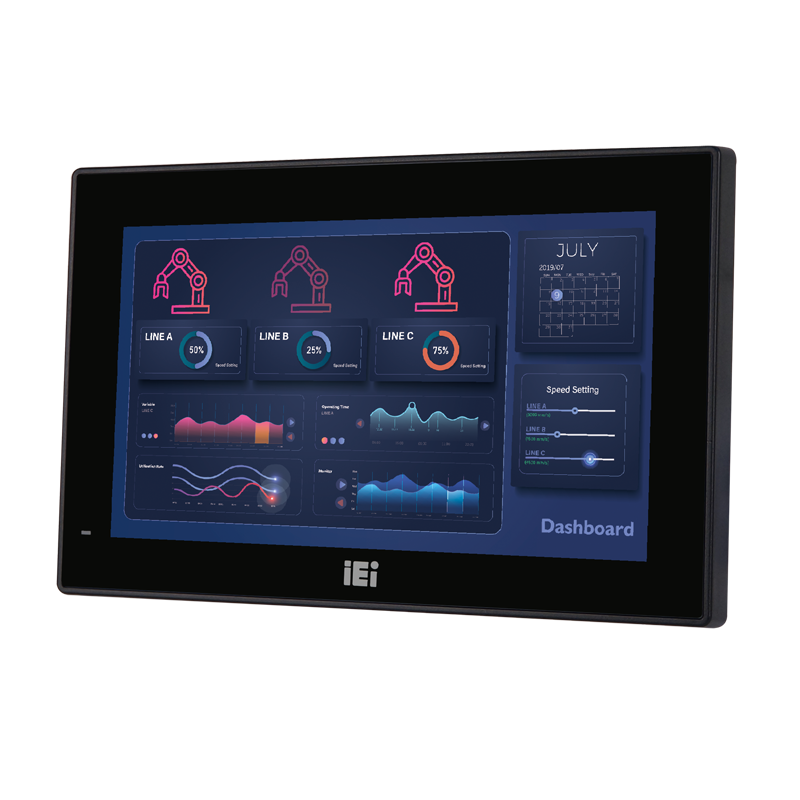

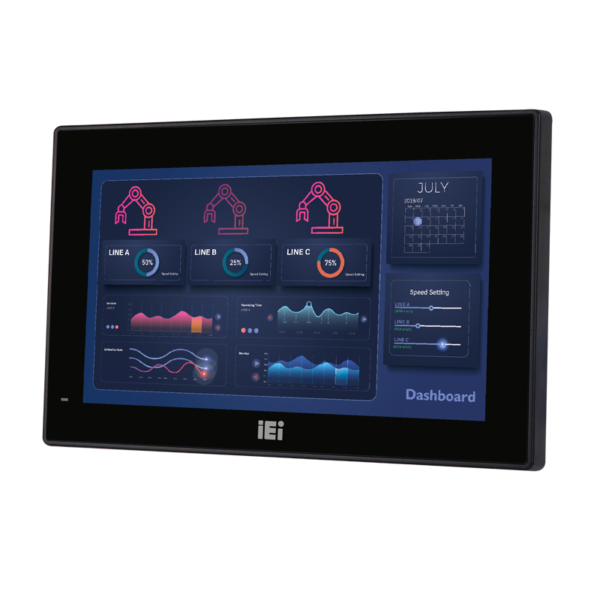

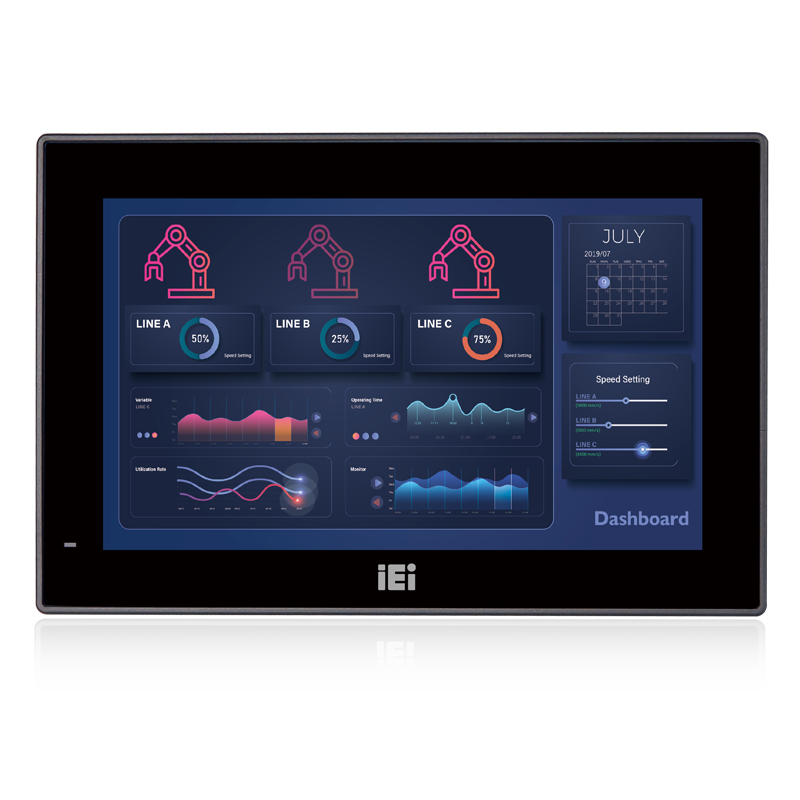

The AFL3-W07A-AL is a dual-core Intel® Celeron® processor N3350 powered flat bezel panel PC with a rich variety of functions and peripherals. The compact design is ideal for easy and simplified integration into kiosk and point-of-sales (POS) applications.

• W7” light industrial interactive panel PC
• 12V DC input with lockable DC jack
• Selectable AT/ATX power mode
• Built-in speakers
• On board IEEE802.3 at standard
• IP65 compliant front panel
• Touch screen wth anti-UV / anti-glare coating

The Intel® Celeron® N3350 is a SoC (System-on-Chip) that ensures optimal memory, graphics, and peripheral I/O support. The system comes with 4.0 GB of DDR3L SO-DIMM ensuring smooth data throughputs with reduced bottlenecks and fast system access.

Two external USB 3.1 Gen 1 ports and two external USB 2.0 ports ensure simplified connectivity to a variety of external peripheral devices. Wi-Fi capabilities and two RJ-45 Ethernet connectors provide the system with smooth connection to an external LAN. Moreover, PoE PD is supported by one of the Ethernet connectors.

AFL3-W07A-AL-N1/P/PC/4G-R10: 7″ 500cd/m2 1024×600 Panel PC with Intel® Celeron® Processor N3350 (6W) on-board Processor , on-baord POE at, 1*4GB DDR3L , 802.11a/b/g/n/ac WiFi module, PCAP touch,R10
