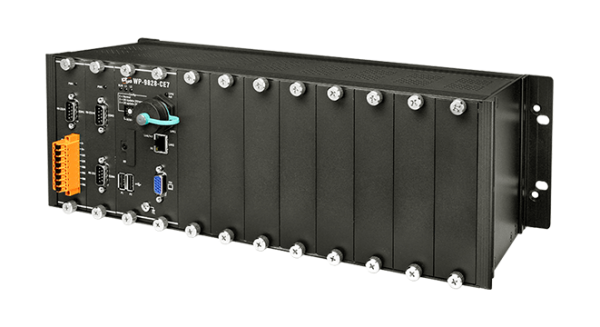

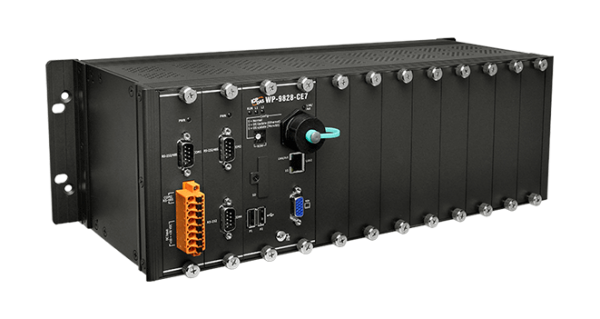

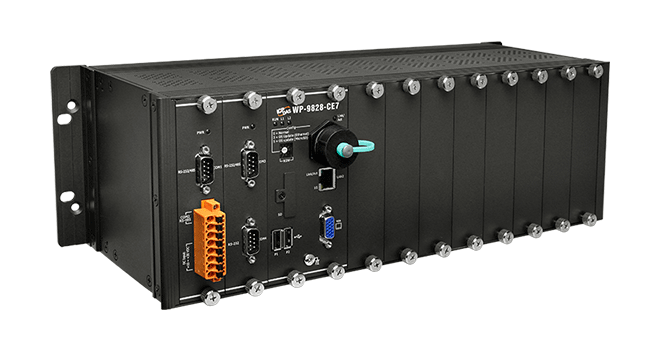

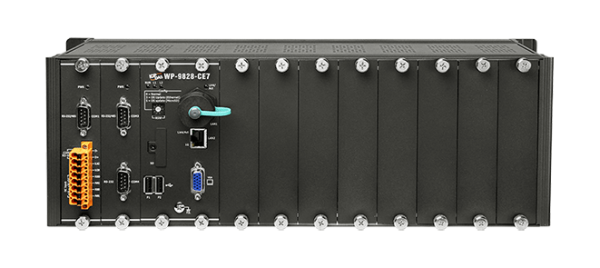

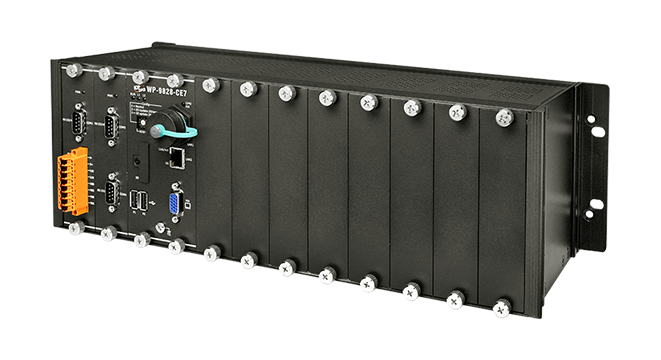

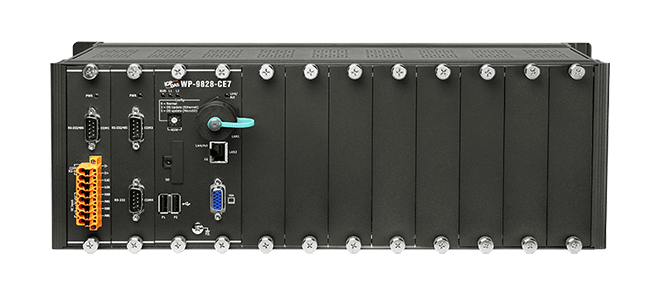

WP-9828-CE7

The Win-GRAF WinPAC-9000-CE7 Series (WP-9228-CE7/9428-CE7/9828-CE7) is the new generation Windows CE 7.0 based PAC (Programmable Automation Controller) of ICP DAS. Each WP-9000-CE7 is equipped with a Cortex-A8 (1.0 GHz) CPU running a Windows CE 7.0 operating system, a variant of input/output ports (VGA, USB, Ethernet, RS-232/485), and 2/4/8 expansion I/O slots that can be used to integrate high-performance I-9K (parallel-type) and I-97K (serial-type) series I/O modules.

  • Cortex-A8, 1GHz CPU
  • 512 MB SDRAM and 256 MB Flash
  • Windows CE 7.0
  • Embedded Win-GRAF SoftLogic (IEC 61131-3)
  • VGA Port Output
  • Modbus RTU/TCP (Master, Slave)
  • Support eLogger HMI
  • Redundant Power Inputs

The benefits of running Windows CE 7.0 on a WinPAC device include hard real-time capability, achievable deterministic control and allowing PAC can have a PC-like window displays and operating environment. The WP-9×28-CE7 series PACs are capable of running Win-GRAF (IEC 61131-3 Standard) software to develop logic control applications, and also supporting M.S. VS 2008 software (VB .NET, C#) to develop HMI and data management applications that can exchange data with Win-GRAF applications. So the application’s design is more convenient and more practical.

Win-GRAF Features:

  • Data Binding function allows exchanging data among PACs.
  • On-line Change function can make minor changes during the project is running. There is no need to call off the running program.
  • Support Online debug/ control, and Offline simulation for programs.
  • Can create customized Function Blocks using Visual Studio 2008 and run in Win-GRAF.

WP-9000 CE7 Feature:

  • Metal Enclosure
  • Power/Communication Spring Clamp Terminal Connector
  • Rugged RJ-45 Connector for LAN1

WP-9828-CE7 CR: 8-slot Win-GRAF Based PAC with Cortex-A8 CPU and WinCE 7.0 (RoHS)
