WinPAC-5000 Series

SKU 2860

The ICP DAS WinPAC-5000 Series is the new generation PAC (Programmable Automation Controller). It is equipped a PXA270 CPU (520 MHz) running a Windows CE.NET 5.0 operating system, various connectivity (VGA, USB, Ethernet, RS-232/485) and I/O expansion bus.

The WinPAC-5000 series has many advantages, including hard real-time capability, small core size, fast boot speed, interrupt handling at a deeper level, achievable deterministic control and low cost. Using Windows CE.NET 5.0 gives it the ability to run PC-based control software such as Visual Basic.NET, Visual C#, Embedded Visual C++, SCADA software, SoftPLC …etc. It give users all of the best features of both traditional PLCs and Windows capable PCs.

  • Windows CE.NET 5.0
  • Hard Real-Time Capability
  • Fast Boot Speed
  • PXA270 CPU (32-bit & 520 MHz)
  • 128 MB SDRAM & 64 MB Flash
  • Support VS.Net 2003/2005/2008 & eVC
  • 64-bit Hardware Serial Number for Software Protection
  • Audio with Microphone-In and Earphone-Out
  • I/O Expansion Bus
  • Support VGA (640 × 480 / 800 × 600)
  • Support microSD Socket
  • Dual 10/100M Ethernet Ports
  • 3 Serial Ports (RS-232/485)
  • Operating Temperature: -25 ~ +75 °C

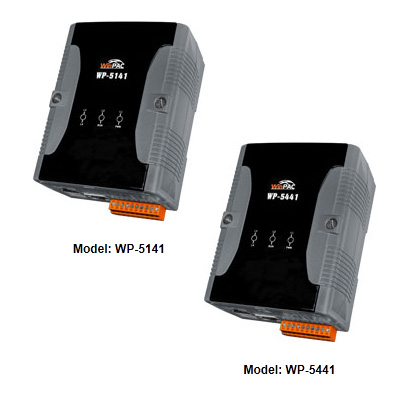

WP-5141-EN CR: Standard WinPAC-5000 (English Version of OS) (RoHS)

WP-5441-EN CR: Standard WinPAC-5000 with Audio (English Version of OS) (RoHS)
