- DM&P SoC CPU Vortex86SX- 300MHz
- 16-bit x-ISA
- 128MB DDR2 Onboard
- Watchdog Timer, Software Programmable from 30.5µ sec to 512 sec
- XGI Volari Z9s Chipset, onboard 32MB VGA Memory
- Integrated 10/100Mbps Ethernet
- Onboard 2MB SPI Flash Disk
- Support MSTI EmbedDisk Module
- Wide-Range -20°C~70°C Operation Temperature, Optional -40°C~85°C

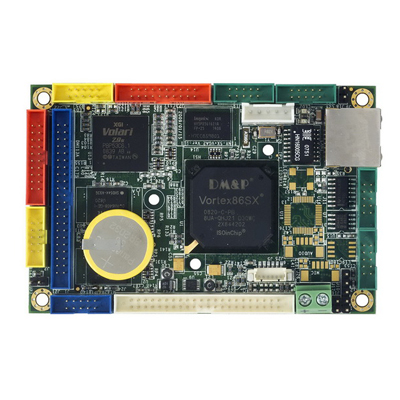

VSX-6118-V2 (300MHz)
The VSX-6118-V2 is a tiny SBC embedded board/CPU module by ICOP Technology, featuring:
- DM&P SoC CPU Vortex86SX- 300MHz
- 16-bit x-ISA
- 128MB DDR2 Onboard
- Watchdog Timer, Software Programmable from 30.5µ sec to 512 sec
- XGI Volari Z9s Chipset, onboard 32MB VGA Memory
- Integrated 10/100Mbps Ethernet
- Onboard 2MB SPI Flash Disk
- Support MSTI EmbedDisk Module
- Wide-Range -20°C~70°C Operation Temperature, Optional -40°C~85°C
Please see the product PDF for more in-depth product specifications and do not hesitate to contact us if you have any questions.
VSX-6118-V2: Vortex86SX Tiny CPU Module with 128MB DDR2
VSX-6118-V2-X: -40°C~85°C Wide Operating Temperature
