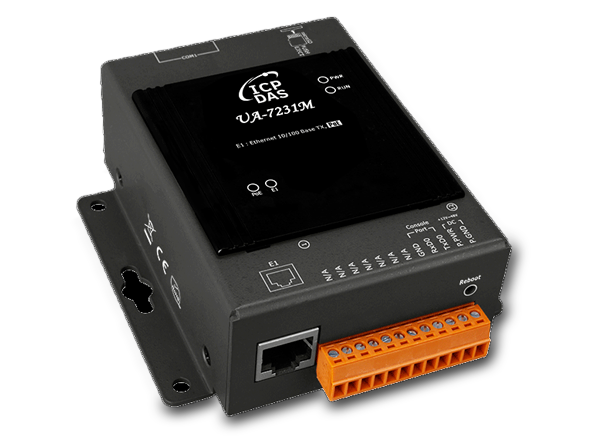

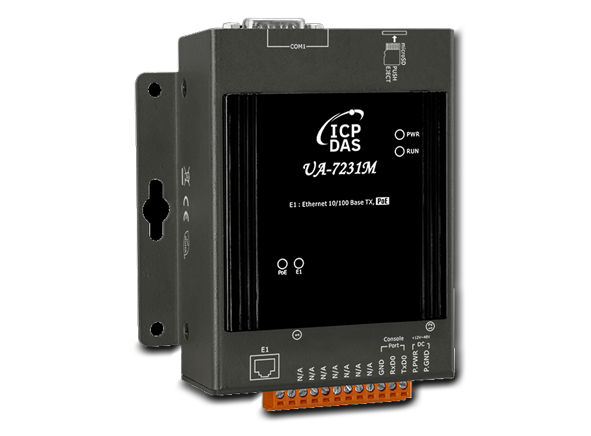

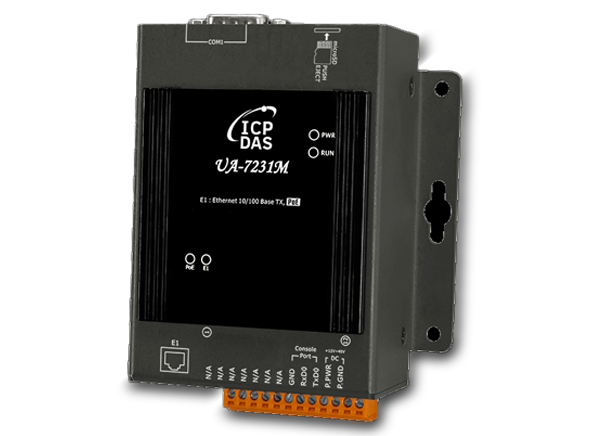

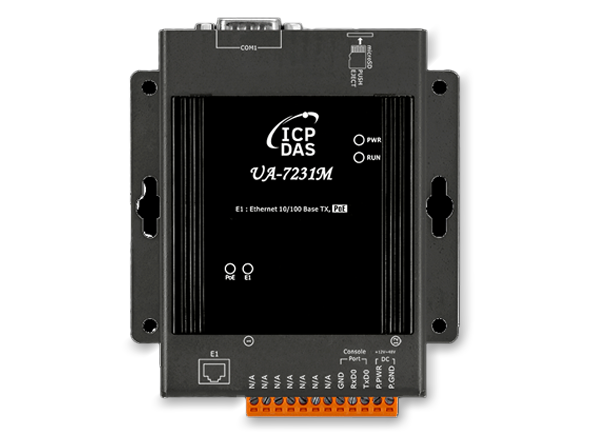

UA-7231M

IIoT Communication Server with 1 PoE Ethernet Port and 1 Serial Port (Metal Case)



KEY FEATURES:

  • Simultaneous Writing for Remote Database and Local Data Logger
  • Offline Data Recovery Mechanism for Remote Database
  • Support to Enable OPC UA and MQTT at the Same Time
  • MQTT Broker (Including WebSocket)
  • Support a Complete Information Protection Mechanism

– HTTPS, Communication Encryption, Block List

  • IoT Cloud Platform Connection

– Microsoft Azure, Amazon Web Services, IBM Bluemix, Alibaba Cloud

  • IFTTT Logic Control Triggers the APP Notification Function
  • PID Logic Operation Function

ICP Electronics Australia is proud to introduce ICP DAS UA-7231M. The ICP DAS UA-7231M is an Industrial IoT (IIoT) Communication Server designed to bridge the gap between IT and OT systems in industrial environments. Housed in a sturdy metal case, it features a Power over Ethernet (PoE) port and a serial port for versatile connectivity.

A standout feature of the UA-7231M is its ability to simultaneously support OPC UA and MQTT protocols, providing a flexible communication solution. It comes with an integrated MQTT broker, including WebSocket support, ensuring seamless data exchange. The server also incorporates robust security measures, such as HTTPS communication encryption and blocklist functions, safeguarding data integrity.

The UA-7231M serves as an IIoT gateway, enabling remote access to I/O modules and controllers using Modbus TCP/RTU/ASCII, MQTT, and EtherNet/IP. It can convert these I/O data into OPC UA or MQTT protocols, making them compatible with systems like MES, ERP, SCADA, and cloud services. The data logger function allows direct writing of I/O data into remote databases and local storage for historical records.

Compatible with leading cloud platforms like Microsoft Azure, AWS, and IBM Bluemix, and supporting IFTTT logic for app notifications, the UA-7231M simplifies IIoT deployment, enhancing operational efficiency.

Ordering Information

PRODUCT SERIES DESCRIPTION QNT. INQUIRY
UA-7231M     CR  IIoT Communication Server with 1 PoE Ethernet Port and 1 Serial Port (Metal Case) (RoHS)
