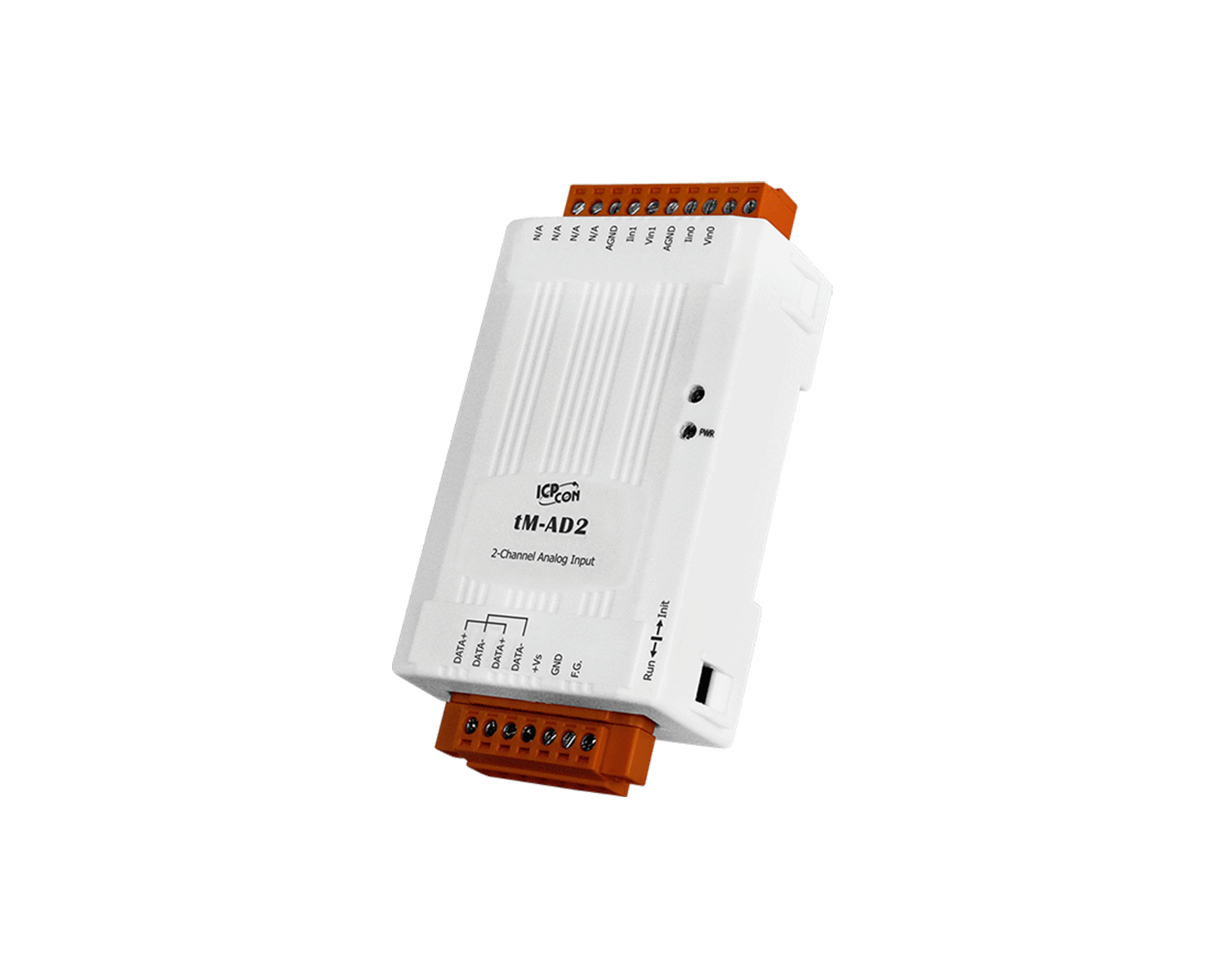

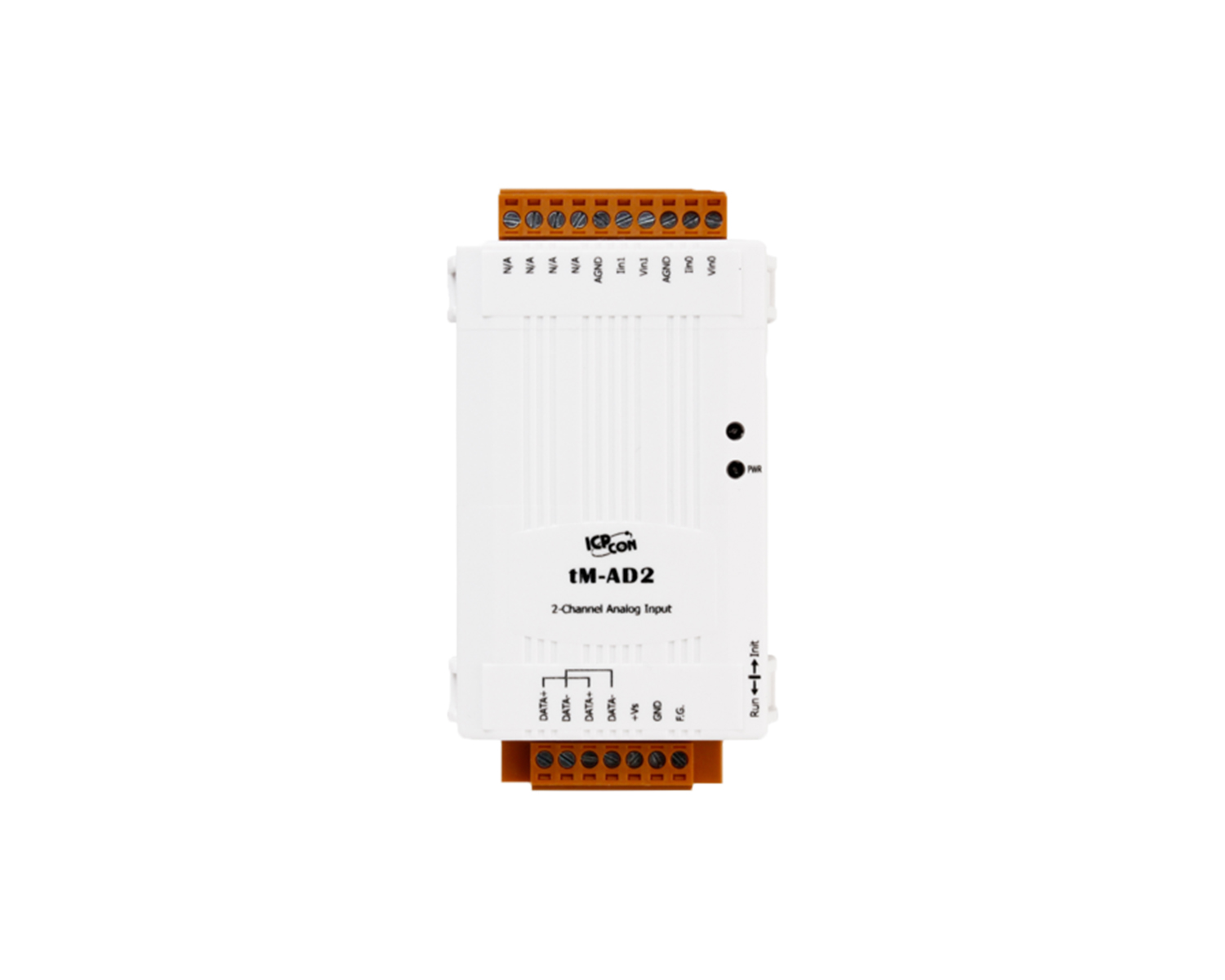

tM-AD2

an analog input module that includes 2 single-ended analog input channels and provides a programmable input range on all analog inputs (0 ~ 500 mV, 0 ~ 1 V, 0 ~ 2.5 V, 0 ~ 5 V, 0 ~ 10 V, 0 ~ 20 mA, 4 ~ 20 mA)

KEY FEATURES:

  • 2-Channel Single-Ended Inputs
  • Voltage Inputs and Current Inputs
  • 120 VDC Overvoltage Protection
  • Resolution: 14/12 Bits
  • Adjustable Sampling Rate
  • 4 kV ESD and EFT Protection
  • 3 kV Surge Protection
  • Dual Watchdog
  • 2500 VDC Intra-module Isolation
  • Cost-Effective
tM-AD2     CR  2-channel Isolated Analog Input Module with High Voltage Protection (RoHS)
