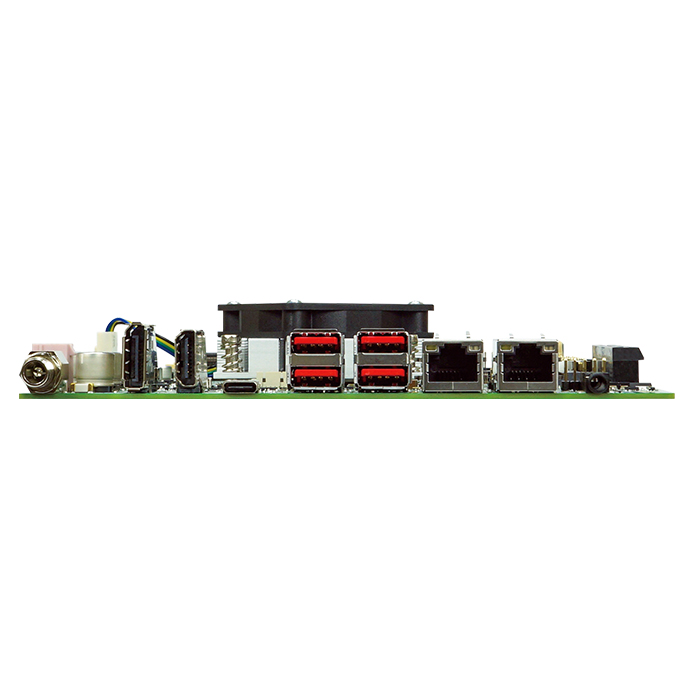

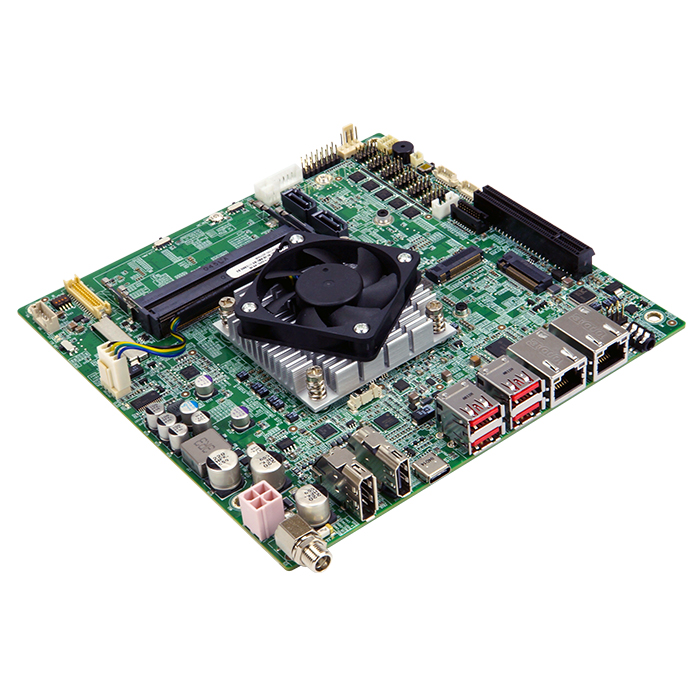

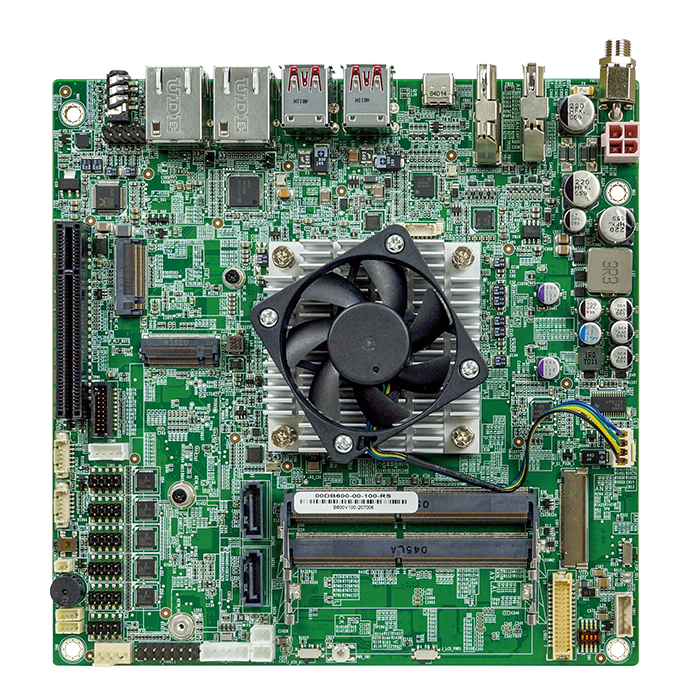

tKINO-ULT6

tKINO-ULT6 is a Low Profile Mini-ITX SBC that supports the 11th Gen. Intel® Core™ Processor Family (Tiger Lake-UP3), 9~36V DC input, Quadruple Independent Displays, SATA 6Gb/s ports, Dual Intel® 2.5GbE, USB4, 4x USB 3.2 Gen 2, M.2, HD audio, and TPM 2.0.

KEY FEATURES:

  • Low Profile Mini-ITX Form Factor with 11th Gen. Intel® Tiger Lake-UP3 Processor
  • Support DDR4-3200 memory
  • Wide Range 9~36V DC Input
  • Supports Quadruple Independent Displays (HDMI, DP, eDP/LVDS, USB4)
  • Dual Intel® 2.5GbE LAN
  • 2 A Key for WIFI+Bluetooth (PCIe x1/USB 2.0), M.2 M Key for Storage (PCIe x2/SATA)
  • PCIe x8 Gen 4.0 (x4 signal) Expansion Slot
  • IEI Integration
